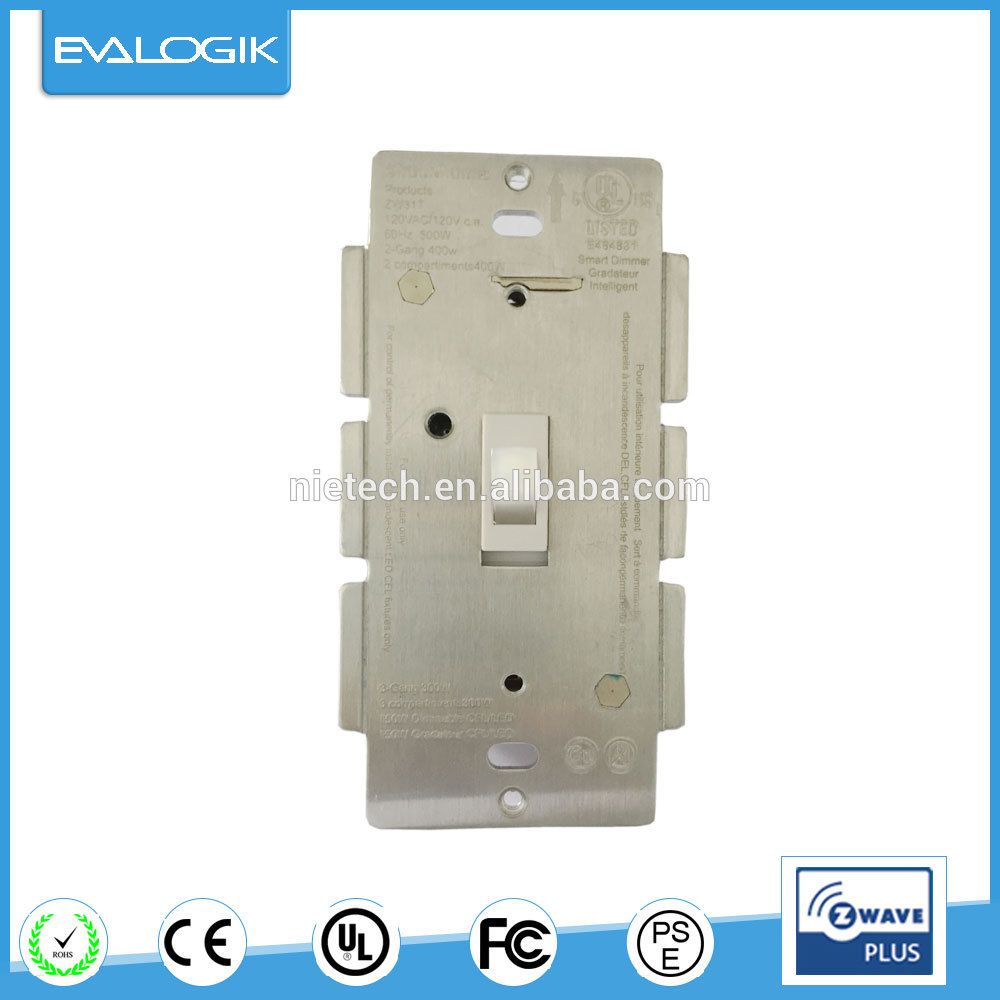

Smart Home on/off Toggle Switch with Z-Wave

Name: Smart Home on/off Toggle Switch with Z-Wave
Brand: all-electronics-online.com
SKU: 819905255
Availability: InStock
Rating: 4.3 (51 reviews)

Price:	US $ 19-48/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

The Wall Mounted Switch is a component of the lighting control system. Wire the Wall Mounted Switch in place of a standard wall switch. Inclusion of this Switch allows remote ON/OFF control of loads connected. This Wall Mounted Switch is designed to work with other Z-Wave enabled devices. Z-Wave nodes of other types can be added to the system and will also act as repeaters.

Installation
1. Before installation ensure that the voltage supply is disconnected.
2. Connect switch module as shown on above diagram.
3. Connect the device in accordance with the wiring diagram presented in Wiring diagram. Switch on 120V of the mains voltage.
4. For "Add" in a network: Put the Z-wave interface controller into "Add" mode, and following its instruction to add the device to your controller. To get in the "Add" mode, the distance between wall-mounted switch and controller is suggested to be in one meter. Quickly pressing the learn switch of ZW30T/31T three times for 1 second at least & release to be included.
5. For "Remove" from a network: set up the Z-wave interface controller into "Remove" mode, and following its instruction to delete the ZW30T/31T from your controller. Press the learn switch of ZW30T/31T three times for 1 second at least &release to be excluded.

Maintenance
The devices are maintenance-free, so never open them. The guarantee becomes void when you open the appliance. Only clean the outside of the devices with a soft, dry cloth or a brush. Prior to cleaning, remove the devices from all voltage sources.

NOTE
Do not use any carboxylic cleaning agents or petrol, alcohol or similar. These will attack the surface of devices. Besides, the vapors are hazardous to your health and explosive. Do not use any sharp edged tools, screw drivers, metal brushes or similar for cleaning.
Warranty 1 year

Shipping &Packing

Company Information

Prod Model:	ZW30T
Operating Voltage:	120VAC/60Hz
Maximum Load:	1800 Watts
Potocol:	Z-Wave Plus Protocol
Range:	Min 30m Line of Sight
Z-Wave Chip:	500W
Frequency:	908.42MHz
Net Weight:	30g
Relay:	15A
