| Prod Model: |
HP9116C PLUS 10-20KVA |
| UPS: |
High Frequency Online UPS |
| Capacity: |
1-20kVA |
| Output Power Factor: |
0.9 |
| Standard Model / Long Time Model: |
Online UPS |
| Rated Frequency: |
40-70Hz |
| Efficeiency: |
>94% |
| RS232,USB,Snmp Card: |
Optional |
| Bypass Model: |
Available |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Brand: |
Sorotec |
Product Description

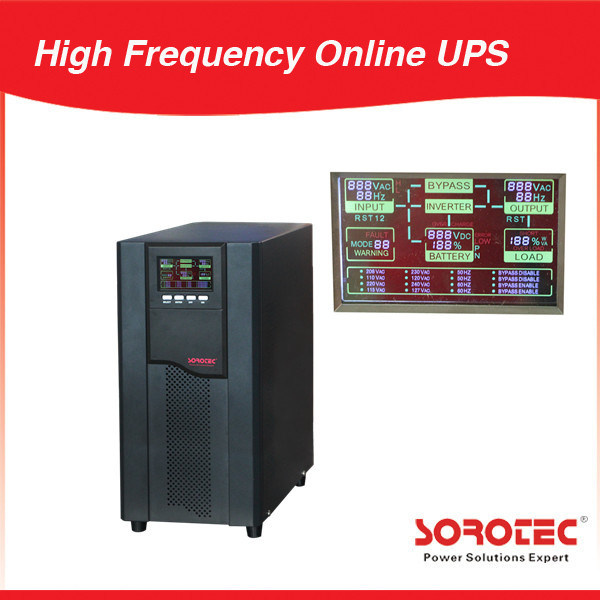

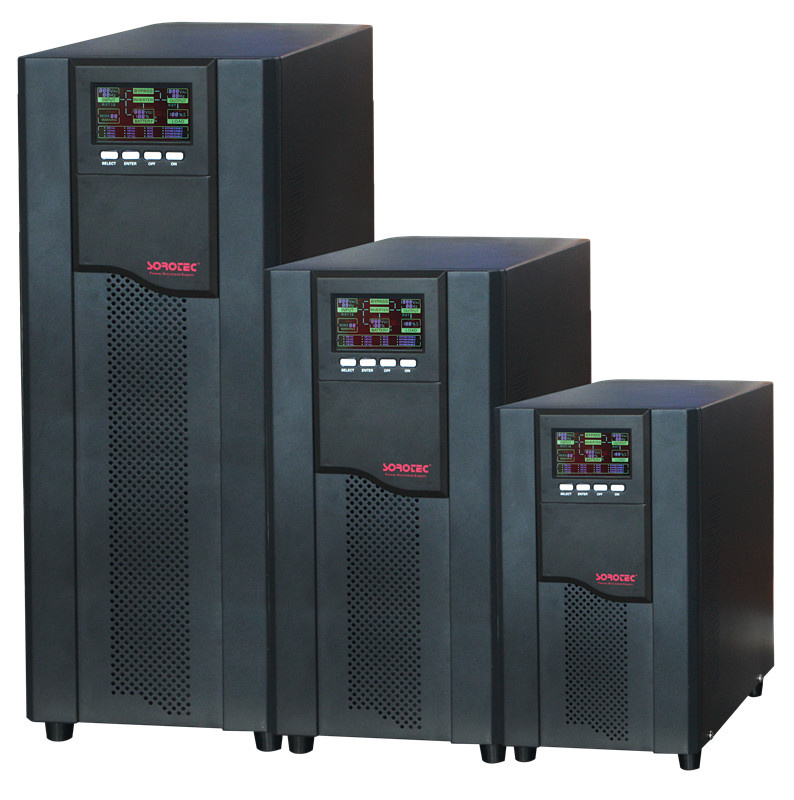

SOROTEC HP9116C/HP9316C PLUS 1-20K Series 3 Phase High Frequency Online UPS
Typical application
Data centre, bank station, network , communication equipment, office, automatic equipment,
monitor equipment, control system
Highly flexible and extendable
Battery can choose
1.Battery voltage can be choice depend on capacity , can satisfy different requirement.
2.Convenience to get more back up time and lower system invests
3.Convenience to save cost of battery
4.Intelligent battery monitors Charge current can be adjust
5.Standant charge current 4A
6.Support more discharge time and more capacity battery for 8A charger Input topology design
7.Support three phase input or single phase input for three phase UPS
8.Super wide input voltage and frequency range suitable for bad power electirc environment
9.Digital control DSP technology and best power component make the system safe and reliable
Multifunction friendly design
Advanced parallel technology
1.Stable parallel control technology make sure current sharing to 1%
2.Select trip technology can avoid and isolation system fault then improved system availability
3.Flexible extension capacity and redundance management that can satisfy all kinds of requirements
4.Support maximum 3 units for parallel working Flexible strategy
5.On line mode provides higher system availability
6.High efficiency mode provides more economic operation
7.Frequency conversion provides more stable output
Higher function
Output power factor up to 0.9
1.Output power factor is 0.9 that mean can take more load, if you take same load that can get higher reliability.Input power factors up to 0.99
2.Three phase input model support three phase PFC , input THDI<5%
3.Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.
The efficiency up to 94%
4.Efficiency up to 93.5%when take the 30%load
5.ECO mode efficiency up to 98%
Technical Parameters
| Model | HP9116C/HP9316C 10-20KVA PLUS |
| 10KT-XL | 15KT-XL | 20KT-XL |
| Rated Power | 10KVA/9KW | 15KVA/13.5KW | 20KVA/18KW |
| Rated Voltage | 220VAC/380VAC 3phase with ground |
| Rated Frequency | 40-70 Hz (50/60 Auto-sense) |
| Input |
| Voltage Range | Single phase: 120 ~ 275VAC ( 176-275VAC full load ) Three phase: 209-475VAC ( 304-475VAC full load) |
| Power Factor | >0.95(Three phase) | ≥0.99 |
| Output |
| Voltage Regulation | 208/220/230/240VAC (±1%) |
| Frequency Regulation | 50/60HZ±0.05 Hz |
| Power Factor | 0.9 |
| Voltage Distortion | Linear load<2% ,Non-Linear load<5% |
| Overload Capability | 105% ~ 125% for 10min; 125% ~ 150% for 30s,>150% for 500 ms |
| Current Crest Ratio | 3:01 |
| Transfer Time | 0ms (AC mode→Battery mode) |
| Battery |
| DC Voltage | 192VDC | 192/216V/240VDC |
| Recharge Current | 4A | 4A (8A optional) |
| Display |

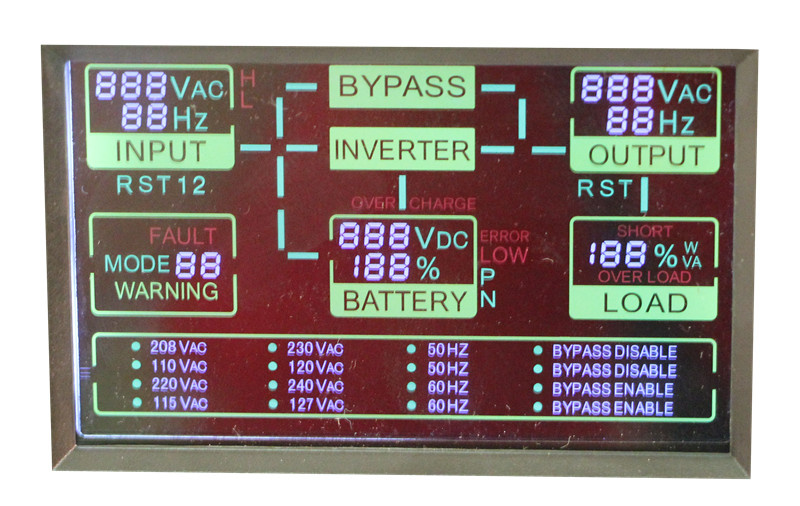

| LCD | Display input/output Voltage, Frequency, Battery voltag, Battery capacity, Loading rate. |
| Communication |
| Interface | Smart RS232,SNMP card (optional) USB (optional) |
| Environment |
| Operation Temperature | 0~40ºC |
| Humidity | 0~95% (Non-condensing) |
| Storage Temperature | -25ºC~55ºC |
| Sea Level Elevation | <1500m |
| Noise Level (1m) | <55dB |
| Physics Characteristic |
| Weight(KG) | 16.9 | 31 |
| Dimensions :(Wx D x H)mm | 212X420X500 | 248X565X500 |
