Spp Series with PTC Thermistor Black Pump Motor Capacitor

Name: Spp Series with PTC Thermistor Black Pump Motor Capacitor
Brand: all-electronics-online.com
SKU: 802015085
Availability: InStock
Rating: 4.3 (38 reviews)

Price:	US $ 1-3.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

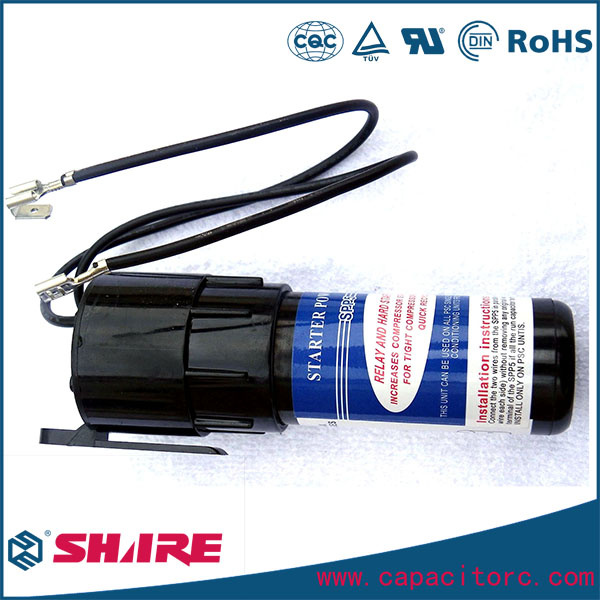

SPP Series with PTC Thermistor Black Pump Motor Capacitor

RCO410/810 Features:
1.Combination relay,overload and capacitor.
2.Pre-wired for easy installation.
3.Extra long compressor leads for mounting flexibility.
4.All models adapt to 115 volt compressors with external overload protector.
5.PTC for capillary or fixed restrictor systems.

SPP5/SPP6 Features:
1.Increase compressor starting torque for faster recycling
2.For all permanent split capacitor,single phase air conditioning and heat pump sistems.
3.Wired with "Piggy-Back" terminals for easy installation on run capacitors.
4.Designed for 115 volt thru 277 volt systems.
5.Mounts easily with either screw or clip.

Specifications:

1.For all PSC A/C units from 4,000 thru 120,000 BTU's (1/2 thru 10HP).

2.Residential and commercial PSC A/C units and heat pumps.

3.Can be used on 115 thru 277 VAC units.

4.For low voltage and hard starting compressors.

5.Room A/C units.

Related Products :
1.Capacitor,motor start capacitor,Start Capacitor,Motor starting capacitor,CD60 Capacitor,Aluminum Electrolytic Capacitor,Electrolytic Capacitors,Electronic Component,Refrigerator Parts,Capacitor for Refrigerator,CD60 Capacitor for Refrigerator,CD60 Motor Start Capacitors- Bakelite Shell,CD60 Motor Start Capacitors,capacitors for compressor,non-polarized aluminum electrolytic capacitors,capacitors for starting fractional horsepower,capacitors for single-phase electric motors,Refrigerating compressor capacitor,Capacitor for refrigerating compressor,Single Phase Motor Start CD60 Capacitor Bank

2.Capacitor,film capacitor,air conditioner capacitors,motor run capacitor,motor running capacitor,AC motor capacitor,ceiling fan capacitor,washing machines capacitors,microwave oven capacitor,motor capacitor,air conditioning capacitor,motor running capacitor,metallized polypropylene film capacitor,AC capacitor,single phase ac motor capacitor,capacitor for house hold appliances, power supply capacitor,refrigerator capacitor,CBB65 capacitor for refrigerator,capacitor bank

Prod Model:	SPP
UL:	E357070
Type:	Aluminum Electrolytic Capacitor
Application:	Refrigerators,Compressors,Air Cooler
Package Type:	Through Hole
Capacitance:	21-1410mfd
