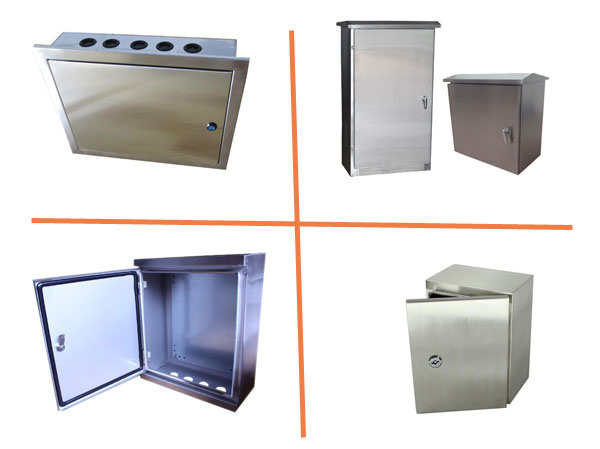

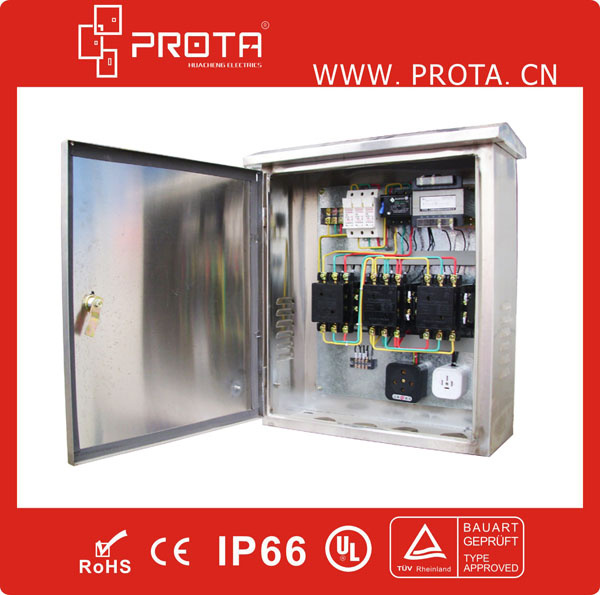

Stainless Steel Electrical Distribution Enclosure

Name: Stainless Steel Electrical Distribution Enclosure
Brand: all-electronics-online.com
SKU: 769231465
Availability: InStock
Rating: 4.8 (33 reviews)

Price:	US $ 20-450/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	PTX
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	SUS304L&SUS316L Stainless Steel
Surface Finish:	Wire Drawing Finish
Color:	Silver
Thickness:	1.2mm&1.5mm
Wether OEM:	Yes
Type:	Distribution Metering Box
Structure:	Protection
Certification:	ISO9001:2008,RoHS
Application Range:	Electrical Distribution
Shell Protection Grade:	IP66
Brand:	Prota

Product Description

Material:
AISI 304L or 316L stainless steel
Enclosure:1.2mm-1.5mm
Door: 1.2mm-1.5mm
Mounting plate:2.0mm

Surface finish:
Enclosure and door: AISI304L or AISI316L
Mounting plate:Zinc-plated

Protection:
Protection degree:IP66
Impact resistaance:IK10

Supply includes:
Enclosure,door ,gland plate with sealing gasket,door with lock.

Craftsmanship characteristics
1. The foam PU sealing gasket makes sure the protection grade of box reaching IP66 level.
2. The extended border of box, hinges ensure the high intensity of box system
3. The galvanized mounting plate and the high intensity installation support bars ensure the liability of installation devices (can be used as the wiring)
4. The gland plate makes the very convenience and flexibility of inlet and outlet wiring cables
5. Wire drawing finish on the surface (sand blast can be applied inside the box for the high quality)
6.The wall mounting brackets can welded on the body as the picture.

Selection Table

Model No.	H(mm)	W(mm)	D(mm)
PTX2 215	200	200	150
PTX3 215	300	200	150
PTX3 315	300	300	150
PTX4 315	400	300	150
PTX5 315	500	300	150
PTX5 415	500	400	150
PTX6 415	600	400	150
PTX6 515	600	500	150
PTX7 515	700	500	150
PTX8 615	800	600	150

PTX3 2520	300	250	200
PTX3 320	300	300	200
PTX4 420	400	400	200
PTX5 520	500	500	200
PTX6 620	600	600	200
PTX7 620	700	600	200
PTX8 620	800	600	200
PTX8 820	800	800	200
PTX10 1020	1000	1000	200
PTX12 1020	1200	1000	200

PTX3 2525	300	250	250
PTX4 325	400	300	250
PTX5 325	500	300	250
PTX5 425	500	400	250
PTX6 425	600	400	250
PTX7 525	700	500	250
PTX8 625	800	600	250
PTX9 625	900	600	250
PTX10 825	1000	800	250
PTX10 1025	1000	1000	250
PTX12 825	1200	800	250
PTX12 1225	1200	1200	250
PTX14 1025	1400	1000	250

PTX4 330	400	300	300
PTX5 530	500	500	300
PTX6 430	600	400	300
PTX7 630	700	600	300
PTX8 630	800	600	300
PTX9 630	900	600	300
PTX12 1030	1200	1000	300

PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: Metal wall mounting enclosures, top stainless steel enclosures, floor standing cabinets, knock-down cabinets, network cabinets, terminal boxes, MCB boxes, gland boxes, telephone boxes and so on.

As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed RoHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & RoHS certificates were issued by TUV lab in Shanghai China.

We have always insisted on follow the clients' needs, complied with the convenient, practical, safe and beautiful perspective of development and production since the establishment, so far we've well received favorable comments at home and abroad. We also undertake OEM, ODM production, welcome letter Call Advisory.
