Stainless Steel Industry Tension-Testing Weighing Load Cells with High Accuracy
| Price: |
US $ 1-200/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |

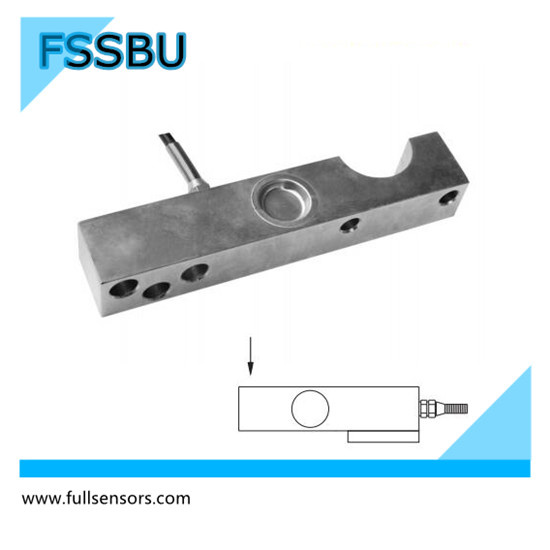

Stainless Steel Industry Tension-testing Weighing Load Cells with High Accuracy1. Shear beam load cells is made of Alloy steel or stainless steel, sealed by adhesive inside, oil-proof,
waterproof and anti-corrosion, suitable for all kinds of environment.2. S
hear beam weighing sensors, easy for installation, suitable for electronic platform scales,
hopper scales and other electronic weighing devices.
3. Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.
4. Many Capacity: 100, 250, 500, 850kg
.
5. High accuracy, low profile, used for industry tension-testing, mechanism counting equipment.
6. With OIML & NTEP
approval. | Item | Unit | Parameters |
| Accuracy class | | D1 |
| Maximum capacity (Emax) | kg | 100, 250, 500, 850 |
| Minimum LC verification interval (Vmin) | % of Emax | 0.0200 |
| Sensitivity (Cn) / Zero balance | mV/V | 2.0 ± 0.002/0 ± 0.02 |
| Temp. effect on zero balance (TK0) | % of Cn/10K | ±0.02 |
| Temp. effect on sensitivity (TKc) | % of Cn/10K | ±0.02 |
| Hysteresis error (dhy) | % of Cn | ±0.1000 |
| Non-linearity (dlin) | % of Cn | ±0.0500 |
| Creep (dcr) over 30 min | % of Cn | ±0.030 |
| Input (RLC) & Output resistance (R0) | Ω | 400±10 & 352±3 |
| Nominal range of excitation voltage (Bu) | V | 5~12 |
| Insulation resistance (Ris) at 50Vdc | MΩ | ≥5000 |
| Service temp. range (Btu) | ºC | -30----+70 |
| Safe load limit (EL) & Breaking load (ED) | % of Emax | 120 & 200 |
| Protection calss according to EN 60 529 (IEC 529) | | 100kg~250kg: IP67
500kg~850kg: IP68 |
Material: Measuring element
Cable fitting
Cable sheath | | Alloy steel or stainless steel
Stainless steel or nickel-plated brass
PVC |
| Maximum capacity (Emax) | kg | 100, 250, 500, 850 |
| Deflection at Emax(snom),approx | mm | <0.65 |
| Weight (G), approx | kg | 1.5 |
| Cable Diameter: ø5mm,Length | m | 1.5 |
Varieties of products related to load cells as below, that meet all your needs, and save your time, welcome to browse our website to get more surprises.

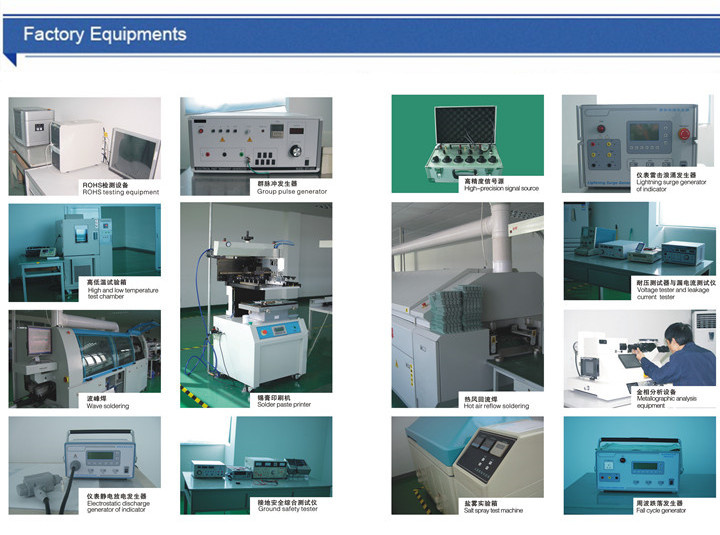

So many kinds of test equipments are used for pre-shipment inspection, in order to make sure all performance of our products reaches the optimal standard.
>>> Independent small inner box is used to protect each product;
>>> Then 6-10 pcs inner boxes place in a carton with bandage;
>>> Several cartons place on a pallet, easy to unload cargo;
>>> Last but not least, all cartons are wrapped with moistureproof plastic wrap,it's strongly necessary for goods shipped by sea.
DHL, UPS, EMS, TNT ect Express and by air or by sea, any shipping method is available, and we will account price and haulage time of each way for your selection before placing order.
CE, RoHs, ISO9001, OIML etc certificates, ensure products with high-class quality for all customers.
Any other questions please do not hesitate to contact us anytime!
