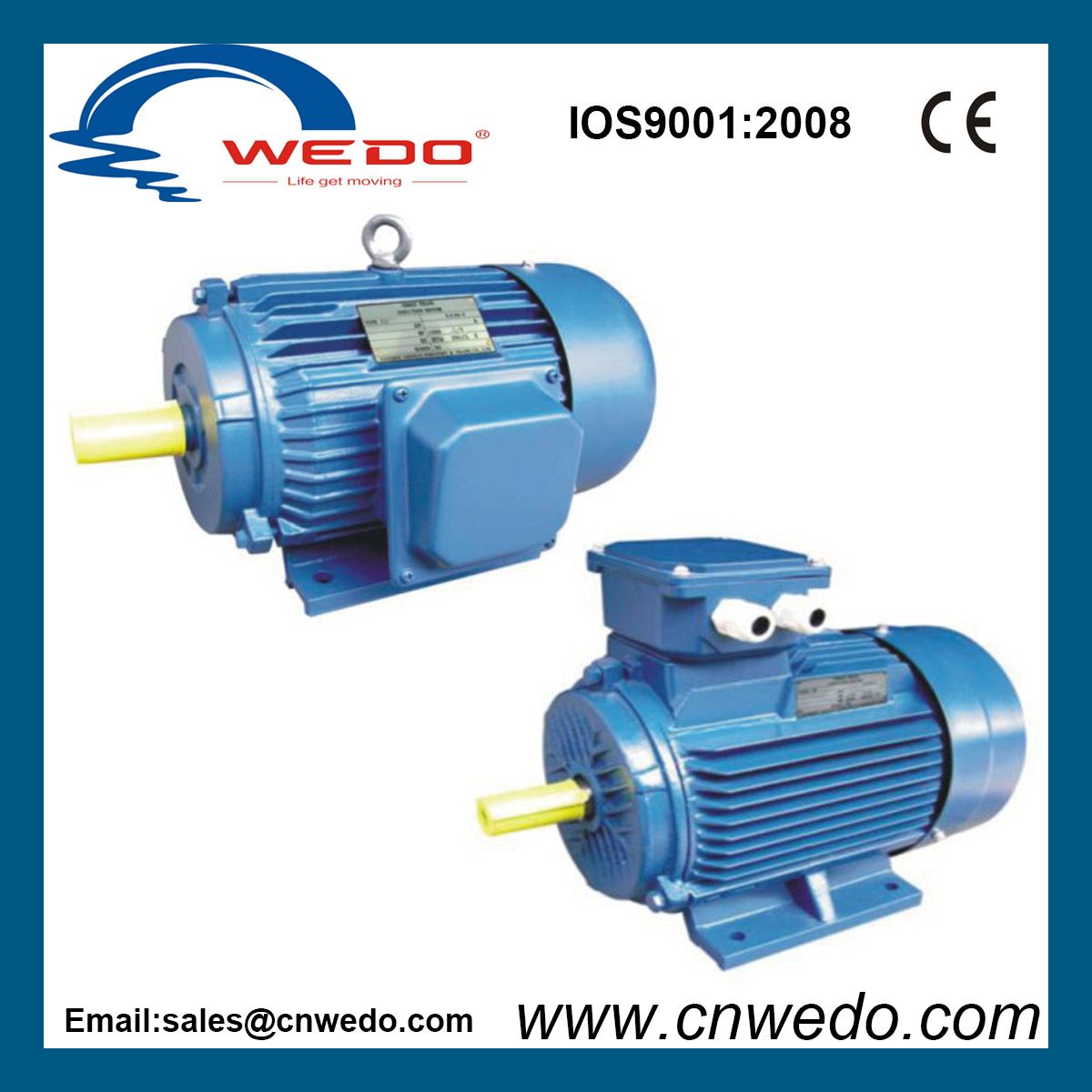

Three Phase Pole-Changing Multi-Speed Asynchronous Electric Motor (Yd Series)

Name: Three Phase Pole-Changing Multi-Speed Asynchronous Electric Motor (Yd Series)
Brand: all-electronics-online.com
SKU: 723031232
Availability: InStock
Rating: 4.6 (46 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Yd Series
Altitude:	Not Exceeding 1000m
Rated Voltage:	380(1±5%)V
Ambient Temperature:	-15 ~ 40 Degree Centigrade
Application:	Industrial
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Rotor Structure:	Winding Type
Casing Protection:	Protection Type
Starting Mode:	Variable Frequency Starting
Species:	Yd Series Three-Phase
Number Of Poles:	2, 4, 6, 8
Certification:	ISO9001, CCC, Ce, CQC, ISO14001
Brand:	Wedo

Product Description

YD Series Pole-changing Multi-speed Three Phase Asynchronous Electric Motor

Operating Conditions

Ambient temperature: -15ºC < Θ < 40ºC
Altitude: not exceeding 1000m
Rated voltage: 380(1±5%)V

Technical Data

FAQ

Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, but for the first time cooperation, we accept trial sample order is OK to check quality.

Frame size		Speed (r/min)	Output (kw)	Current (A)	Eff. (%)	Power Factor(%)	Ist/In	Tstar /Tn
YD801	4	1420	0.45	1.4	66	0.74	6.5	1.5	1.8
YD801	2	2860	0.55	1.5	65	0.85	7	1.6	1.8
YD802	4	1420	0.55	1.7	68	0.74	6.5	1.5	1.8
YD802	2	2860	0.75	2.0	66	0.85	7	1.6	1.8
YD90S	4	1430	0.85	2.3	74	0.77	6.5	1.5	1.8
YD90S	2	2850	1.1	2.8	73	0.84	7	1.6	1.8
YD90L	4	1430	1.3	3.3	76	0.78	6.5	1.5	1.8
YD90L	2	2850	1.8	4.3	74	0.84	7	1.6	1.8
YD100L1	4	1430	2	4.8	78	0.81	6.5	1.5	1.8
YD100L1	2	2850	2.4	5.6	76	0.86	7	1.6	1.8
YD100L2	4	1430	2.4	5.6	79	0.83	6.5	1.5	1.8
YD100L2	2	2850	3	6.7	77	0.89	7	1.6	1.8
YD112M	4	1450	3.3	7.4	81	0.83	6.5	1.5	1.8
YD112M	2	2860	4	8.6	80	0.88	7	1.6	1.8
YD132S	4	1450	4.5	9.8	83	0.84	6.5	1.5	1.8
YD132S	2	2860	5.5	11.9	79	0.88	7	1.6	1.8
YD132M	4	1450	6.5	13.8	84	0.85	6.5	1.5	1.8
YD132M	2	2880	8	17.1	80	0.89	7	1.6	1.8
YD160M	4	1460	9	18.5	87	0.85	6.5	1.5	1.8
YD160M	2	2920	11	22.9	82	0.89	7	1.6	1.8
YD160L	4	1460	11	22.3	87	0.86	6.5	1.5	1.8
YD160L	2	2920	14	28.8	82	0.90	7	1.6	1.8
YD180M	4	1470	15	29.4	89	0.87	6.5	1.5	1.8
YD180M	2	2940	18.5	36.7	85	0.90	7	1.6	1.8
YD180L	4	1470	18.5	35.9	89	0.88	6.5	1.5	1.8
YD180L	2	2940	22	42.7	86	0.91	7	1.6	1.8
YD200L	4	1470	26	49.9	89	0.89	6.5	1.4	1.8
YD200L	2	2950	30	58.3	85	0.92	7	1.4	1.8
YD225S	4	1480	32	60.7	90	0.89	6.5	1.4	1.8
YD225S	2	2960	37	71.7	86	0.92	7	1.4	1.8
YD225M	4	1480	37	69.4	91	0.89	6.5	1.4	1.8
YD225M	2	2960	45	86.4	87	0.92	7	1.4	1.8
YD250M	4	1480	45	84.4	91	0.89	6.5	1.4	1.8
YD250M	2	2960	55	103.2	88	0.92	7	1.4	1.8
YD280S	4	1480	60	111.3	91	0.90	6.5	1.4	1.8
YD280S	2	2970	72	135.1	88	0.92	7	1.4	1.8
YD280M	6	1480	72	133.6	91	0.90	6.5	1.4	1.8
YD280M	4	2970	82	152.2	88	0.93	7	1.4	1.8
YD90S	6	920	0.65	2.2	64	0.70	6	1.4	1.8
YD90S	4	1420	0.85	2.3	70	0.79	6.5	1.3	1.8
YD90L	6	930	0.85	2.8	66	0.70	6	1.4	1.8
YD90L	4	1420	1.1	3.0	71	0.79	6.5	1.3	1.8
YD100L1	6	940	1.3	3.8	74	0.70	6	1.4	1.8
YD100L1	4	1440	1.8	4.4	77	0.80	6.5	1.3	1.8
YD100L2	6	940	1.5	4.3	75	0.70	6	1.4	1.8
YD100L2	4	1440	2.2	5.4	77	0.80	6.5	1.4	1.8
YD112M	6	960	2.2	5.7	77	0.75	6	1.4	1.8
YD112M	4	1440	2.8	6.7	77	0.82	6.5	1.3	1.8
YD132S	6	960	3	7.7	79	0.70	6	1.4	1.8
YD132S	4	1440	4	9.5	80	0.82	6.5	1.3	1.8
YD132M	6	960	4	9.8	81	0.76	6	1.4	1.8
YD132M	4	1440	5.5	12.3	80	0.85	6.5	1.3	1.8
YD160M	6	970	6.5	15.1	84	0.78	6	1.4	1.8
YD160M	4	1460	8	17.4	83	0.85	6.5	1.3	1.8
YD160L	6	970	9	20.6	85	0.78	6	1.4	1.8
YD160L	4	1460	11	23.4	84	0.85	6.5	1.3	1.8
YD180M	6	980	11	25.9	85	0.78	6	1.4	1.8
YD180M	4	1470	14	29.8	85	0.85	6.5	1.3	1.8
YD180L	6	980	13	29.4	86	0.78	6	1.4	1.8
YD180L	4	1460	16	33.6	85	0.85	6.5	1.3	1.8
YD200L	6	980	18.5	41.4	87	0.78	6	1.4	1.8
YD200L	4	1460	22	44.7	87	0.86	6.5	1.3	1.8
YD225S	6	980	22	44.2	88	0.86	6.5	1.4	1.8
YD225S	4	1470	28	56.2	87	0.87	7	1.3	1.8
YD225M	6	980	26	52.2	88	0.86	6.5	1.4	1.8
YD225M	4	1470	34	66.0	87	0.90	7	1.3	1.8
YD250M	6	980	32	62.1	90	0.87	6.5	1.4	1.8
YD250M	4	1470	42	74.7	88	0.91	7	1.3	1.8
YD280S	6	980	42	81.5	90	0.87	6.5	1.4	1.8
YD280S	4	1480	55	104.2	89	0.90	7	1.3	1.8
YD280M	6	680	55	106.7	90	0.87	6.5	1.4	1.8
YD280M	4	1420	72	138.1	89	0.89	7	1.3	1.8
YD90L	8	700	0.45	1.9	58	0.63	5.5	1.5	1.8
YD90L	4	1420	0.75	1.92	72	0.87	6.5	1.5	1.8
YD100L	8	700	0.85	3.1	68	0.63	5.5	1.5	1.8
YD100L	4	1420	1.5	3.5	75	0.88	6.5	1.5	1.8
YD112M	8	700	1.5	5.0	72	0.63	5.5	1.5	1.8
YD112M	4	1420	2.4	5.3	78	0.88	6.5	1.5	1.8
YD132S	8	720	2.2	7.0	75	0.64	5.5	1.5	1.8
YD132S	4	1440	3.3	7.1	80	0.88	6.5	1.5	1.8

Frame size		Speed (r/min)	Output (kw)	Current (A)	Eff. (%)	Power Factor(%)	Ist/In	Tstar /Tn
YD132M	8	720	3	9.0	78	0.65	5.5	1.5	1.8
YD132M	4	1440	4.5	9.4	82	0.88	6.5	1.5	1.8
YD160M	8	730	5	13.9	83	0.66	5.5	1.5	1.8
YD160M	4	1450	7.5	15.2	84	0.89	6.5	1.5	1.8
YD160L	8	730	7	19.0	85	0.66	5.5	1.5	1.8
YD160L	4	1450	11	21.8	86	0.89	6.5	1.5	1.8
YD180L	8	730	11	26.0	86	0.74	6	1.5	1.8
YD180L	4	1470	17	31.5	87	0.92	7	1.5	1.8
YD200L1	8	740	14	33.0	86	0.74	6	1.5	1.8
YD200L1	4	1470	22	41.3	88	0.92	7	1.5	1.8
YD200L2	8	740	17	40.1	87	0.74	6	1.5	1.8
YD200L2	4	1470	26	48.8	88	0.92	7	1.5	1.8
YD225M	8	740	24	53.2	89	0.77	6	1.4	1.8
YD225M	4	1480	34	66.7	88	0.88	7	1.3	1.8
YD250M	8	740	30	64.9	90	0.78	6	1.4	1.8
YD250M	4	1480	42	78.8	89	0.91	7	1.3	1.8
YD280S	8	740	40	83.5	91	0.80	6	1.4	1.8
YD280S	4	1480	55	102	90	0.91	7	1.3	1.8
YD280M	8	680	47	96.9	91	0.81	6	1.4	1.8
YD280M	4	930	67	122.9	90	0.92	7	1.3	1.8
YD90S	8	680	0.35	1.6	56	0.60	5	1.4	1.8
YD90S	6	930	0.45	1.4	70	0.72	6	1.3	1.8
YD90L	8	710	0.45	1.9	59	0.60	5	1.5	1.8
YD90L	6	950	0.65	1.9	71	0.73	6	1.5	1.8
YD100L	8	710	0.75	2.9	65	0.60	5	1.5	1.8
YD100L	6	950	1.1	3.1	75	0.73	6	1.5	1.8
YD112M	8	710	1.3	4.5	72	0.61	5	1.5	1.8
YD112M	6	950	1.8	4.8	78	0.73	6	1.5	1.8
YD132S	8	730	1.8	5.8	75	0.62	5	1.5	1.8
YD132S	6	970	2.4	6.2	80	0.73	6	1.5	1.8
YD132M	8	730	2.6	8.2	78	0.62	5	1.5	1.8
YD132M	6	970	3.7	9.4	82	0.73	6	1.5	1.8
YD160M	8	930	4.5	13.3	83	0.62	5	1.5	1.8
YD160M	6	980	6	14.7	85	0.73	6	1.5	1.8
YD160L	8	930	6	17.5	84	0.62	5	1.5	1.8
YD160L	6	980	8	19.4	86	0.73	6	1.5	1.8
YD180M	8	930	7.5	21.9	84	0.62	5	1.5	1.8
YD180M	6	980	10	24.2	86	0.73	6	1.5	1.8
YD180L	8	730	9	24.8	85	0.63	5	1.5	1.8
YD180L	6	980	12	28.3	86	0.75	6	1.5	1.8
YD200L1	8	730	12	32.5	86	0.65	5	1.5	1.8
YD200L1	6	980	17	39.1	87	0.76	6	1.5	1.8
YD200L2	8	730	15	40.3	87	0.65	5	1.5	1.8
YD200L2	6	980	20	45.4	88	0.76	6	1.5	1.8
YD100L	6/4/2	940/1420/2880	0.75/1.3/1.8	2.62/3.66/4.53	67/72/71	0.65/0.75/0.85	5.5/6/7	1.8/1.6/1.6	1./1.8/1.8
YD112M	6/4/2	940/1440/2890	1.1/2/2.4	3.52/5.14/5.80	73/74/74	0.65/0.81/0.85	5.5/6/7	1.7/1.4/1.6	1./1.8/1.8
YD132S	6/4/2	940/1440/2900	1.8/2.6/3	5.14/6.10/7.38	75/78/71	0.71/0.83/0.87	5.5/6/7	1.4/1.3/1.7	1./1.8/1.8
YD132M1	6/4/2	940/1440/2900	2.2/3.3/4	6.03/7.46/8.79	77/80/76	0.72/0.84/0.91	5.5/6/7	1.3/1.3/1.7	1./1.8/1.8
YD132M2	6/4/2	940/1440-2900	2.6/4/5	6.86/9.04/10.8	80/80/77	0.72/0.84/0.91	5.5/6/7	1.5/1.4/1.7	1./1.8/1.8
YD160M	6/4/2	940/1440-2900	3.7/5/6	9.52/11.2/13.2	81/81/76	0.72/0.84/0.91	5.5/6/7	1.5/1.3/1.4	1./1.8/1.8
YD160L	6/4/2	970/1490/2930	4.5/7/9	11.4/15.1/18.8	83/83/79	0.72/0.85/0.92	5.5/6/7	1.5/1.2/1.3	1./1.8/1.8
YD112M	6/4/2	910/1460/2930	0.65/2/2.4	2.66/5.14/5.80	59/74/74	0.63/0.81/0.85	4.5/6/7	1.4/1.3/1.2	1./1.8/1.8
YD132S	8/4/2	710/1440/2900	1/2.6/3	3.16/6.10/7.08	69/78/74	0.61/0.83/0.87	4.5/6/7	1.4/1.2/1.4	1./1.8/1.8
YD132M	8/4/2	710/1440/2900	1.3/3.7/4.5	4.56/8.37/10.0	71/80/75	0.61/0.84/0.91	4.5/6/7	1.5/1.3/1.4	1./1.8/1.8
YD160M	8/4/2	710/1440/2900	2.2/5/6	7.55/11.2/13.2	75/81/76	0.59/0.84/0.91	4.5/6/7	1.4/1.3/1.4	1./1.8/1.8
YD160L	8/4/2	720/1460/2930	2.8/7/9	9.21/15.10/18.80	77/83/79	0.60/0.85/0.92	5.5/6.5/7	1.3/1.2/1.3	1./1.8/1.8
YD112M	8/4/2	710/940/1400	0.85/1/1.5	3.72/3.06/3.53	62/68/75	0.56/0.73/0.86	5.5/6.5/7	1.4/1.2/1.4	1./1.8/1.8
YD132S	8/6/4	710/940/1440	1.1/1.5/1.8	4.10/4.22/4.03	68/74/78	0.60/0.73/0.87	5.5/6.5/7	1.4/1.3/1.3	1./1.8/1.8
YD132M1	8/6/4	710/940/1440	1.5/2/2.2	5.18/5.41/4.87	71/77/79	0.62/0.73/0.87	5.5/6.5/7	1.3/1.5/1.4	1./1.8/1.8
YD132M2	8/6/4	710/940/1440	1.8/2.6/3	6.13/6.84/6.55	72/78/80	0.62/0.74/0.87	5.5/6.5/7	1.5/1.5/1.5	1./1.8/1.8
YD160M	8/6/4	720/970/1460	3.3/4/5.5	10.2/9.87/11.6	79/81/83	0.62/0.76/0.87	5.5/6.5/7	1.7/1.4/1.5	1./1.8/1.8
YD160L	8/6/4	720/970/1460	4.5/6/7.5	13.8/14.5/15.6	80/83/84	0.62/0.76/0.87	5.5/6.5/7	1.6/1.6/1.5	1./1.8/1.8

Q: Is it all right to make customers'own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.

Q: What are your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.

Q: How long is your warranty?
A: One year after receive B/L.

Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.

Founded in 2000, WEDO located in DAXI Town, Wenling, the country of water pumps and motors in China.

Our company is devoted to development, manufacture and sales of different types of agricultural pumps, household pumps, project construction pumps and GPD, GP Series single-phase and three-phase canned circulating electric pumps, central air-conditioning pumps, chemical canned pumps, and ship pumps...

The company owns total industrial area reaching 4000 square metres, more than 300 staff and annual revenue of 100 million RMB. With more than 2000 sales and service agencies in China,

WEDO's sales network has spread out to more than 58 countries and regions around the world as well. WEDO's trademark has also been registered patent in more than 20 countries such as Italy, Holand, Germany, Thailand, which is the best approval and award from our customers for our sincere service.

WEDO, all the time, has been trying best to be and has been the most professional and faithful manufacturer of pumps in China. If you, our friends, offer us a chance to serve you, you will find us, WEDO, your best choice.

History: 15 years professional manufacturer of water pumps and motors.

Scale: Covers a more than 40, 000 square meters working area, with more than 300 employees.

Technology: A strong team of international and professional technical engineers.

Management & QC: Technology-research and development center, test center, we test each pump and motor to guarantee the quality, including water-testing, electrical test during production and factory acceptance test when left factory.

Equipment: 6 production installation lines, 1 electrophoresis automatic production line, and 3 set inserting winding production line, 260 skilled workers are expert in assembling exported products.

Production Capacity: 300, 000 PCS/year.

Marketing network: 200 cities of over 300 wholesales, more than 2000 dealers in domestic exported to Europe and America, Southeast Asia and Africa, etc.

Certificates: ISO9001: 2000 quality system authentication and CCC, CE certification authority.
