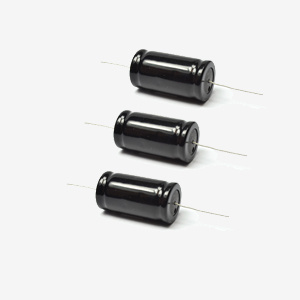

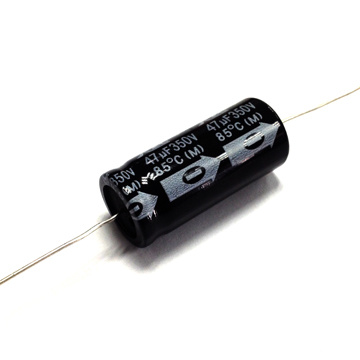

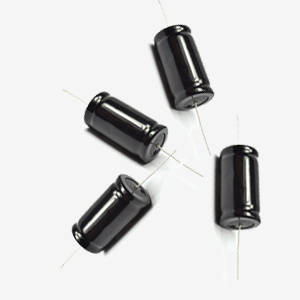

Topmay 350V Aluminum Electrolytic Capacitor Axial Type Tmce15-20
Price: |
US $ 0.01/Piece |
Min Order: |
10000/Piece |
Pay Type: |
T/T |
TMCE15 Aluminum Electrolytic Capacitor Axial TypeOperating temperature | -40 to 105°C |
Rated voltage | 6.3 to 100V |
Nominal capacitance | 0.47 to 10,000μF |
Capacitance tolerance | ±20% (M), (120Hz, 25°C) |
Leakage current (25°C) | I ≤0.03 CV + 3μA (after five minutes application) |
Voltage resistance | 4.3Vr (5 seconds) |
Dissipation factor | ≤0.15% CR≤1.0μF ≤0.3% CR: 1.0μF (20°C, 10kHz) |
Insulation resistance | ≥30,000 seconds (CR ≤0.33°F) ≥10,000 seconds (CR ≥0.33°F) |
Dissipation factor (tend), (25°C, 120Hz):
WV: 6.3, 10, 16, 25, 35, 50, 63 and 100
Trend: 0.35, 0.30, 0.25, 0.25, 0.23, 0.20, 0.20 and 0.20
Load lifespan: after 1,000 hours application of WV at 85°C
Capacitance change: ±25% of initial specified value
Dissipation factor: ±200% of initial specified value
Leakage current: ±200% of initial specified value
Load lifespan: 2,000 hours at 105°C

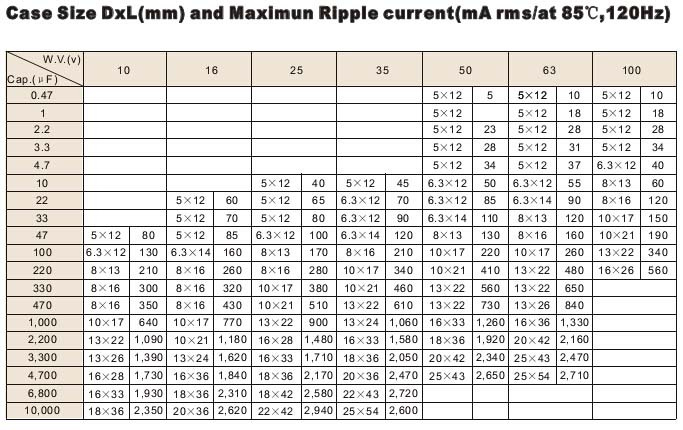

Axial standard typical
Case size: larger than 6.3mm diameter (has safety vent on rubber bun)
More details pls ask for datasheets! Shenzhen Topmay Electronic Co,.Ltd
17-year manufacturer of capacitors
Established in 1998, Shenzhen Topmay Electronic Co. Ltd is engaged in manufacturing, researching and developing a wide variety of capacitors.
Wide product range
- Multilayer ceramic capacitors (radial, axial, and SMD)
- Ceramic disc capacitors (low and high voltage)
- Aluminum electrolytic capacitors (radial, axial and SMD)
- Film capacitors (polyester, polypropylene and metallized)
- Tantalum capacitors (radial, SMD, axial) and others)
- Mica capacitors
- Super capacitors
Monthly output of 1 million units Prompt delivery
- In-stock items: three- to five-day lead time
- Regular orders: seven- to 10-day lead time
- OEM orders: 15-day lead time
Prod Model: |
TMCE15 |
Operating Temperature: |
85c |
Packing: |
Bulk |
Type: |
Aluminum Electrolytic Capacitor |
Application: |
General Purpose |
Package Type: |
Through Hole |
Capacitance: |
47UF |
Tuning: |
Electrolytic Capacitor |
