Universal series rack mounted PDU strip
# 19" 1U/1.5U standard PDU socket, with leak-current protector
# Aluminum-alloy shell,made from block burn PC,Guage:3G 14AWG+UL plug
# According to customer request, we could add AC or DC display
# Color: Black or silver
# Children safty protect.
# Braker protection, and fused.Specifications
Rated current | 10A |
Rated load | 2500W |
Rated voltage | 250V |
Household voltage | 220V |
Number of sockets | 3 to 48 ways |
Size | 19"1.5U\1U |
Shell material | Uninflammable PC module, Aluminium alloy shell |
Type of cable | 3G*1.5mm2*2m |
Type of plug | GB1002 plug |
Degree of protection against electric shock | IP20 |
Provision for earthing | With earting contact |
Method of connecting the cable | Non-rewirable |
Type of connections | Welded-solder |
Degree of protection against electric shock | Normal protection |
Existence of shutters | With shutters |
Method of application-mounting | Portable type |

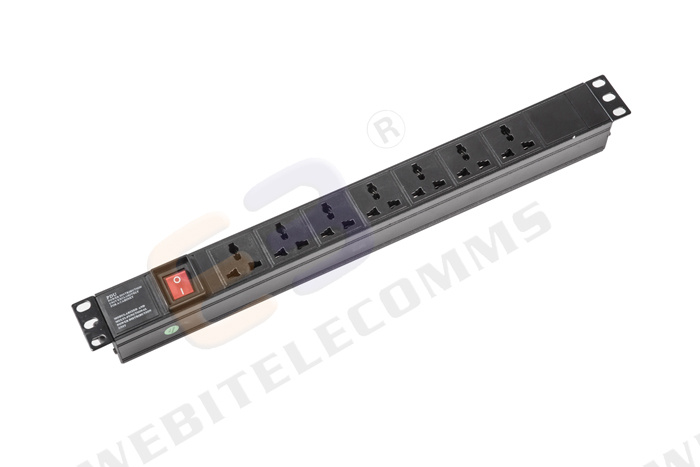

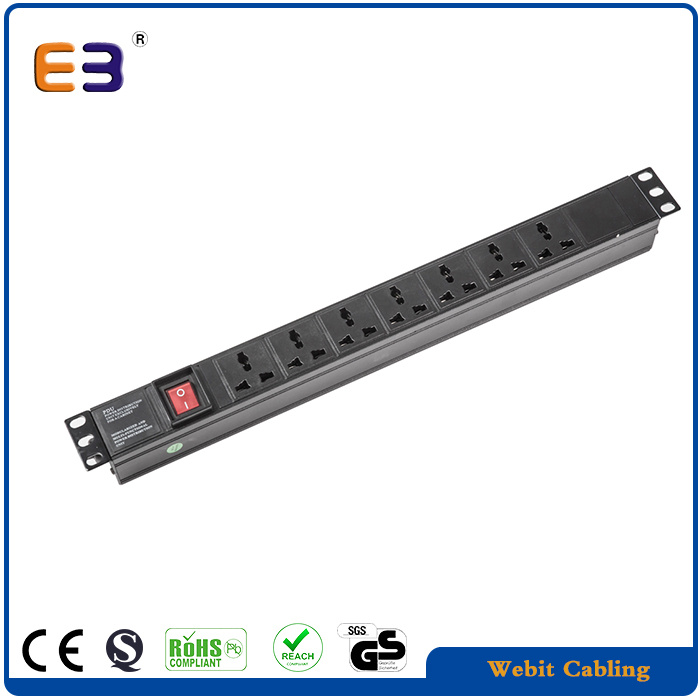

1U 7-way universal outlet , switched

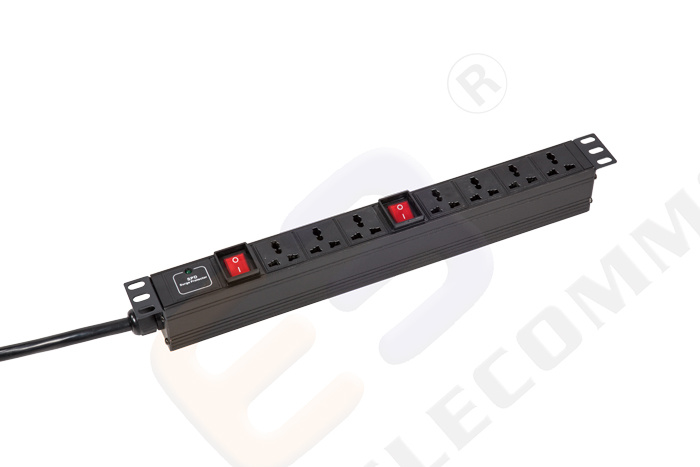

1U 7-way surged protected universal PDU, double switch

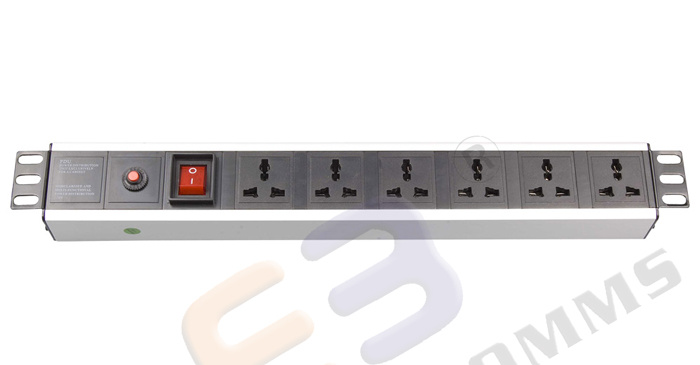

1.5U 6-way with over-loaded protection, switched
Usual Webitelecomms PDU optional function
| Protection | On/off switch (defaulted) |
| 3-lights protection |
| 1-light indictor |
| Surge protection |
| Fuse |
| Current Meter |
| Circuit breaker |
| Locking |
| Overload protector |
| NEON Light |
| Cables | PVC (defaulted) |
| RUBBER |
| LSZH |
| Shell | Alu-alloy (defaulted) |
| Plastic |
| SPCC |

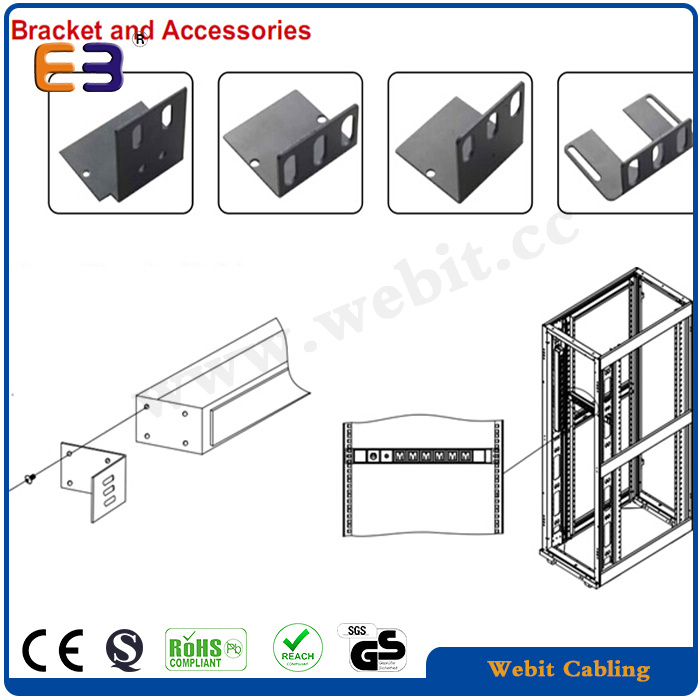

| Mounting | 1U ears (defaulted) |
| Revolving ears |
| Hook |
| Desktop |

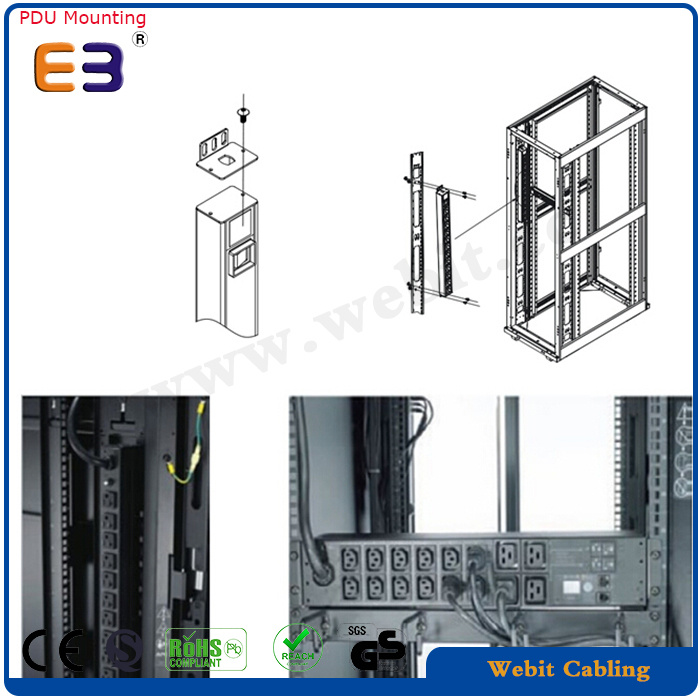

# Installation

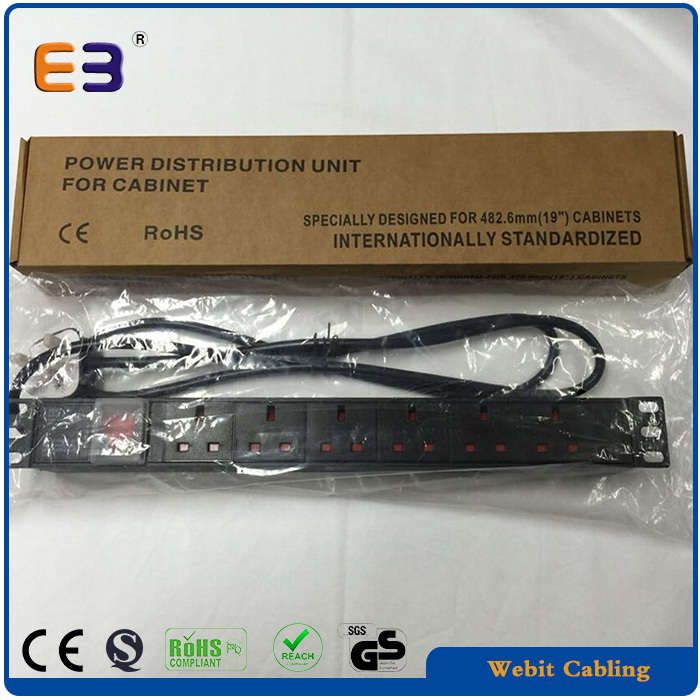

Package details
Carton size | 52*30*48.5cm |
Product box size | 52.5*7.5*5.5 cm |
Quantity in one carton | 25 pcs |
Metal enclosure |
Gross weight for one carton | 23kg |
Net Weight for one carton | 21kg |
Plastic enclosure |
Gross weight for one carton | 22kg |
Net Weight for one carton | 20kg |
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
