Smart Power Distribution unit is the world-advanced new generation network power distribution and monitoring device.
Through LAN or WAN, the manager can monitor,control and manage the power of many equipment in the cabinet of the data room located all over the world.
WebiTelecomms SPDU contains two series:WB-SPDU2000(standard size),WB-SPDU5000(non standard size)
and each series include four levels:A,B,C and D which can meet the requirement of different environment and customers.
WebiTelecomms SPDU are widely applied to 19" standard and non-standard server rack or network cabinet.
through internet Webitelecomms SPDU can remotely monitor,control and manage :
Remote monitor -Total load current(A) -Working voltage(V) -Total Power(KW) -electric energy(KWH) -Frequency -load current of each outlet(A) -On/off state of each outlet -Temperature/Humidity state -Smog state -Water-logging -Door state Remote control -Power on/off of the group. Power on/off of each outlet -Sequential power on/off of the each outlet -Timing power on/off of each outlet -Environment control | Patameter · -The limiting range of tatal load current -The limiting range of work voltage -The limiting range of each outlet current -The limiting range of temperature -The limiting range of humidity Alarm -the total load current exceeds the limiting value -Temperature exceeds the limiting value -Humidity exceeds the limiting value -Smog -Water-logging -Door opening Alarm method -The buzzer on SPDU control panel alarms -Automatically send email to system administrator -Automatically send message through SMS to system administrator User management -Set user's password and device IP address |
Communication Function
User can by means of the remote device via the WEB,SNMP to view,function configuration parameters and power control
Quickly and easily upgrade firmware via network download for future preduct enhancement liminates the need to replace products when new features are released
Features

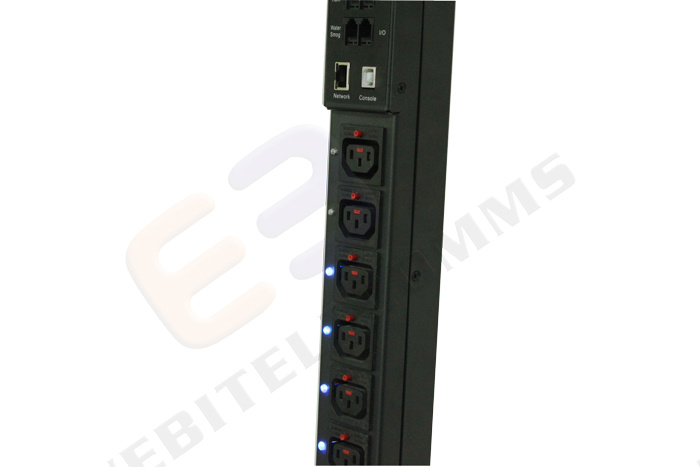

*LED indicator for each outlet
*Pothook installation
*Each outlet Monitor&Control
*Current & Volt metered
*Flash Upgradeable
*Power on/off Delays protection
*Alarm Thresholds
*Network Management Capabilities
*Integrates with StruxureWare Data Center Expert
Data
*Nominal Output Voltage:100V , 200V , 208V , 230V
*Output Maximum Total Current Draw16A
*Input Maximum Input Current:20 A
*Acceptable Input Voltage:100-240 VAC
*Operating Environment:-5 - 45 °C
*Operating Relative Humidity:5 - 95 %
*Storage Temperature:-25 - 65 °C
*Storage Relative Humidity:5 - 95 %
Sampling
# Free combo outleting

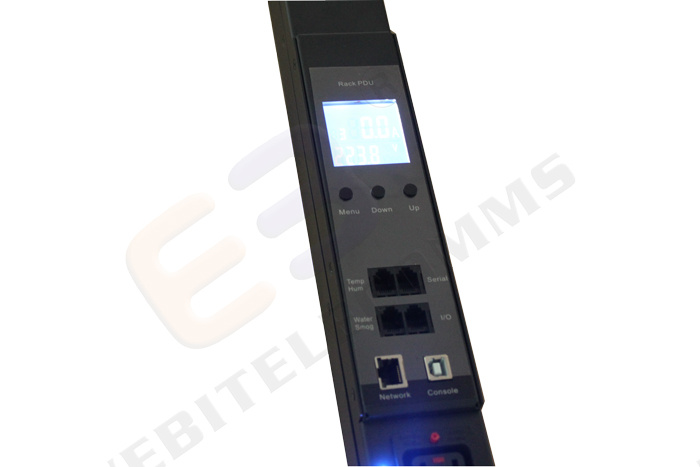

# PDU control menu
# LED power indicator

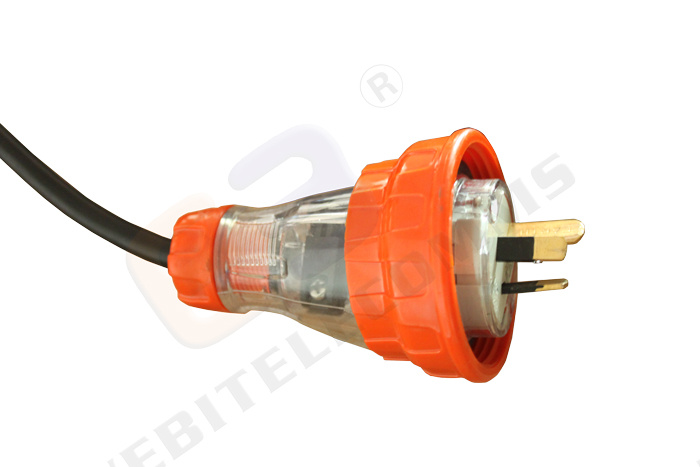

Input Plug
Package details
Carton size | 21.5*12.5*8 cm |
Product box size | - cm |
Quantity in one carton | 1 pcs |
Metal enclosure |
Gross weight for one carton | 7 kg |
Net Weight for one carton | 6 kg |
Plastic enclosure |
Gross weight for one carton | - kg |
Net Weight for one carton | - kg |
=Shipment & Delivery =
Shipment | Note |
Express | Door to door, very convenient, don't need to clearance or pick-up |
By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Webitelecomms take great commitments to photograph products indeed without any cheating and plagiarism.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) Can I require intelligent PDU with different protocol
---Yes, SNMP , TCP/IP as defaulted protocal , others can be also met if required
3) What's your MOQ and how you suggest to delivery it?
---25pcs(1 carton) , Delivered by EXPRESS service, 3~5 days delivery time
4) Do you have CE for UK market?
---Sure,it is basic quality requirement of products. all PDUs have CE,RoHS to meet European Market's needs.
5) Can you produce 10" standard PDU for smart SOHO cabinet?
---10" , 19", non-19" all can be done as per your needs.
6) What is the Loading Port?
--- Usually Ningbo or Shanghai port.
7) What is your MOQ?
---Most of Webitelecomms PDU sold with 50 pcs MOQ, different items will be different. We have indicated the MOQ for each item in the price list.
8) Any certifications ?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
