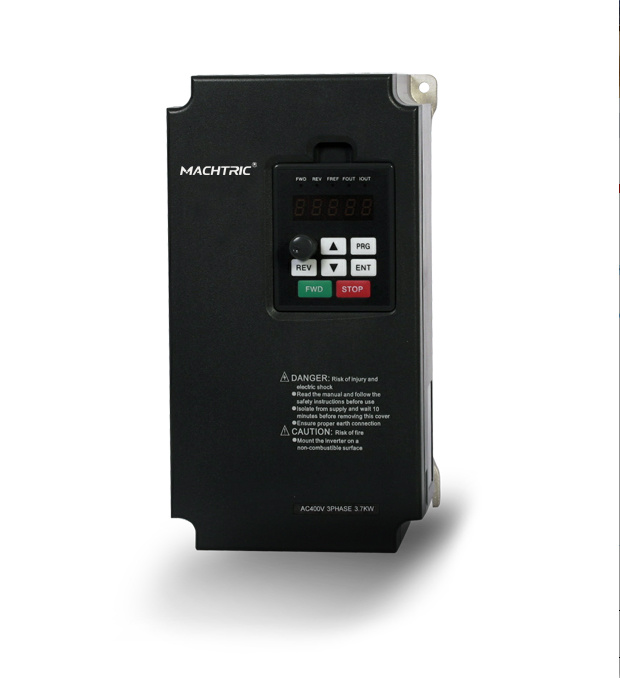

Product name: S3800E Series closed-loop vector control
S3800E series cloed-loop vetctor control --High performance: Control of asynchronous motor and synchronous motor are inplemented through the hign-performance current vector control technology.
Overload capacity 60s for 150% of the rated current, 3s for 180% (120%) of the rated current.
Ramp mode: Straight-line ramp; S-curve ramp; Four groups of acceleration / deceleration time with the range of 0.0~6500.0s
About us:
Quanzhou Machtric Automation Equipment Co., Ltd is a company who manage international High Tech Products in the guidance of International Business . With the help of the Strength R&D, System Engineering , taking advantage of the its abundant international trade resources, we have solved many problems for different customers. At the same time, we have managed many another famous foreign brand in multi-level. We would like to be one of the most popular Industry Automation Solution Suppliers. We try to provide wisdom, individual product solution.
Our products:
1. Inverter series:
Vector series: Z900, ,S2800E,S1100VG,S2200E, S3800E series
Universal series: S2800E, S1100VG,S900GS series, S2100S series
Dedicated series: S100 Series, S200 series(circular knitting machine)
Mini Series : S800E
| Why choose us |
More than 15 years - we are more than 15 years professional manufacture frequency inverter
More than 50 countries- we exported our products to more than 50 countries all over the world.
Professional work team- we can accept OEM ODM
Powerful production capacity - we can offer a large quantity products each month.
Certification -we have passed CE
We offer 24 hours service
|
Any Questions Don't Hesitate To Ask. We can get you the information you need.
We can e-mail you PDF files of the user manual, installation manual, dimensions, performance data, ect.
Visit Our Website: www.machtric.com
Thanks For Looking !!!
We looking forward to cooperate with you!
| Input voltage (V) | Power range (KW) |
| 220V | 0.4~3.7 |
| 380V | 0.4~1000 |
| 660V | 11~1000
|
Item |
S3800Z |
Control mode | V/F control |
| Sensorless flux vector control (VC) |
| Cloed-loop vector control(CVC) |
Maximum frequency | Vextor control :0~320Hz |
| V/F control :0~3200Hz |
Input frequency esolution | Dgital setting :0.01Hz |
| Analog setting :0.025% of maximum frequency |
Startup torque | G type :0.5Hz/150%; 0 Hz/ 180%(CVC)
P type :0.5Hz/100% |
Speed range | 1:100(VC)
1:1000(CVC) |
| Speed stability accuracy | ±0.2%(VC)
± 0.02%(CVC)
|
| Torque control accuracy | ±5%(CVC) | |
| Overload capacity | G type : 60s for 150% of the rated current, 3s for 180% of the rated current
P type : 60s for 120% of the rated current, 3s for 150% of the rated curren |
| Torque boost | Auto boost
Customized boost 0.1%-30.0% |
| V/F curve | Multi-point curve
N-power V/F curve (1.2 power ,1.4 power,1.6 power,1.8power,square ) |
| V/F separation |
Two types :complete separation ; half separation |
| Ramp mode | Straight-line ramp
S-curve ramp
Four groups of acceleration /deceleration time with the range of 0.0.-6500s |
| DC braking | DC braking frequency :0.00HZ to maximun frequency
Braking time :0.0~100.0s
Braking action current value :0.0%- 100.0% |
| JOG control | JOG frequency range :0.00~ 50.00HZ
JOG acceleration /deceleration time :0.0~ 6500.0s |
| Onboard multiple preset speeds | It implements up to 16 speeds via the simple PLC function or combination of terminal states |
| Onboard PID | It realizes process-controlled closed loop control system easily |
Auto voltage
Regulation (AVR) |
It can keep constant output voltage automatically when the mains voltage changes. |
| Overvoltage /Overcurrent stall control | The current and voltage are limited automatically during the running process so as to avoid frequenct tripping due to overvoltage /over current |
| Torque limit and control | It can limit torque automatically and prevent frequent over current tripping during the running process .Torque control can be implemented in the CVC mode |
| Support for the multiple PG card | Support for rotating transformer PD card , differential input PG card, resolver PG card and OC input PG card |
| Power dip ride through | Reduction so that the AC drive can continue to run for a short time |
| Rapid current limit | It helps to avoid frequent over current faults of the AC drive |
| High performance | Control of asynchronous motor and synchronous motor are implemented through the high -performance current vector control technology . |
| Timing control | Time range : 0.0~ 6500.0 mintes
|
| Communication Methods | MODBUS -RTU \ PROFIBUS -DP\ CAN |
| Protection mode | Motor short -circuit detection at power -on , input/output phase loss protection ,over current protection, overvoltage protection, under voltage protection , overheat protection and overload protection |
| Installtion Location | Indoor , free from direct sunlight , dust , corrosive gas, combustible gas, oil smol, vapour , drip or salt |
| Altitude | Lower than 1000m |
| Ambient temperature | -10-40de-rated if the ambient temperature is between 40 and 50 |
| Storage temperture | -20~60 |
