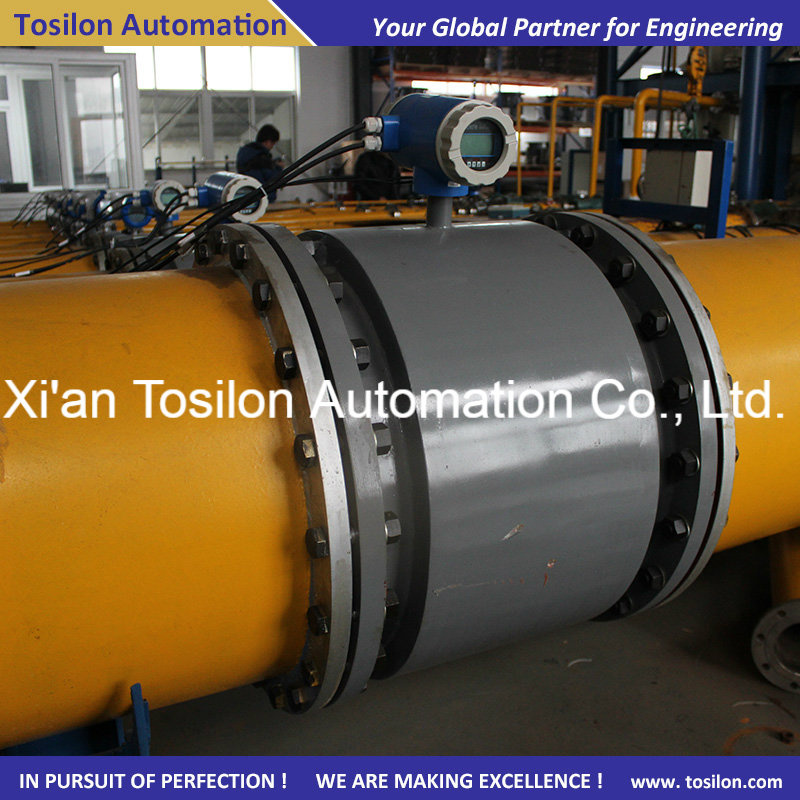

Volumetric Electromagnetic Liquid Flow Transmitter for Waste Water Treatment
| Price: |
US $ 200-3000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Electromagnetic Flow Meter | Tosilon AutomationDesign and Manufacturing according to CE Standard
Volumetric Electromagnetic Liquid Flow Transmitter for Waste Water Treatment (Ex Approved)IntroductionTFE Electromagnetic Flowmeter was developed based on principle of electromagnetic induction, i.e., when conductive liquid flows into measuring tube, the corresponding induction voltage signal, inspected from two electrodes installed on the tube, will be transmitted in transmitter and finally output digital signal.
TFE Electromagnetic Flowmeter is applied to measure the volumetric flow of conductive liquids and slurry in enclosed pipes, such as tap water, polluted water, mud, pulp, various acid/alkali/salt solutions, food slurry, etc. It has a wide range of applicant ambient, including oil interests, chemical industry, power plant, mining and metallurgic plant, water supply and sewerage works, light industry, food products factory, and so on.Features· Full stainless steel construction;
· Laser Welding for Diaphragm
· 5-digit LCD Display;
· Static or Fluid Media Available;
· Temperature Compensation Available;
· HART PROTOCOL Available;
· Multiple type of Installation
· Diaphragm Safety Cover Available

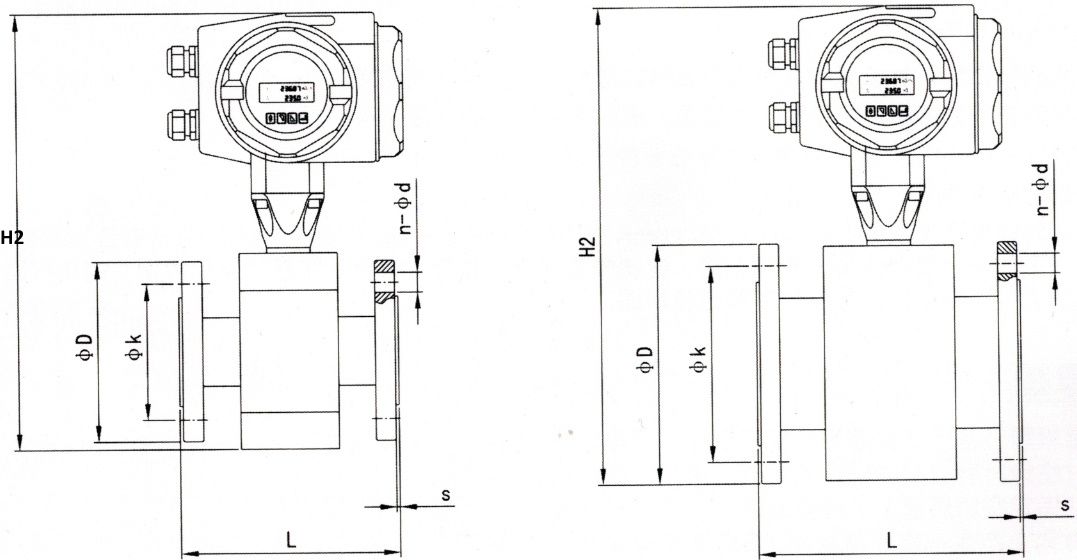

Outline Structure
Technical SpecificationNormal Operating Condition
Ambient Temperature
Separate-type -10 ... +60 oC
Relevant Humidity
5% ... 90%
Power Supply
single phase A.C 85 ... 265V, 45 ... 63Hz
Power Consumption
equipped with sensor, less than 20 W
Reference Performance for test
Ambient Temperature
20 oC ± 2 oC
Relevant Humidity
45% ... 85%
Power Supply
220 ± 2%
Frequency
50 Hz ± 5%
Content of Harmonic Wave
5%
Preheating Time
30 min
Repeatability Error
± 1% of measuring value
Current out
a. Current Output Signal: two-way, all isolated 0 ... 10mA / 4 ... 20mA
b. Load Resistance: 0 ... 10 mA, 0 ... 1.5k Ω; 4 ... 20mA, 0 ... 750Ω
c. Basic Error: based on basic error above mentioned, ± 10 μA
Frequency
Frequency output: forward and reversing flow output, the upper limit of output frequency can be set in the range of 1 ... 5000 Hz. The collector of transistor with optoelectronic isolator: open circuit two-way output. The external supply should no more than 35 V. In conducting state, the maximum current of collector should be 250mA.
Pulse Output
Pulse Output
forward/reversing flow output, the output upper limit can reach 5000 cp/s.
Pulse equivalence:
0.0001 ... 1.0 m3/cp. Pulse is automatically set 20ms or square wave.
The collector of transistor with optoelectronic isolator
open circuit two-way output. The external supply should no more than 35 V. In conducting state, the maximum current of collector should be 250mA.
Indication Output of Flow Direction
This flowmeter can measure flow of forward/reversing fluid and judge the flowing direction. It specifies that it will output +10V high level in forward direction while 0V low level in reversing direction.
Alarm Output
The collector of transistor with optoelectronic isolator: open circuit alarm output. The external supply should no more than 35 V. In conducting state, the maximum current of collector should be 250mA. Alarm situations: empty pipe, exciting wire-break, flow over limit.
Serial Telecommunication
Options of RS 232 and RS 485 with lighting-resistant function;
Damping Time
Option of range in 0 ... 100s (90%)For more information, please contact TosilonYour Global Partner for Automationwww.tosilon.com
| DN (mm) | Range of flow range (m/s) | Accuracy Class 1.0 | Accuracy Class 0.5 |
| 15~50 | 0.1~1.0 | 1% of Full Range | 0.5 % of Full Range |
| 0.5~10 | 1% of Indicating Value | 0.5 % of Indicating Value |
| 65~1000 | 0.1~1.0 0.5~10 | 1% of Indicating Value | 0.5 % of Indicating Value |
| Prod Model: |
TFE Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ambient Temperature: Separate-Type: |
-10 ... +60 Degrees Celsius |
| Relevant Humidity: |
5% ... 90% |
| Power Supply: |
Single Phase a.C 85 ... 265V, 45 ... 63Hz |
| Power Consumption: |
Equipped with Sensor, Less Than 20 W |
| Repeatability Error: |
1% of Measuring Value |
| Output: |
Two-Way, All Isolated 0 ... 10mA / 4 ... 20mA |
| Damping Time: |
Option of Range in 0 ... 100s (90%) |
