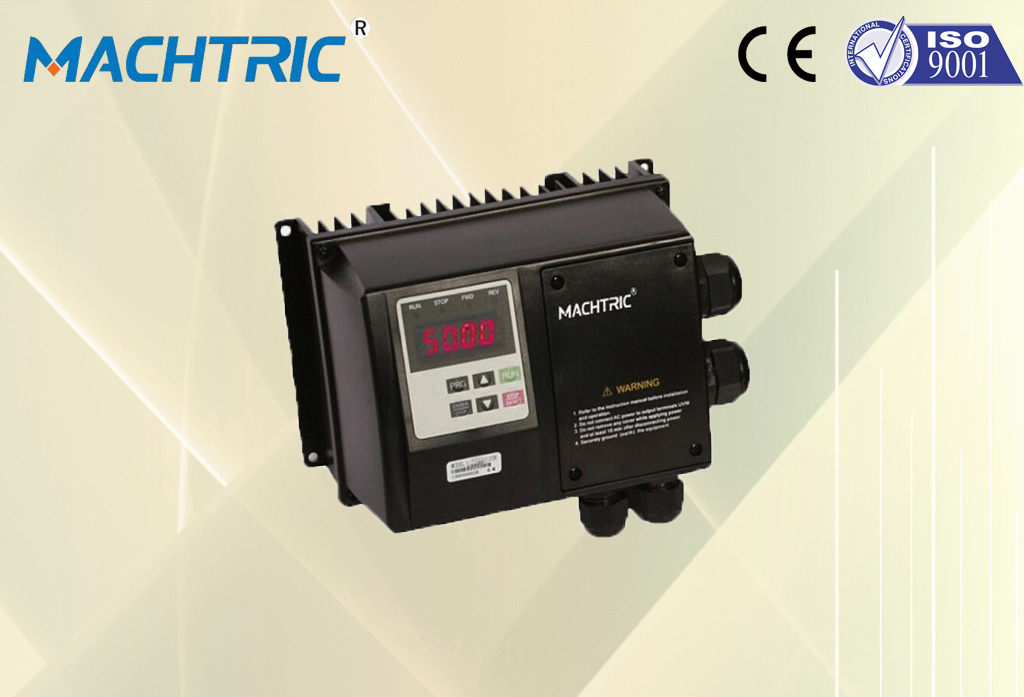

Protection: IP65
Power range: 0.4-11kw
Phase: 1/3 Phase
Input Voltage: 220V: 170~240V, 380V: 330~440V
Output Voltage: 220V: 170~240V, 380V: 330~440V
product specification:
| Model | S2100S |
| Input | Rated voltage, Frequency | 3 AC 380V / 220V; 50-60 Hz |
| Voltage Range | 380V: 330V~440V;220V: 170-240V |
| Output | Voltage Range | 380 V: 0~380 V; 220V: 0-220V |
| Frequency Range | 0.10~400.0 Hz |
| Control method | V/F control, Space verctor control |
| Indication | Operating status/Alarm definition /interactive guidance;eg,frequency setting,the output frequency/current,DC bus voltage,the temperature and so on. |
| Control Specification | Output Frequency Range | 0.10~400.00 Hz. |
| Frequency Setting Resolution | Digital input: 0.01 Hz.
Analog input:0,1% of maximum output frequency |
| Output Frequency Accuracy | 0.01 Hz. |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase:auto raise torque by loading condition;Manual increase:enable to set 0.0~20% of raising torque |
| Multifuncional Input Terminal | 8 multi-function input terminals,realizing function including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions |
| Multifuntional Output Terminal | 3 multi-function output terminals for displaying of running,zero speed,counter,external abnormality,program operation and other information and warnings |
| | | | |
| | |
8 multifunitinal output terminals, 1 inverter can control 4 circular variable frequency pumps |
| | Acceleration/deceleration Time Setting | 0~6000 s acceleration/deceleration time can be set individually |
Other
functions | PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function (MODBUS) |
| Frequency Setting | Analog input 0~10V, 0~20, can be selected; Digital input: input using the setting dial of the operation panel or RS 485 or UP/DOWN |
| Multi-sVPed | Eight multifunction input terminals,15 section sVPed can be set |
| Automatic Voltage regulation | Automatic Voltage regulation function can be selected |
| Counter | Built-in 2 group of counters |
| Overload | 120%,60second (variable torque) |
| Over Voltage | Over Voltage protection can be set |
| Under Voltage | Under Voltage protection can be set |
| Other Protections | Overheat,output short circuit,over current,and parameter lock and so on. |
| Environment | Ambient Temperature | -10ºC~40ºC(non-freezing) |
| Ambient Humidity | Max. 95% (non-condensing) |
| Altitude | Lower than 1000. |
| Vibration | Max. 0.5 g |
| Structure | Cooling Mode | Below 3.7 kW no have fan; Above 5.5 kW Forced air cooling |
| Protective Structure | IP 65 |
| Model | Suitable Motor | Output Current | Assembly Dimension(mm) |
| W | H | D | A | B | b |
| S2100-2S0.75GS | 0.75KW | 5 | 188 | 122 | 134 | 105 | 178 | M4 |
| S2100-2S1.5GS | 1.5KW | 7 |
| S2100-2S2.2GS | 2.2KW | 11 |
| S2100-4T0.75GS | 0.75KW | 2.7 | 188 | 122 | 134 | 105 | 178 | M4 |
| S2100-4T1.5GS | 1.5KW | 4 |
| S2100-4T2.2GS | 2.2KW | 5 |
| S2100-4T3.7GS | 3.7KW | 8.6 | 235 | 154 | 179 | 125 | 221 | M4 |
| S2100-4T5.5GS | 5.5KW | 12.5 |
| S2100-4T7.5GS | 7.5KW | 17.5 |
| S2100-4T11GS | 11KW | 24 |
| Model | W | H | D | A | B | d | N.W (kg) |
| S2100-2S0.75GS | 188 | 122 | 134 | 105 | 178 | M4 | 1.6 |
| S2100-2S1.5GS |
| S2100-2S2.2GS |
| S2100-4T0.75GS | 188 | 122 | 134 | 105 | 178 | M4 | 1.6 |
| S2100-4T1.5GS |
| S2100-4T2.2GS |
| S2100-4T3.7GS | 235 | 154 | 179 | 125 | 221 | M4 | 2.9 |
| S2100-4T5.5GS | 3.0 |
| S2100-4T7.5GS | 3.0 |
| S2100-4T11GS | 3.1 |
| S2100-4T15GS | 285 | 180 | 200 | 150 | 275 | M5 | 4.5 |
| S2100-4T18.5GS |
