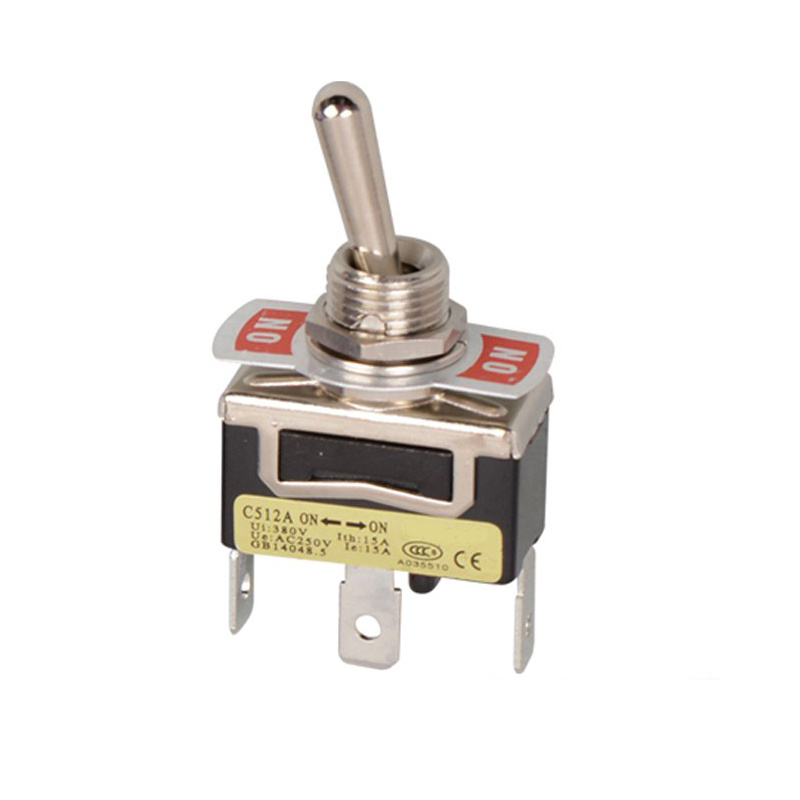

Waterproof Toggle Switches C512A/C512b

Name: Waterproof Toggle Switches C512A/C512b
Brand: all-electronics-online.com
SKU: 834959595
Availability: InStock
Rating: 4.7 (46 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Current: 10A and 15A
Movement way: Fixed type and spring return type (both single-throw and double-throw can return)
Terminal block:screw terminal and solder terminal(tab terminal also can be used)
Rainproof cap,water-proof and oil-proof,it is suitable for full series products

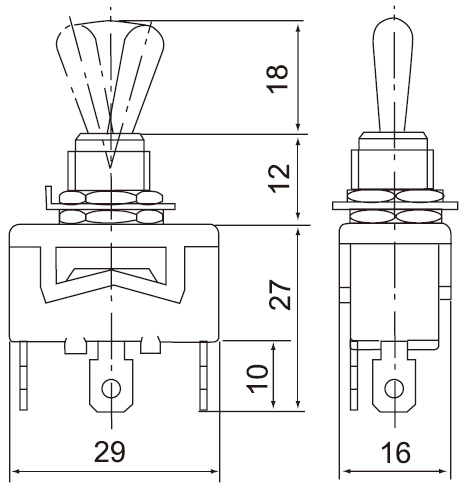

Mounting hole: 12mm
Widely used in Electrical equipment,automatic machine,communication equipment and instrument,electro moton tool etc.

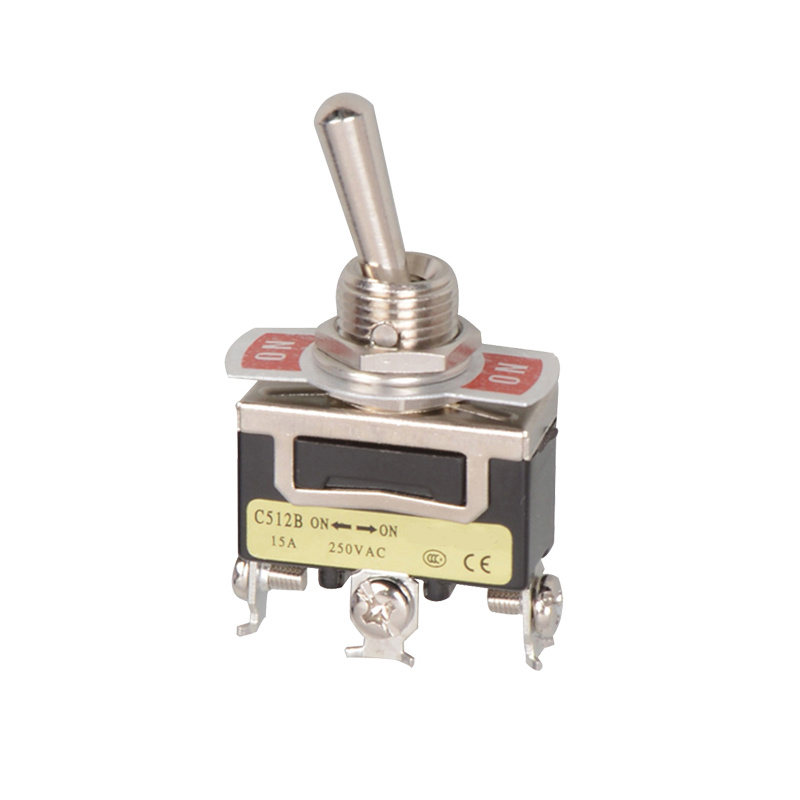

Model No.	C512B
Name	Toggle Switch
Type	10A 250VAC (Spring return)/15A 250VAC (Spring return)
Contact	Single pole single(double) throw ON-OFF Single pole double throw (central OFF single return) ON-OFF-ON Double pole single(double) throw ON-OFF Double pole double throw (central OFF single retun)ON-OFF-ON
Terminal	Tab terminal(#250) Screw terminal Solder terminal(#187)
Contact resistance	15MΩ max.(initial value)
Insulation resistance	100MΩ above.(under 500VDC)
Vibration	10 to 55Hz,1.5mm double amplitude
Dielectric strength	2000VAC,50/60Hz For 1 minute
Life	Mechanical:above 500,000 operations/min
Life	Electrical:above 100,000 operations/min.
Payment term	30% deposit in advance,70% before shipment,100% T/T in advance
Certificate	TUV, CCC,CE,ISO9001
Logo	Customized logo with Decal / Frosted / Print are available as request
Design ability	We can supply sample,OEM&ODM is welcome (Design,Engineering,Photographing,Sample,Production)

ITEM	CODE	DESCRIPTION
Type	C5	15A 250V Stay put
Type	C5R	15A 250V Spring return
Contact	11	ON-OFF SPST
	12	ON-ON SPDT
	13	ON-OFF-ON SPDT
	21	ON-OFF DPST
	22	ON-ON DPDT
	23	ON-OFF-ON DPDT
Terminal	A	Tab terminal
Terminal	B	Screw terminal

Load	Type	AC Rating	DC Rating
Resistance Load	CO	10A 250V 15A 125V	0.4A 250V 0.8A 125V
Resistance Load	C5	15A 250V 20A 125V	0.5A 250V 0.9A 125V
Inductive Load	CO	10A 250V 15A 125V	0.2A 250V 0.4A 125V
Inductive Load	C5	15A 250V 20A 125V	0.3A 250V 0.5A 125V 15A
Lamp Load	CO	300W 100V 500W 200V	30V
Lamp Load	C5	400W 125V 800W 250V	-
Motor Load	CO	200W 125V 300W 250V	7A 30V
	C5	400W 125V (single phase)	-
	CO	550W 250V (three phase)	-
	C5	750 250V (three phase)	-

Prod Model:	C512A/C512B
High Switch Current:	10A/15A
Contact Form:	No/Nc
Max Voltage:	AC/DC 250V
Life:	10,000,000
