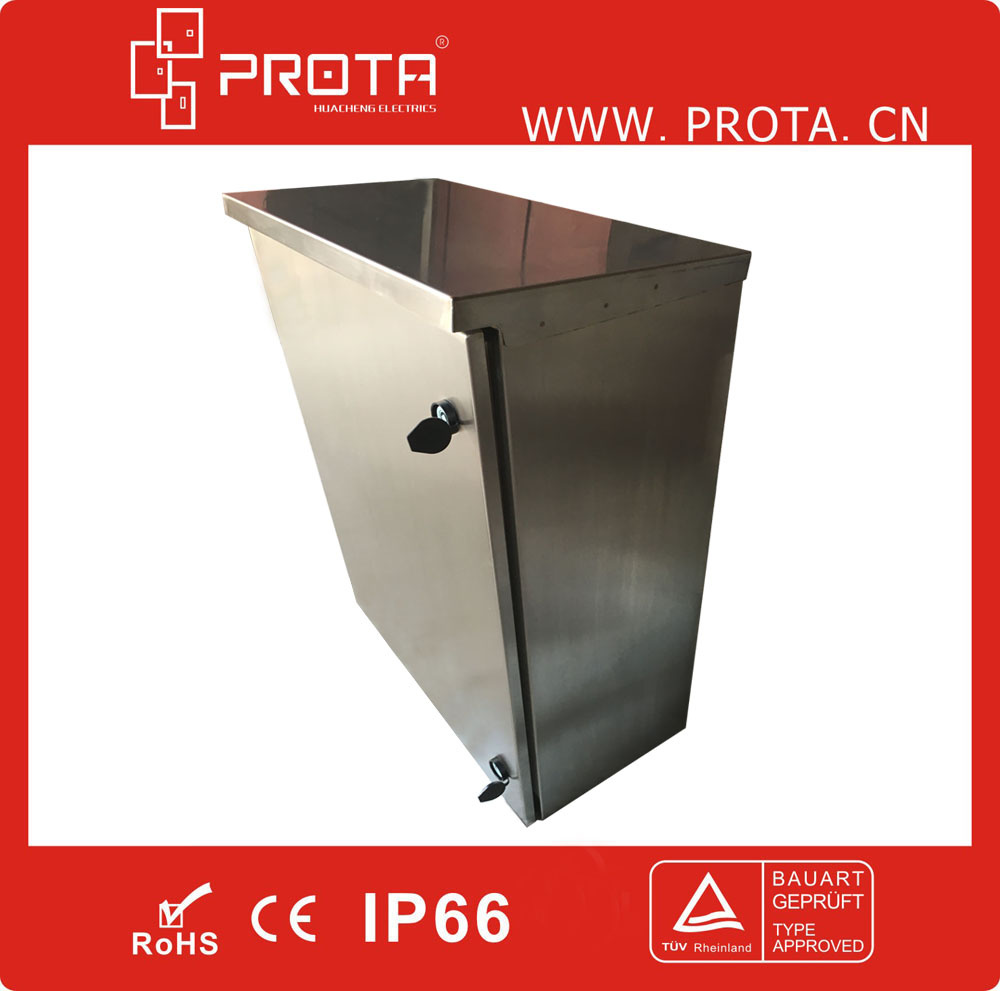

Waterproof Wall Mount Enclosure Stainless Steel Distribution Box 1.Material:stainless steel SUS304/SUS316
2.Thickness: door and body 1.2mm, Galvanized mounting plate 1.5mm
(When the enclosure is more than 800mm high, body and door is 1.5mm THK, mounting plate is 1.5THK.)
3.Surface treatment: wire drawing, the install palet is zinc coated
4.Color: stainless steel natural color
5.Lock: one plastic lock with one plastic key.
6.Protection Level: IP65
7.Foam PU sealing gasket inside the door.
8.Other accessories can be supplied separately,such as the below canopy for outdoor installation.
Craftsmanship feature1,There are strengthening strips with pilot holes is welded to both sides of the door by using the self-tapping M4 screws for the convenient installation (If the enclosure higher than 600mm)
2,The foam PU sealing gasket inside the door.
3,The door can be opened 130°by the plugging hinges
4,The slots design of the enclosure prevents dust and water entering into the enclosures plus the good coordination with foam sealing gasket, which supply a good protection of the enclosure.
5,There are 4 hanging holes in the back of the enclosure, which is very convenient for installation by the wall mounting brackets.
6,The door can be switched by both left and right side(door hinges on the left for the left open door, hinges on the right for the right open door).
Selection Table
Model |
Size(mm) |
Model | Size(mm) |
| PTX2 215 | 200X200X150 | PTX6 425 | 600X400X250 |
| PTX3 215 | 300X200X150 | PTX7 525 | 700X500X250 |
| PTX3 315 | 300X300X150 | PTX8 625 | 800X600X250 |
| PTX4 315 | 400X300X150 | PTX9 625 | 900X600X250 |
| PTX5 415 | 500X400X150 | PTX10 825 | 1000X800X250 |
| PTX6 415 | 600X400X150 | PTX10 1025 | 1000X1000X250 |
| PTX6 515 | 600X500X150 | PTX12 825 | 1200X800X250 |
| PTX7 515 | 700X500X150 | PTX12 1225 | 1200X1200X250 |
| PTX8 615 | 800X600X150 | PTX14 1025 | 1400X1000X250 |
| PTX3 2520 | 300X250X200 | PTX4 330 | 400X300X300 |
| PTX3 320 | 300X300X200 | PTX5 530 | 500X500X300 |
| PTX4 420 | 400X400X200 | PTX6 430 | 600X400X300 |
| PTX5 520 | 500X500X200 | PTX7 630 | 700X600X300 |
| PTX6 620 | 600X600X200 | PTX8 630 | 800X600X300 |
| PTX7 620 | 700X600X200 | PTX9 630 | 900X600X300 |
| PTX8 620 | 800X600X200 | PTX12 1030 | 1200X1000X300 |
| PTX8 820 | 800X800X200 | PTX4 440 | 400X400X400 |
| PTX8 820 | 800X800X200 | PTX5 540 | 500X500X400 |
| PTX10 1020 | 1000X1000X200 | PTX6 440 | 600X400X400 |
| PTX12 1020 | 1200X1000X200 | PTX6 540 | 600X500X400 |
| PTX3 2525 | 300X250X250 | PTX7 640 | 700X600X400 |
| PTX4 325 | 400X300X250 | PTX8 640 | 800X600X400 |
| PTX5 325 | 500X300X250 | PTX10 840 | 1000X800X400 |
| PTX5 425 | 500X400X250 | PTX10 1040 | 1000X1000X400 |
******Other sizes avaliable on request .Cut-outs and drilled holes to your specifications. Should you have any questions or problems, please contact with us.*****Packing and Shipping-- Ordinary paper carton for electric enclosure.
-- Paper cover , PP strap, protective film is avaliable for big electric cabinet
-- Plastic bag is avaliable for stainless steel electric box
-- Bubble bag or protective film for inner protection to avoid scratches.
-- Plywood pallet is available when sheet metal products are in large amount.
--Shipping mark according to customer's request.
-- Samples can be send by courier(UPS, FEDEX, EMS,TNT, DHL),bulk production will be deliveried by sea and air.
Our Service-- We have our own factory, professional sheet metal parts manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change

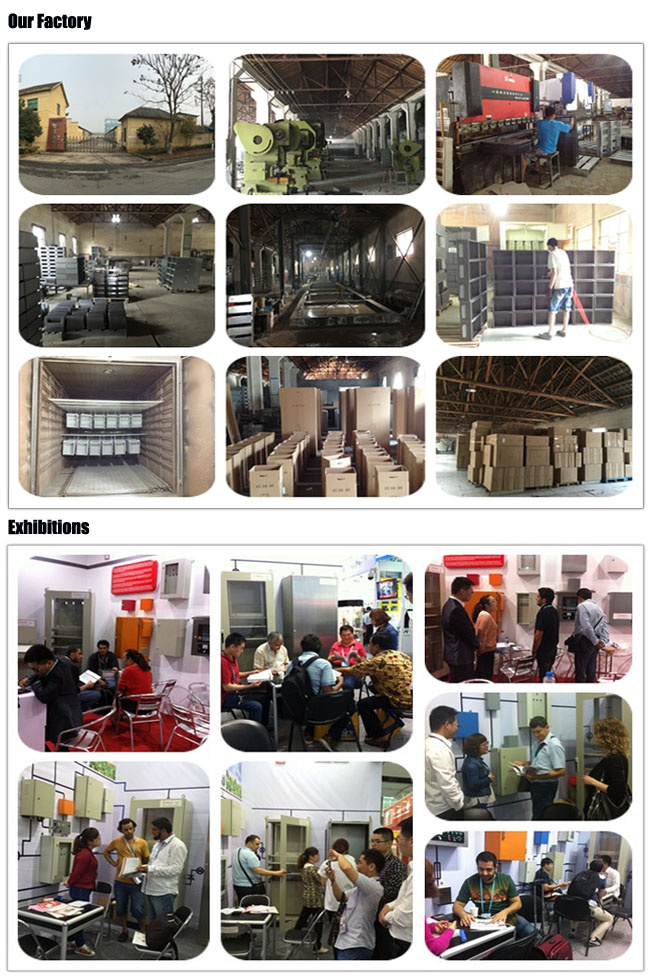

Welcome to visit our factory. Welcome customer or your agent to inspect before order and before loading.
Company InformationPROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: metal wall mounting enclosures, stainless steel enclosures, floor standing electric cabinets, knock-down cabinets, terminal boxes, junction boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed ROHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & ROHS certificates were issued by TUV lab in Shanghai China.
Our products sell well in international markets such as the U.S., Canada, South America, Southeast Asia, the Mid East, India, Africa, etc.
we are devoting ourselves to achieve high quality products, competitive prices and on time delivery, We are working hard to give more to our customers.
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: Metal wall mounting enclosures, top stainless steel enclosures, floor standing cabinets, knock-down cabinets, network cabinets, terminal boxes, MCB boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed RoHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & RoHS certificates were issued by TUV lab in Shanghai China.
We have always insisted on follow the clients' needs, complied with the convenient, practical, safe and beautiful perspective of development and production since the establishment, so far we've well received favorable comments at home and abroad. We also undertake OEM, ODM production, welcome letter Call Advisory.
