Watertight Lemo Substitute Panel Socket with Ce Approval
| Price: |
US $ 10-11/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
1K series 2,3,4,5,6,7,8,10,12,14 mulipins watertight sealed connector

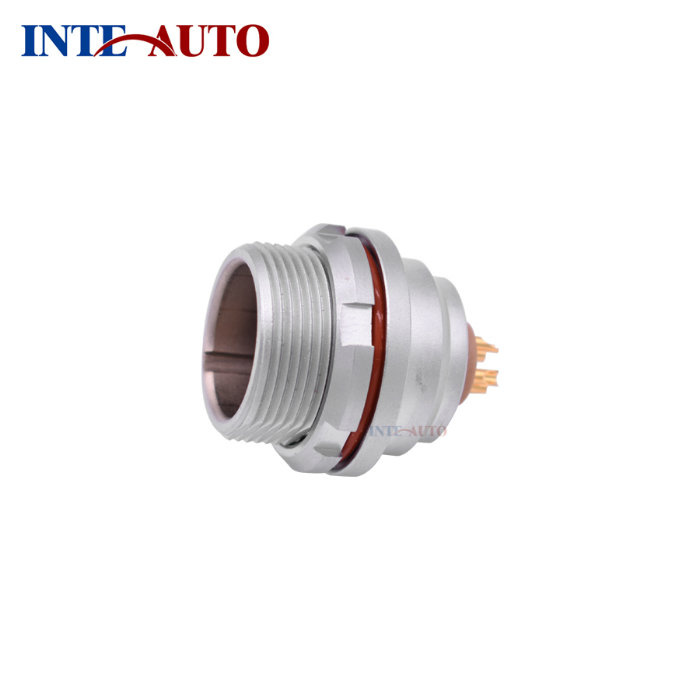

Model (EEG). Series(1K). Key(G). Contacts;Fixed Receptacle, nut fixing, back panel mountingSearch from a broad range of rugged IP67 push pull connectors used in a variety of demanding applications.K series connector with the following main features:K series connectors have been specifically designed for outdoor applications.
They include an inner sleeve and two seals to prevent penetration of solids or liquids into the housing formed by the plug, free socket, fixed socket or coupler. All models of this series are watertight when mated to give a protection index of IP68.
K series connectors have the same insulators as the B series and have the following main features:
1.Security of the Push-Pull latching system
2.Watertight connection (IP 68/IP 66)
3.Multipole types 2 to 64 contacts
4.Solder, crimp or print (straight or elbow) contacts
5.Keying system («G» key standard) for connector alignment
6.Multiple key options to avoid cross mating of similar connectors
7.360° screening for full EMC shielding
8.High packing density for space savings
9.Rugged housing for extreme working conditions.
Technical characteristics:
Mechanical and Climatically
1. Endurance: > 5000 mating cycles;
2. Humidity : up to 95% at 60 ºC;
3. Temperature range: -45 ºC, +125 ºC;
4. .Resistance to vibration : 15 g[10 HZ-2000HZ];
5. Shock resistance: 100 g ,6 MS;
6. Salt spray corrosion test : > 48h;
7. Protection index (mated) : IP 68/IP 66.
Industry Application:
it is usually widely used on all kinds of outdoor applications, specially for the signal transmission, Medical Equipment,Audio / Video, Test and Measurement, Communications product line.

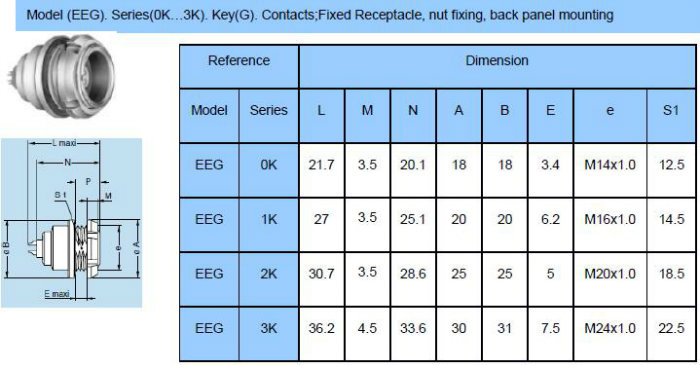

| Reference | Dimension |
| Model | Series | L | M | N | A | B | E | e | S1 |
| EEG | 0K | 21.7 | 3.5 | 20.1 | 18 | 18 | 3.4 | M14x1.0 | 12.5 |
| EEG | 1K | 27 | 3.5 | 25.1 | 20 | 20 | 6.2 | M16x1.0 | 14.5 |
| EEG | 2K | 30.7 | 3.5 | 28.6 | 25 | 25 | 5 | M20x1.0 | 18.5 |
| EEG | 3K | 36.2 | 4.5 | 33.6 | 30 | 31 | 7.5 | M24x1.0 | 22.5 |

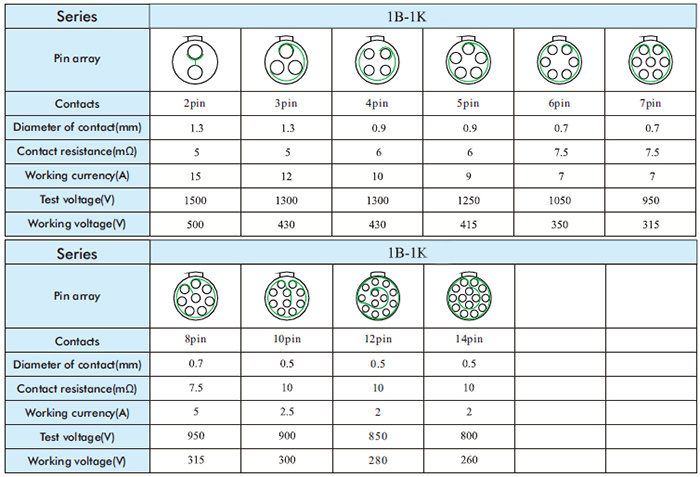

Insulator specs for K series:

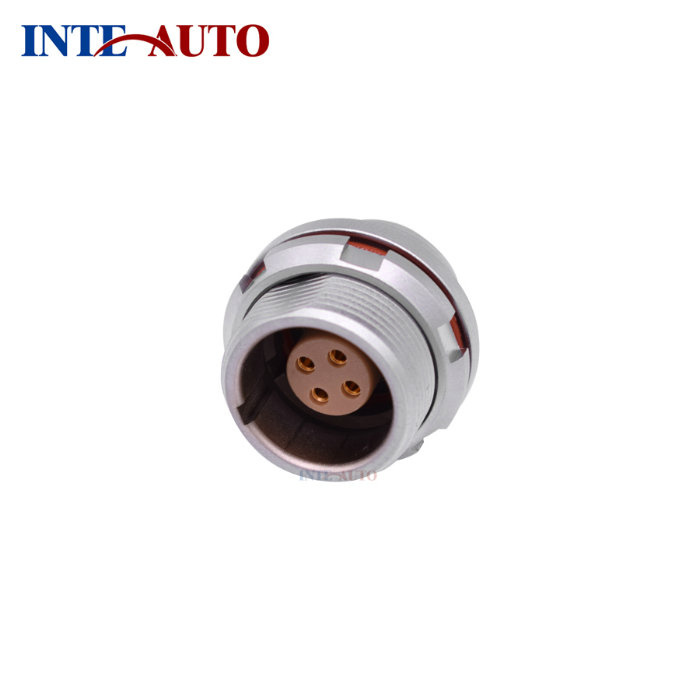

Product Photo Details:
INTE-AUTO design, manufacture and distribute high performance push-pull connector and cable assembly solutions. Known for their quality and ruggedness, our products prove to be reliable in the most demanding environments. Helping solve the original brand's high cost and long lead time.
INTEAUTO Certifications &Contact INFO
Over 10 years connector sales experence, PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon.
Helping solve the original brand's high cost and long lead time!!!
| Prod Model: |
EEG. 1K |
| IP Degree: |
IP68 |
| Insulator Material: |
PPS |
| Number Of Contacts: |
2,3,4,5,6,7,8,10,12,14 Contacts |
| Sample: |
Free |
| Company: |
Manufacturer |
| Delivery Time: |
Inventory |
| Shipping: |
by TNT DHL UPS FedEx |
INTE-AUTO is located in ShenZhen China, dedicate to designing, manufacturing and distributing high performance push-pull connectors and cable assembly solutions. With high efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines, We can supply the same quality as original brand connectors and small customised connectors, our products proved reliability in the most demanding environments because of high quality & good durability.
Products Range:
B series-For Test Equipment, Electronic, Electricity, Medical, Car.
K series-For Outdoor Equipment, Military Equipment.
F series-For Military Equipment, Transportation.
S series-For Audio/Video, Microphone.
E series-For Outdoor Equipment.
P series-For Medical Equipment.
SP series-For LED screen
INTEAUTO Core Competencies:
-High performance push-pull connectors.
-Complete cable assembly solutions.
-Sealed and hermetic connector solutions.
-Lightweight and compact connectors.
-High flexibility of product configurations.
-Standard solutions or customized development.
-Reliable solutions for demanding environments.
-Specialized advice and supporting
-High quality industrial processes.
-Competitive price & stable production
-Trusted by high-end industries.
-Certified TUV CE and RoHS.
-World-class customer service.
Electrical Connectors for Main Industry:
-Machine Manufacturer Industry.
-Vehicle testing facilities.
-Military and Aerospace.
-Test and Measurement.
-Nuclear Technology.
-Industrial Control.
-Medical apparatus.
-Military Industry.
-Communications.
-Automotive.
-Audio/Video.
-Power/Oil & Gas.
