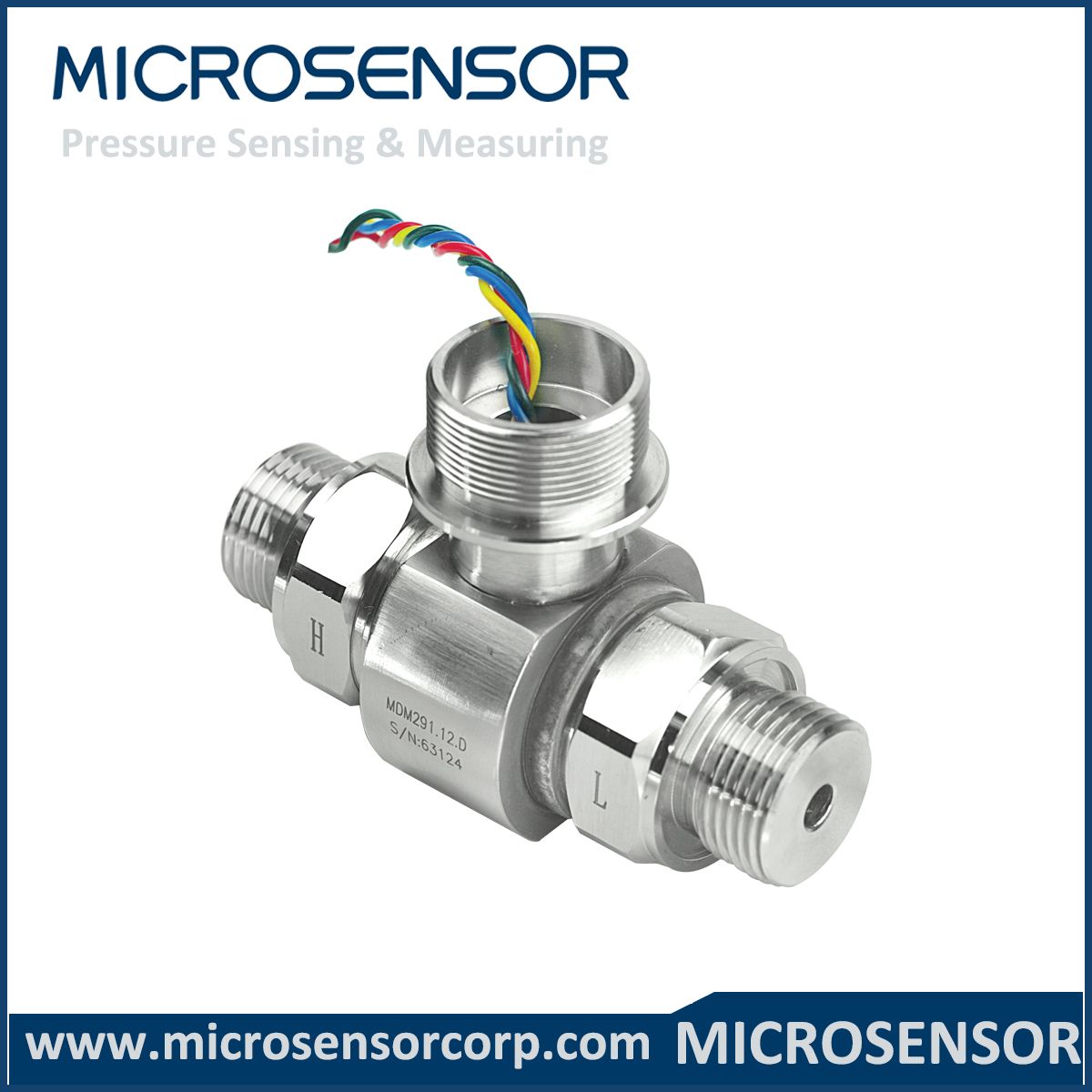

Welded Differential Pressure Sensor MDM291

Features:
      1. Fully welded, no ring
2. Pressure range: 0~35kPa20mPa
3. Compact
4. Cost-effective

Applications:
  1. Industry
  2. Gas
  3. Liquid
  4. Differential pressure
  5. Pressure calibration

Basic Specifications:

Specification*	Min.	Typ.	Max.	Unit
Non-Linearity		±0.20	±0.25	%FS,BFSL
Repeatability		±0.05	±0.075	%FS
Hysteresis		±0.05	±0.075	%FS
Zero Output			±2	mVDC
Full Span Output	70			mVDC
Zero Thermal Error**		±0.5	±0.75	%FS,refer to 35ºC
FS Thermal Error**		±0.5	±0.75	%FS,refer to 35ºC
Compensated Temp. range	0~70			ºC
Working Temp. range	-40~125			ºC
Storage Temp. range	-40~125			ºC
Long term Stability		±0.3	±0.5	%FS/year
*Testing at basic condition
**Code 0A :Max. Zero and FS thermal Error: ±1%FS(refer to 35ºC)

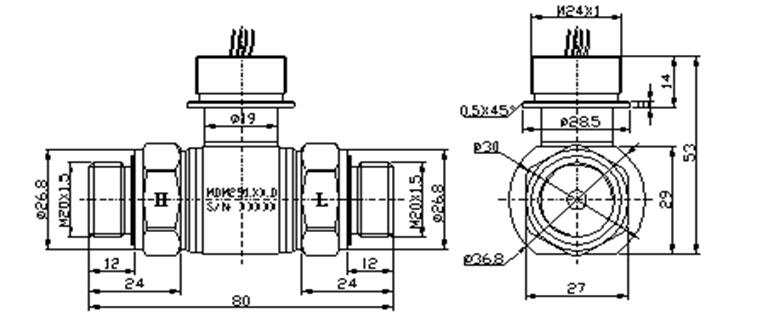

Outline Construction:

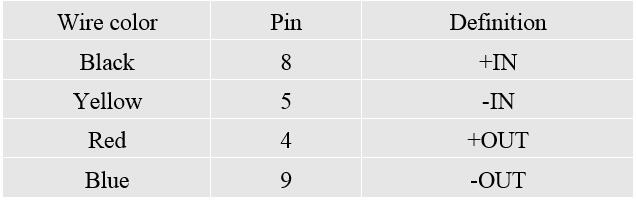

Electric Connection:

Order Guide:

MDM291	Piezoresistive OEM Differential Pressure Sensor
	Range Code	Pressure range	Positive Overpressure			Negative Overpressure
	0A	0~35kPa	70kPa			35kPa
	02	0~70kPa	150kPa			70kPa
	03	0~100kPa	200kPa			100kPa
	07	0~200kPa	400kPa			200kPa
	08	0~350kPa	700kPa			350kPa
	09	0~700kPa	1400kPa			700kPa
	10	0~1MPa	2.0MPa			1.0MPa
	12	0~2MPa	4.0MPa			1.0MPa
		Code	Temperature Compensation Mode
		L	Laser Trimming
		M	Outer compensated resistor (providing resistor value)
			Code	Electric Connection
			2	100mm silicon rubber flexible wires
				Code	Pressure port
				(default)	Without pressure connection and electrical installation connection
				C1	M20×1.5 male, face type seal
				C2	G1/4 male
				C3	G1/2 male
				C4	G1/4 female

MDM291 12 L 2 C1 whole spec.

Prod Model:	MDM291
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Range:	0~35kpa...2MPa
Housing:	Stainless Steel
Power Supply:	Less Than 2.0madc
Diaphragm:	Ss316L
Pressure Type:	Differential Pressure
Media Temperature:	35 C
Output:	Madc
Environment Temperature:	35 C
Media:	Gases Liquids
Static Pressure:	20MPa
Accuracy Grade:	0.25%Fs (Typ.)
