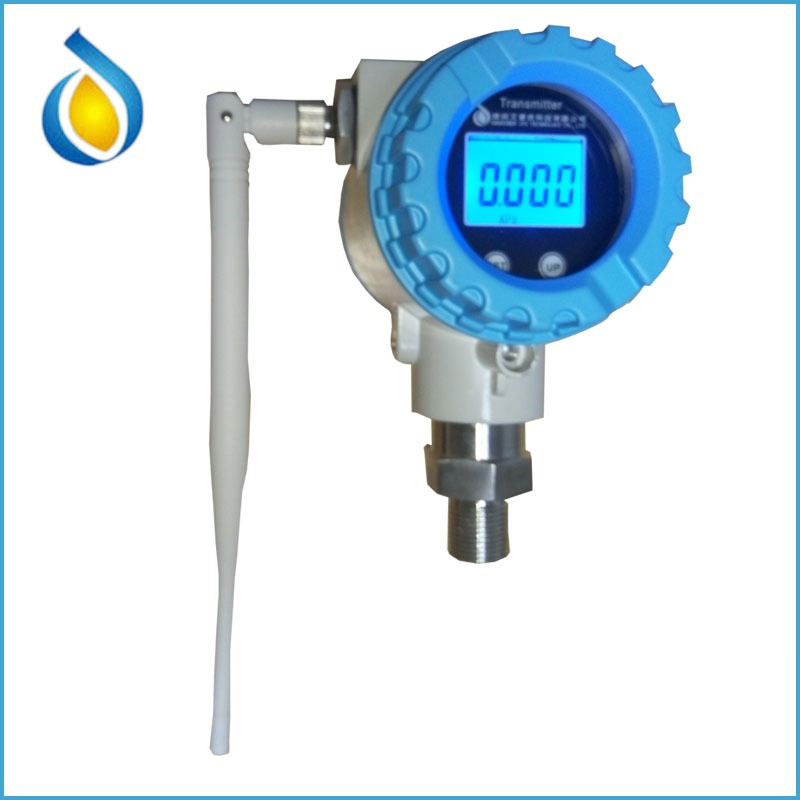

IPD50W Wireless Pressure Transmitter
IPD50W Wireless pressure transmitter is compiance with MODBUS RS485 protocol. It can realize the 255 units to be one wireless net communication.
It uses silicon diaphragm sensor or capacitance sensor, with stainless steel housing, using professional IC circuit over a
wide temperature rangeof zero and full scale performance compensation.So it can detect a large number of monitoring
points in the region-wide real-time data of the network systems, such as the liquid tank testing, storage tanks and oil and
water pressure monitor,other industrial field automation control.

Feature

1) LCD display, wireless signal output
2) High-precision real-time performance, high sampling frequency, low frenquency, low power consumption
3) 2 relay outputs, 220VAC/3A;
4) 433MHZ wireless communication,emission range is 6-10KM
5) Can be in the chemical industry, metallurgy industry, oil and electricity automatic field

Pressure Part Parameters
Power Supply	12VDC
pressure medium	gas or liquid compatible to wetted stainless steel
pressure ranges	-1...0~0.01bar...1000bar
pressure type	gauge(G),absolute(A),sealed gauge(S)
accuracy	0.25%FS , 0.5%FS
long term stability	<0.1%FS/year
supply voltage	12V DC
Relay output(2 relays)	220V/3A
indicator	4 digits LCD display
compensation temperature range	-20~+85°c
working temperature range	-40~+125°c
temperature coefficient of zero	0.2%FS/10°c
temperature coefficient of span	0.2%FS/10°c
insulation resistance	100MΩ@ 50VDC
electrical connection	M20×1.5 female
material of wetted part	1Cr18Ni9Ti
material of membrane	316L
material of housing	cast aluminium
process connection	G1/2 or others
overload pressure	150%FS

Wireless Part Parameters
Frenquency Range	119~1050MHz
Receiver Sensitivity	-126dBm
Emission Power	31dBm
Off Current	30nA
Stand_By Current	50 nA
Receiver Current	10.0mA
Emission Current	450mA
DATA Rate	0.123~1M
Emission Range	10000 Meter In Condition(434M 2.4K)
Electrical Connection

Dimension

Accessory:

1, Pressure sensor
2, Battery or Adapter
3, Receiver
4, PC software of Mobile phone App

Order

*IPD50W*	*IPD50W Wireless Pressure Transmitter Compliance with MODBUS*
	1	433MHZ
	2	ZigBee
	3	GPRS
	4	SMS
	5	GPRS+SMS
	6	Wi-Fi
	7	Others
		M	M20X1.5
		N	1/4-18NPT
		O	M12X1.5
		P	M10X1.0
		Q	1/8NPT
		R	G1/4
		Z	According the customer request
				xxxK	0~xxx KPa
				xxxM	0~xxx MPa
				xxxB	0~xxx Bar
				xxxP	0~xxx Psi
					G		Gauge
					S		Seal
					A		Absolute
							A		Outer Adapter Supply
							B		Inner Battery Supply
										Y	Accessories
										N	No
IPD50W	1	M	---	1600K		G		A		Y

Prod Model:	IPD50W
