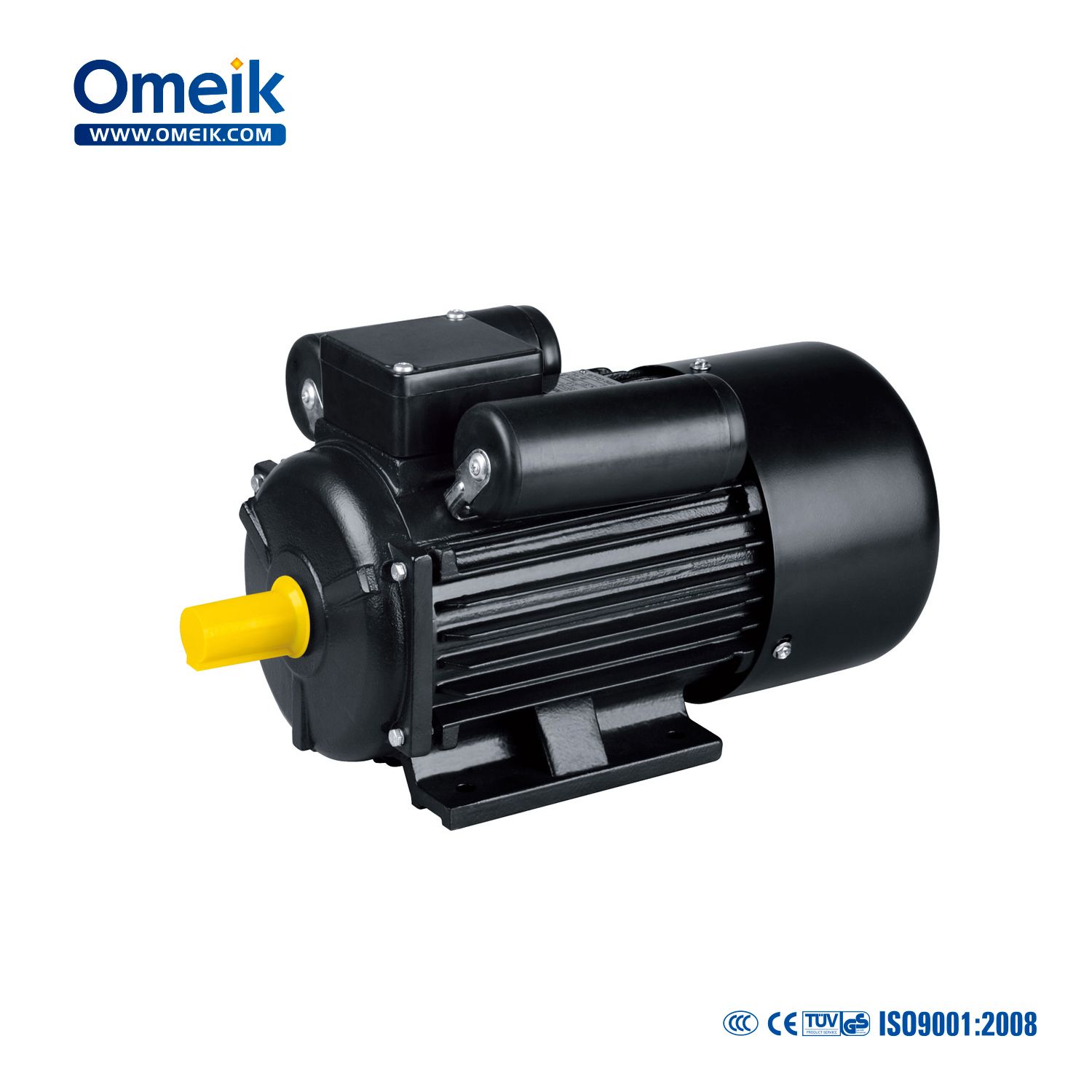

Yc Series Heavy-Duty Single Phase Motor

Name: Yc Series Heavy-Duty Single Phase Motor
Brand: all-electronics-online.com
SKU: 830038265
Availability: InStock
Rating: 4.5 (37 reviews)

Price:	US $ 46-50/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

China factory YC series electric motor

Application:
YC Motors are suitable for driving small machines and water pumps, especially for families or workshops where only single-phase electric supply is available.

Advantage:
1. High torque
2. Steady running
3. Lower noise
4. Greater overload performance

Operating Conditions:
1. Protection class: IP44/54/55
2. Insulation class: B/F
3. Rated voltage: 220V
4. Cooling type: IC0141
5. Duty: Continuous(S1)
6. Rated frequency: 50Hz/60Hz

Note:
If you have any special requirements, please contact us.

TECHNICAL DATA
Type	Output		Voltage (V)	Current (A)	Speed (r. p. m)	Eff (%)	Power factor	Start torque	Start Current	Max. torque
Type	HP	kW	Voltage (V)	Current (A)	Speed (r. p. m)	Eff (%)	Power factor	Rated torque	Rated current	Rated torque
YC80A-2	0.5	0.37	220	3.7	2880	62	0.73	3	6.5	1.8
YC80B-2	0.75	0.55	220	5.3	2880	65	0.73	3	6.5	1.8
YC80C-2	1	0.75	220	6.7	2880	68	0.75	3	6.5	1.8
YC90S-2	1.5	1.1	220	9.1	2880	71	0.77	2.4	7	1.8
YC90L-2	2	1.5	220	12.1	2900	72	0.78	2.8	7	1.8
YC100L-2	3	2.2	220	17.1	2900	74	0.79	2.5	7	1.8
YC112M-2	4	3	220	21.4	2900	76	0.82	2.2	7	1.8
YC80A-4	0.33	0.25	220	3.4	1450	56	0.6	3	6	1.8
YC80B-4	0.5	0.37	220	4.5	1450	60	0.62	3	6	1.8
YC80C-4	0.75	0.55	220	6	1450	64	0.65	3	6	1.8
YC90S-4	1	0.75	220	7.7	1450	67	0.66	2.5	6.5	1.8
YC90L-4	1.5	1.1	220	10.5	1450	70	0.68	2.5	6.5	1.8
YC100L-4	2	1.5	220	13.5	1450	72	0.7	2.5	6.5	1.8
YC112M-4	3	2.2	220	19.3	1450	72	0.72	2.2	6.5	1.8
YC132SA-4	4	3	220	25.2	1450	74	0.73	2.1	6.5	1.8
YC132SB-4	5	3.7	220	30	1450	75	0.74	2.1	6.5	1.8
YC132M1-4	7.5	5.5	220	32.5	1450	81	0.95	2.1	6.5	1.8
YC132M2-4	10	7.5	220	43.3	1450	83	0.95	2.1	6.5	1.8

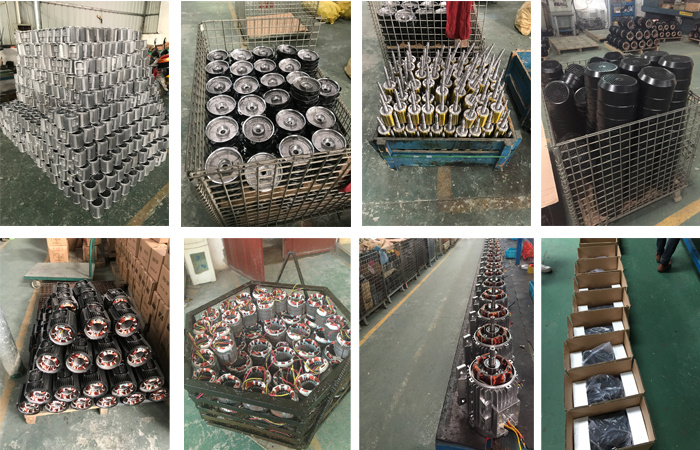

SPARE PARTS:

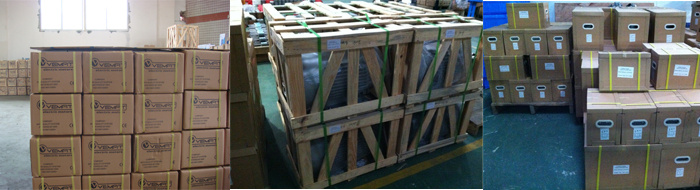

PACKING WAYS

FAQ

Q: Do you offer OEM service?
A: Yes

Q: What is your payment term?

A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.

Q: What is your lead time?

A: About 30 days after receiving deposit or original L/C.

Q: What certifiicates do you have?

A: We have CE, ISO. And we can apply

Prod Model:	YC112M-4
Output:	0.33HP-10HP
Protection Class:	IP44/IP54/IP55
Insulation Class:	B / F
Cooling Method:	IC0141
Duty:	Continuous(S1)
Mounting:	B3/B5/B35
Winding:	100% Copper Wire
Housing:	Cast Iron
Number Of Stator:	Single-Phase
Function:	Driving
Speed:	1400rpm
Certification:	Ce
Brand:	Omeik/OEM

Fuan Omeik Electric Co., Ltd. is a professional manufacturer of water pumps and electric motors, located in Fuan Electrical Machinery and Appliances Zone, Fuan, Fujian, China and established in 1999. It's a fair integrative company with scientific research, production, and sell, which possesses advance producing and testing equipments and strong technology team. The company always strictly follows the ISO9001 quality management system to manage the production which guarantee of good quality.

In order to meet the challenge of the keen market competition, the company has introduced advanced technology and machinery as well as computerized testing equipment to further improving the quality of the products. The company insists on "survives on high quality and honest with business", Basis on this principle our quality products have been exported old over the world, such as South East Asia, Middle East, Australia, Europe and South America etc.

We are longing for hand in hand cooperation with more friends in the whole world, know that quality product and the the after sale services, altogether create happy future, we are warmly welcome your coming and the support.
