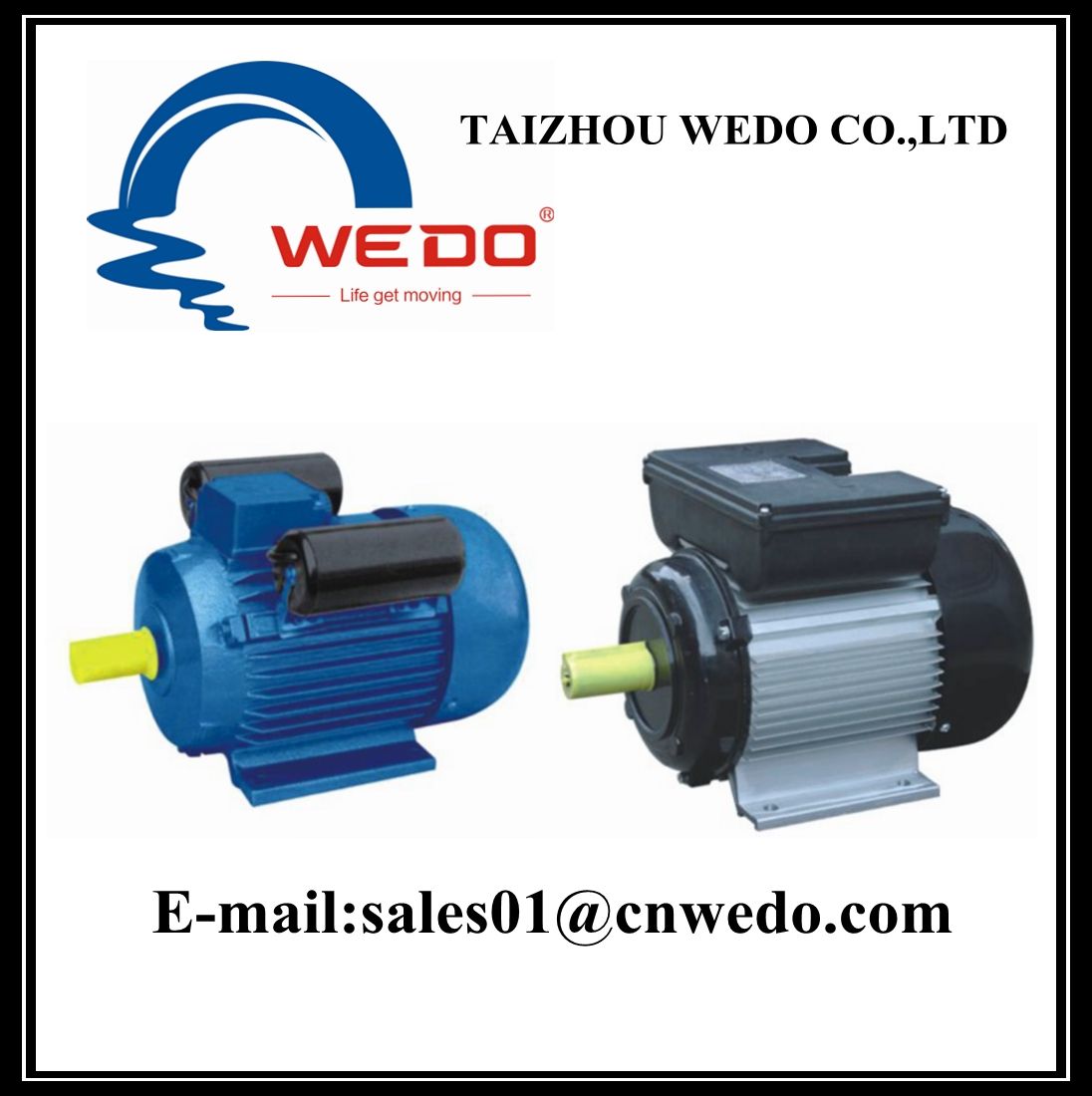

YL Series Single-phase Dual-capacitor Induction Motor
Product Overview:
YL series single-phase capacitor asynchronous motor double value according to the national standard, the manufacture, has good starting and running performance, low noise, small volume, light weight, convenient maintenance, etc. Widely uesd in air compressors, pumps, water machine, refrigeration, medical and small machinery. Use of only a single-phase power supply situation is particulary.
Technical Data:
| Type | Output | Voltage
(V) | Frequency
Hz | Current
(A) | Speed
(r/min) | Efficiency
(%) | Power
Factor | Tstart/Tn | Lst/Ln | |
| HP | KW |
| YL7112 | 0.5 | 0.37 | 220 | 50 | 2.73 | 2800 | 67 | 0.92 | 1.8 | 6.0 | 1.8 |
| YL7122 | 0.75 | 0.55 | 220 | 50 | 3.88 | 2800 | 70 | 0.92 | 1.8 | 6.0 | 1.8 |
| YL7114 | 0.33 | 0.25 | 220 | 50 | 1.99 | 1400 | 62 | 0.92 | 1.8 | 6.0 | 1.8 |
| YL7124 | 0.5 | 0.37 | 220 | 50 | 2.81 | 1400 | 65 | 0.92 | 1.8 | 6.0 | 1.8 |
| YL8012 | 1 | 0.75 | 220 | 50 | 5.15 | 2800 | 72 | 0.92 | 1.8 | 6.0 | 1.8 |
| YL8022 | 1.5 | 1.1 | 220 | 50 | 7.02 | 2800 | 75 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL8014 | 0.75 | 0.55 | 220 | 50 | 4.0 | 1400 | 68 | 0.92 | 1.8 | 6.0 | 1.8 |
| YL8024 | 1 | 0.75 | 220 | 50 | 5.22 | 1400 | 71 | 0.92 | 1.8 | 6.0 | 1.8 |
| YL90S-2 | 2 | 1.5 | 220 | 50 | 9.4 | 2800 | 76 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL90L-2 | 3 | 2.2 | 220 | 50 | 13.7 | 2800 | 77 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL90S-4 | 1.5 | 1.1 | 220 | 50 | 7.21 | 1400 | 73 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL90L-4 | 2 | 1.5 | 220 | 50 | 9.57 | 1400 | 75 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL100L-2 | 4 | 3 | 220 | 50 | 18.4 | 2820 | 78 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL100L1-4 | 3 | 2.2 | 220 | 50 | 13.9 | 1410 | 76 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL100L2-4 | 4 | 3 | 220 | 50 | 18.6 | 1420 | 77 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL112M-2 | 5 | 3.7 | 220 | 50 | 22.2 | 2820 | 80 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL112M-4 | 3 | 2.2 | 220 | 50 | 13.9 | 1410 | 76 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL112M1-4 | 4 | 3 | 220 | 50 | 18.17 | 1420 | 77 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL112M2-4 | 5 | 3.7 | 220 | 50 | 23 | 1430 | 78 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL132S1-4 | 4 | 3 | 220 | 50 | 18.17 | 1420 | 77 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL132S2-4 | 5 | 3.7 | 220 | 50 | 23 | 1430 | 78 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL132M-4 | 7.5 | 5.5 | 220 | 50 | 32.5 | 1430 | 81 | 0.95 | 1.8 | 6.0 | 1.8 |
FAQ:
Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, but for the first time cooperation, we accept trial sample order is OK to check quality.
Q: Is it all right to make customers'own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.
Q: What are your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.
Q: How long is your warranty?
A: One year after receive B/L.
Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
Founded in 2000, WEDO located in DAXI Town, Wenling, the country of water pumps and motors in China.
Our company is devoted to development, manufacture and sales of different types of agricultural pumps, household pumps, project construction pumps and GPD, GP Series single-phase and three-phase canned circulating electric pumps, central air-conditioning pumps, chemical canned pumps, and ship pumps...
The company owns total industrial area reaching 4000 square metres, more than 300 staff and annual revenue of 100 million RMB. With more than 2000 sales and service agencies in China,
WEDO's sales network has spread out to more than 58 countries and regions around the world as well. WEDO's trademark has also been registered patent in more than 20 countries such as Italy, Holand, Germany, Thailand, which is the best approval and award from our customers for our sincere service.
WEDO, all the time, has been trying best to be and has been the most professional and faithful manufacturer of pumps in China. If you, our friends, offer us a chance to serve you, you will find us, WEDO, your best choice.
History: 15 years professional manufacturer of water pumps and motors.
Scale: Covers a more than 40, 000 square meters working area, with more than 300 employees.
Technology: A strong team of international and professional technical engineers.
Management & QC: Technology-research and development center, test center, we test each pump and motor to guarantee the quality, including water-testing, electrical test during production and factory acceptance test when left factory.
Equipment: 6 production installation lines, 1 electrophoresis automatic production line, and 3 set inserting winding production line, 260 skilled workers are expert in assembling exported products.
Production Capacity: 300, 000 PCS/year.
Marketing network: 200 cities of over 300 wholesales, more than 2000 dealers in domestic exported to Europe and America, Southeast Asia and Africa, etc.
Certificates: ISO9001: 2000 quality system authentication and CCC, CE certification authority.
