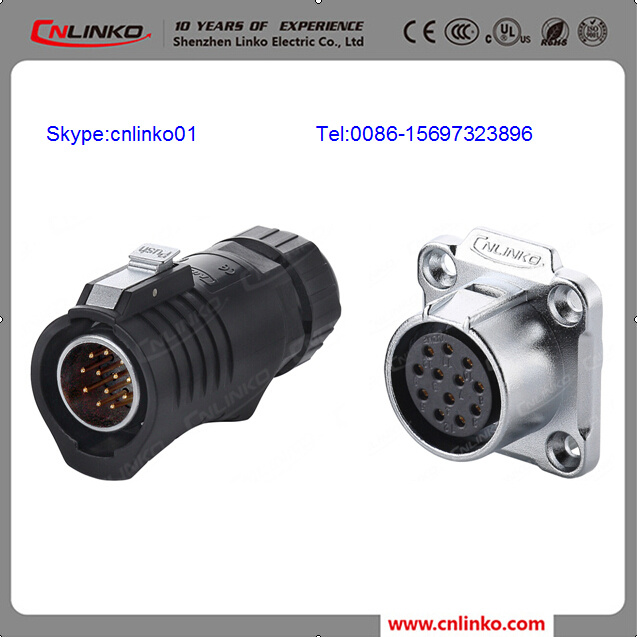

Yp-20 12pin Waterproof Power Connector for LED Display and Lighting

Name: Yp-20 12pin Waterproof Power Connector for LED Display and Lighting
Brand: all-electronics-online.com
SKU: 802787795
Availability: InStock
Rating: 4.8 (114 reviews)

Price:	US $ 6.1-6.7/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Products picture website:
http://www.cnlinko.com/admin/kindeditor/attached/image/20160727/20160727073021_61584.jpg

YP Series is the first choice for user who in the file LED display and lighting equipment, Due to snap quickly plug/unplug, connection securety, convenient and easy to operate, high safety performance and with multi-core industrial use to meet the end.

1.Multi-pins(2/3/4/5/7/9/12 PINS) for power and signal,in line with all kinds of industrial demand.
2.Zinc shell and other inner components against high frequency noise and electromagnetic interference.
3.Gold-plated contacts. High electrical conductivity.
4.PBT and zinc shell, high performance of corrosion resistance and stable,compression, anti-explosion and anti-deformation.
5.Unique CNLINKO clip design for fastening
6.4 holes for installation,which make sure fixed stable
8.Rated current: 20A/12A/5A rms.
9.Protection level: IP65/IP67.

Cable specification:	0.15mm2~0.2mm2/26-24 AWG
Diameter range:	Φ5.5mm~Φ7mm
Contact diameter × number:	Φ1.0×12
Rated Current:	5A
Operating voltage (AC.V.rms):	400V
Contact resistance:	<5mΩ
Temperature rise:	/

Withstanding Voltage(AC.V)1 minute:	2500V	Insulation resistance:	>500MΩ
Protection level:	IP65/IP67	Durability:	≥500 times
Working temperature:	-40oC~80oC	Connecting mode:	plug/unplug
Assembly wire:	solder	Housing,the insulating parts:	High performance engineering plastics
Hardware:	Zinc alloy(pearl hard chromium)	Copper needles:	Copper alloy(gold-plated)
Waterproof circle:	Silica gel	Flammability rating:	UL94-V0

Packaging & Shipping

Normally, our price is based on our box packing.
Customized packing is welcome , MOQ of printing customized box is 1000 pcs/model
Delivery Detail: 3-5 working days after received deposit .
You may choose our shipping partner or your own partner .
100% T/T in advance is required after confirming the order.

Our Services

CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.
Supply OEM service .
We have professional quality control system and R&D department to strictly manufacture each product.
100,000 pcs per month .
National level laboratory , and have flexible production line, to make quick action to urgent customized needs.
We will supply the best service to you . Anything ,please feel free to contact us at:
Oversea's department
Tel:0086-15697323896

Prod Model:	YP-20-C12PE-01-001, LP-20-J12SX-01-001
Contact Diameter × Number:	Φ1.0×12
Rated Current:	5A
Operating Voltage (AC.V.RMS):	400V
Contact Resistance:	<5mΩ
Withstanding Voltage(AC.V)1 Minute:	2500V
Protection Level:	IP67
Assembly Wire:	Solder
Waterproof Circle:	Silica Gel
Connecting Mode:	Plug/Unplug
Copper Needles:	Copper Alloy(Gold-Plated)
Application:	LED Display, Lighting Equipment
Gender:	Male and Female

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
