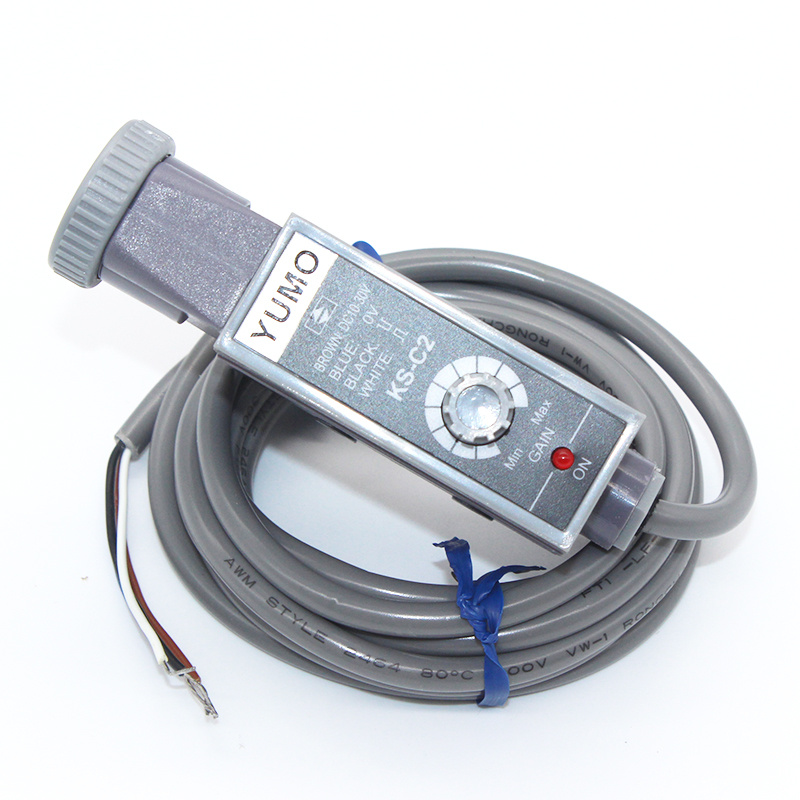

Yumo Ks-C2 Ce Approved PNP NPN Photoelectric Color Mark Sensor
| Price: |
US $ 23-30/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,Western Union,Paypal,Money Gram |
KS-C2 CE approved PNP NPN Photoelectric Color Mark Sensor Features:1. Ks series color mark sensor wll emit light rays to scan the detected surface and can identify the different color marks through receiving different intensity of light reflected back from different colors on the surface.
2. Coaxia optical design, more adaptable to surfaces of high-reflectance(such as aluminum foil)
3. With light sources of blue, green, red and various other colors for selection, moreaccurately to identify various colors.
4. Small light sopt, excellent resolution.
5. Short response time of 0.1-1ms, can adapt to control demand of various packaging machines and printing machines.
6. Outstanding internal circuit design that can resist various electromagnetic and optical interference, has stability and no error action.
7. With sensitivity adjustment knob, do not need tool to adjust.
Datasheet:| Model | KS-C2 |
| Detecting method | Coaxial reflection |
| Supply Voltage | 10-30VDC |
| current consumption | <30mA |
| Detecting distance | 12mm±2mm |
| light source | Green | Blue-green, blue, white optional |
| Light spot | M1.5 mm - M0.5 mm optional |
| switching speed | > 2Khz |
| Output current | <200mA |
| Indicator | red led |
| Sensitivity adjustment | continuously adjustable |
| Sealing form | IP67 dustproof, waterproof |
| Anti outside light | 10000Lux stage lighting,100000Lux sun light |
| operating temperature | 0-70 °C |
| Cable | 2m PVC |
| Housing material | PBT |
| Prod Model: |
KS-C2 |
| Siz: |
22*63*89 |
| Supply Voltage: |
10-30VDC |
| Detecting Method: |
Coaxial Reflection |
| Examination Distance: |
10mm+/-2mm |
| Chromatogram Of Light: |
Red/Green/Blue/White |
| Facula: |
Circular |
| Response Time: |
0.25-1ms |
| Output Current: |
<200mA |
| Output Type: |
NPN/PNP |
| Shell Material: |
PBT |
