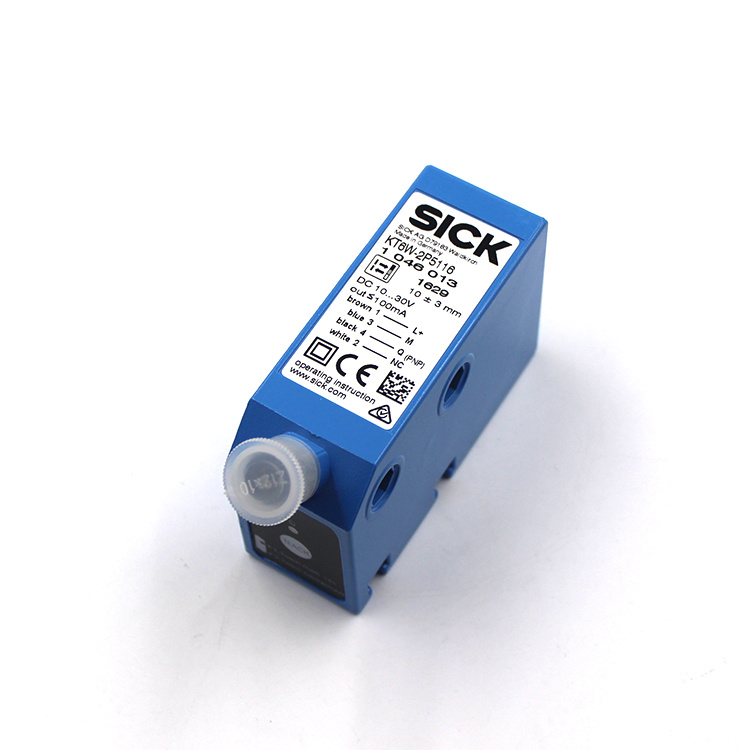

Kt6w-2p5116 Sick Color Mark Sensor
Price: |
US $ 10-100/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
SICK color mark sensor KT6W-2P5116
- FEATURES

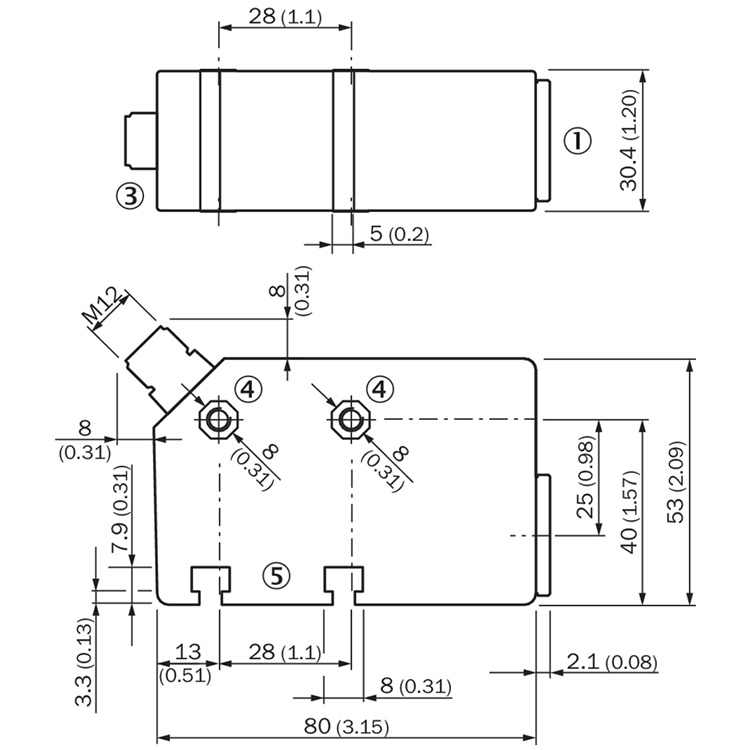

Dimensions (W x H x D) | 30.4 mm x 53 mm x 80 mm |
Sensing distance | 10 mm |
Housing design (light emission) | Rectangular |
Sensing distance tolerance | ± 3 mm |
Light source | LED, RGB 1) |
Wave length | 640 nm, 525 nm, 470 nm |
Light emission | Short device side |
Light spot size | 1.5 mm x 6.5 mm |
Light spot direction | Vertical 2) |
Adjustment | Teach-in button |
Teach-in mode | Static 2-point teach-in |
- 1) Average service life: 100,000 h at TU = +25 °C.
- 2) In relation to long side of housing.
- MECHANICS/ELECTRONICS
Supply voltage | 10 V DC ... 30 V DC 1) |
Ripple | ≤ 5 Vpp 2) |
Power consumption | < 40 mA 3) |
Switching frequency | 5 kHz 4) |
Response time | 100 µs |
Output type | PNP |
Switching output (voltage) | PNP: HIGH = VS- ≤ 2 V / LOW approx. 0 V |
Output current Imax. | 100 mA |
Retention time (ET) | 25 ms, non-volatile memory |
Connection type | Male connector M12, 4-pin |
Protection class | II 5) |
Circuit protection | UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression |
Enclosure rating | IP 67 |
Weight | 400 g |
Housing material | Zinc diecast |
- 1) Limit values when operated in short-circuit protected network: max. 8 A.
- 2) May not exceed or fall below Uv tolerances.
- 3) Without load.
- 4) With light/dark ratio 1:1.
- 5) Reference voltage DC 32 V.
- AMBIENT DATA
Ambient operating temperature | -10 °C ... +55 °C |
Ambient storage temperature | -25 °C ... +75 °C |
Shock load | According to IEC 60068 |
Prod Model: |
KT6W-2P5116 |
Dimensions (W X H X D): |
30.4 mm X 53 mm X 80 mm |
Sensing Distance: |
10mm |
Housing Design (Light Emission): |
Rectangular |
Supply Voltage: |
10 V DC ... 30 V DC 1) |
Enclosure Rating: |
IP67 |
Type: |
Infrared Sensor Switch |
Principle: |
Infrared |
Wires: |
PNP (',Three-Wires) |
Standard: |
Standard |
Certification: |
CE |
Application: |
Industrial |
Size: |
Z3n-Tb22 |
