YUMO Z3N-TB22 photo color sensor blue Color Mark Senso
Datasheet:Checking mode | Co-axial |
Checking distance | 10mm +/- 2mm |
Voltage supply | DC10-30V +/- 10% Wave <10% |
Work currency | Minus 45mA |
Light source spectrum | Red, green, blue, white |
Light spot | Φ0.5~Φ1.5 |
Checking angle | Vertical with surface, with 15°tolerance |
Response time | 0.1~1ms |
Output mode | Operate with light or without light |
Output indication | Red LED |
Output voltage | VH |
Currency load | 200mA(max) |
Circuit protection device | Vc polar protection short-circuit protection |
Sensitivity | Adjustable |
Anti-background light | Sunlight < 10000 Lx incandescent light<3000Lx |
Protection level | Lp67 |
Environment protection temperature | Work at -15ºC~65ºC storage -25ºC~80ºC |
Shell material | Metal |
Connection wire | Φ5.4 PVC 4-core cable L=2m |
Weight | About 500g |

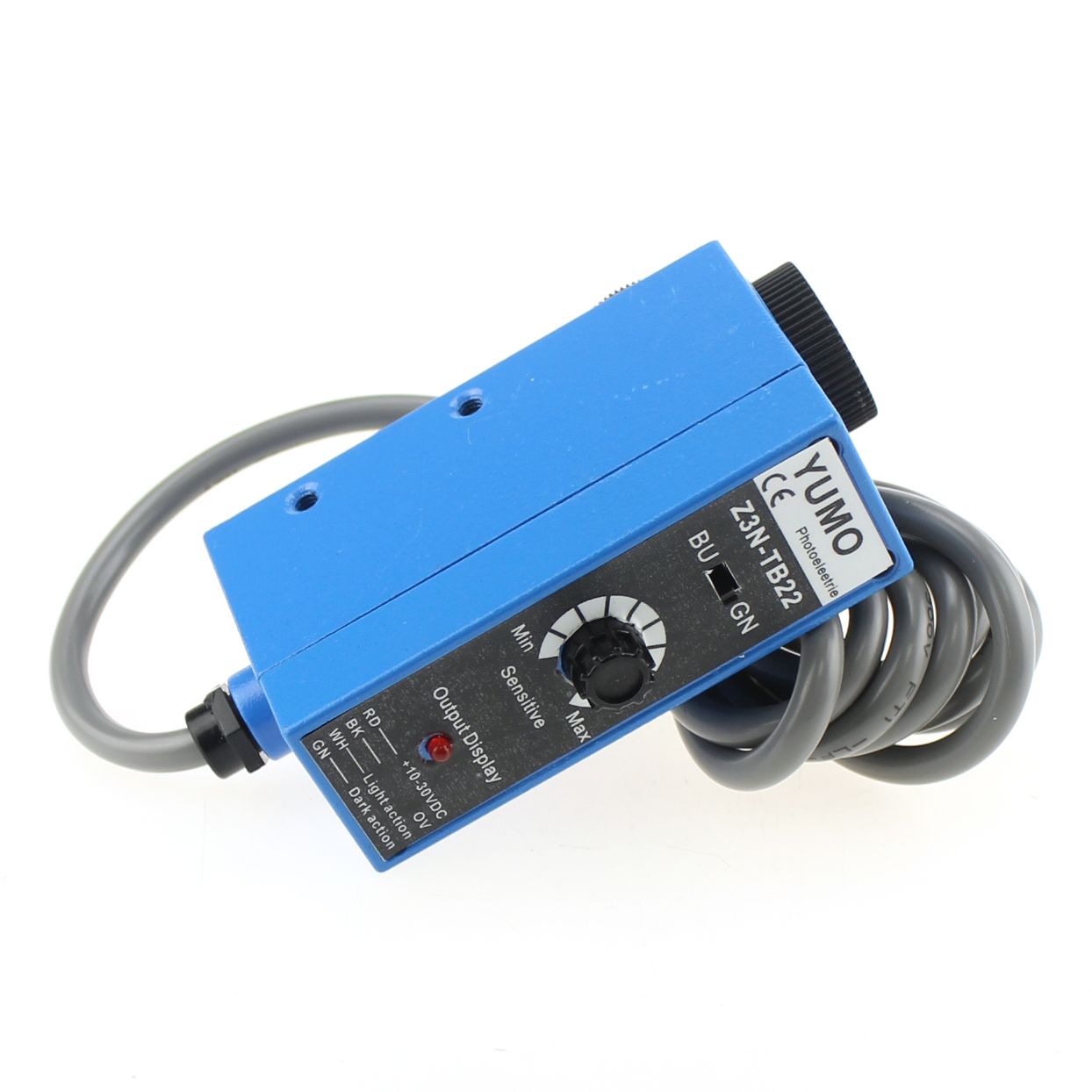

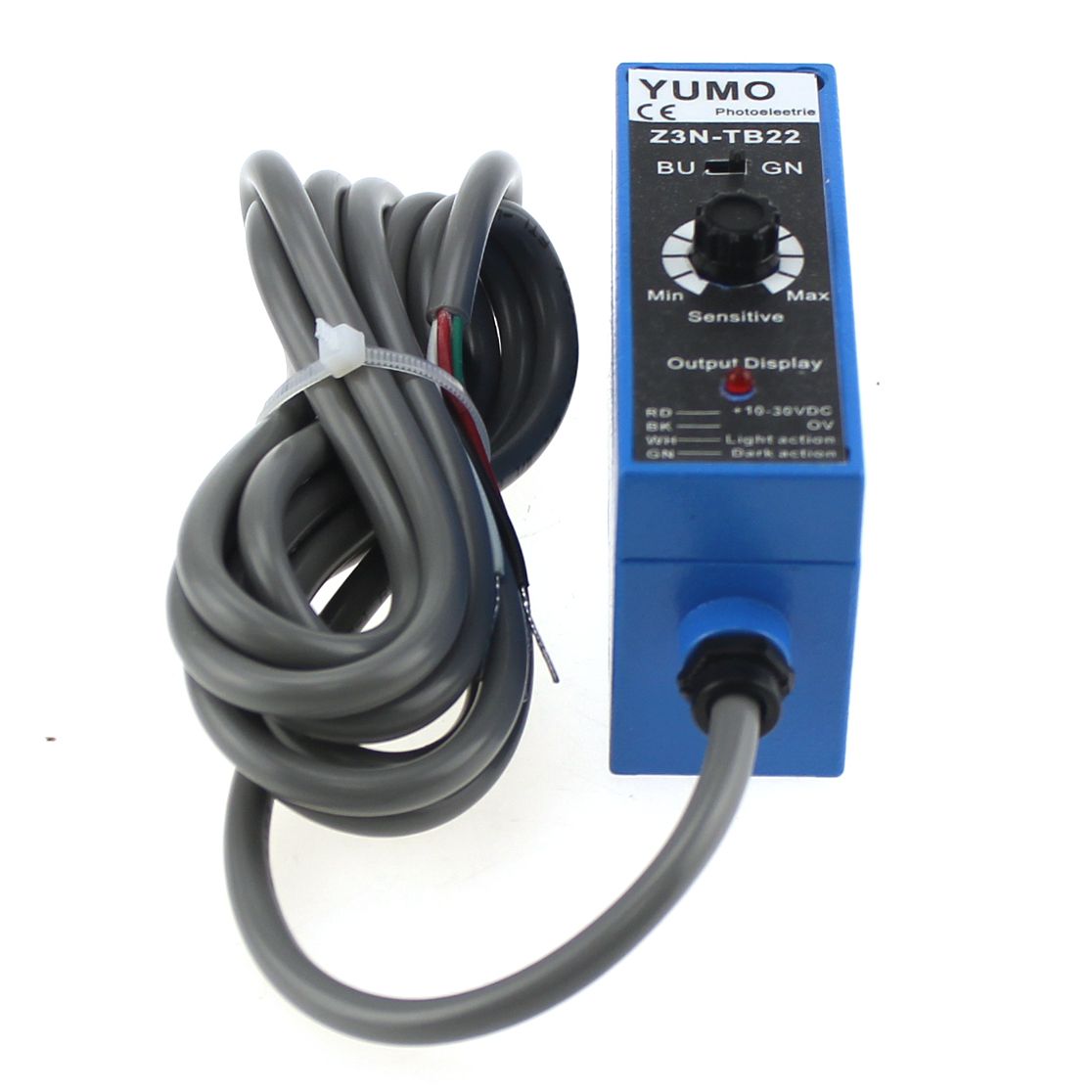

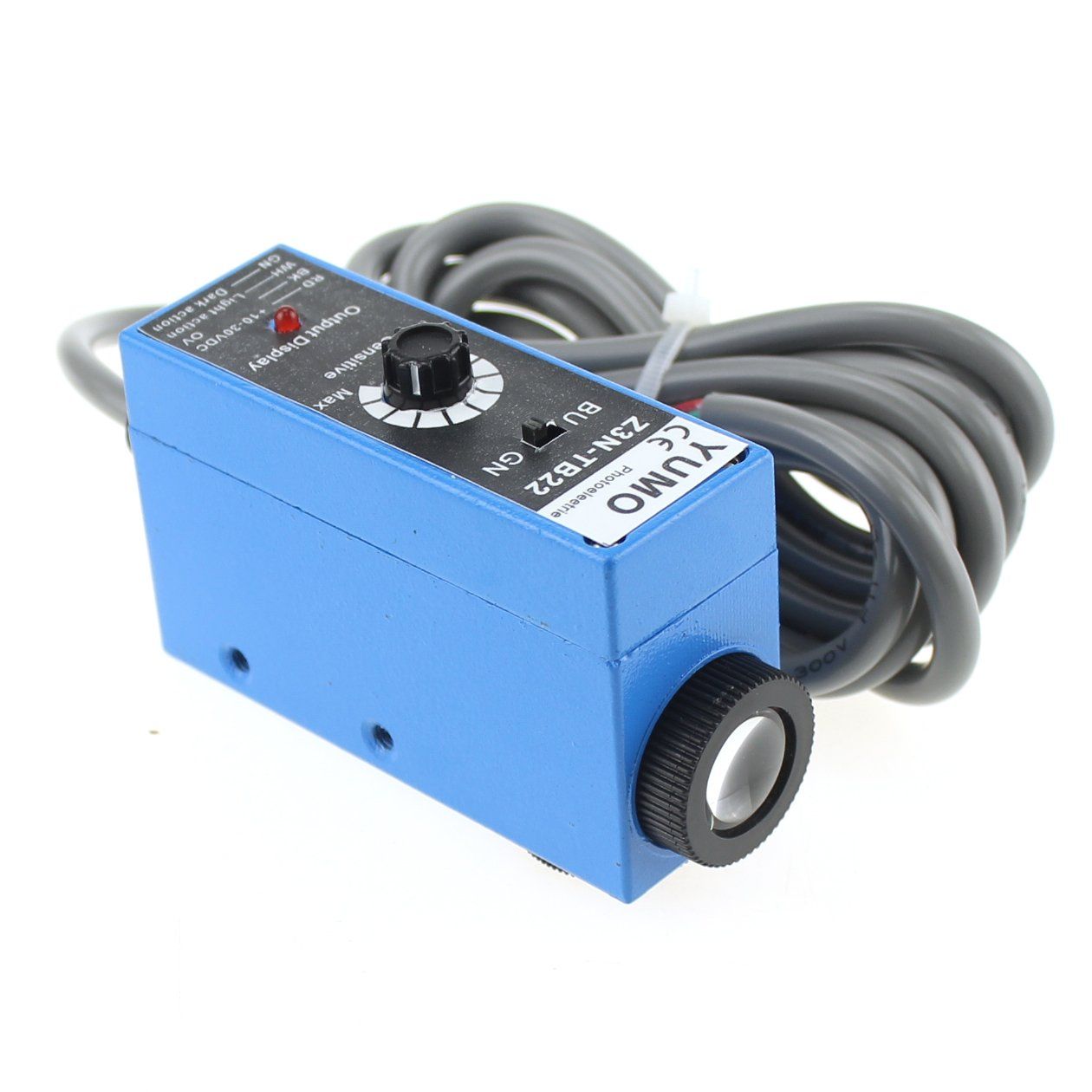

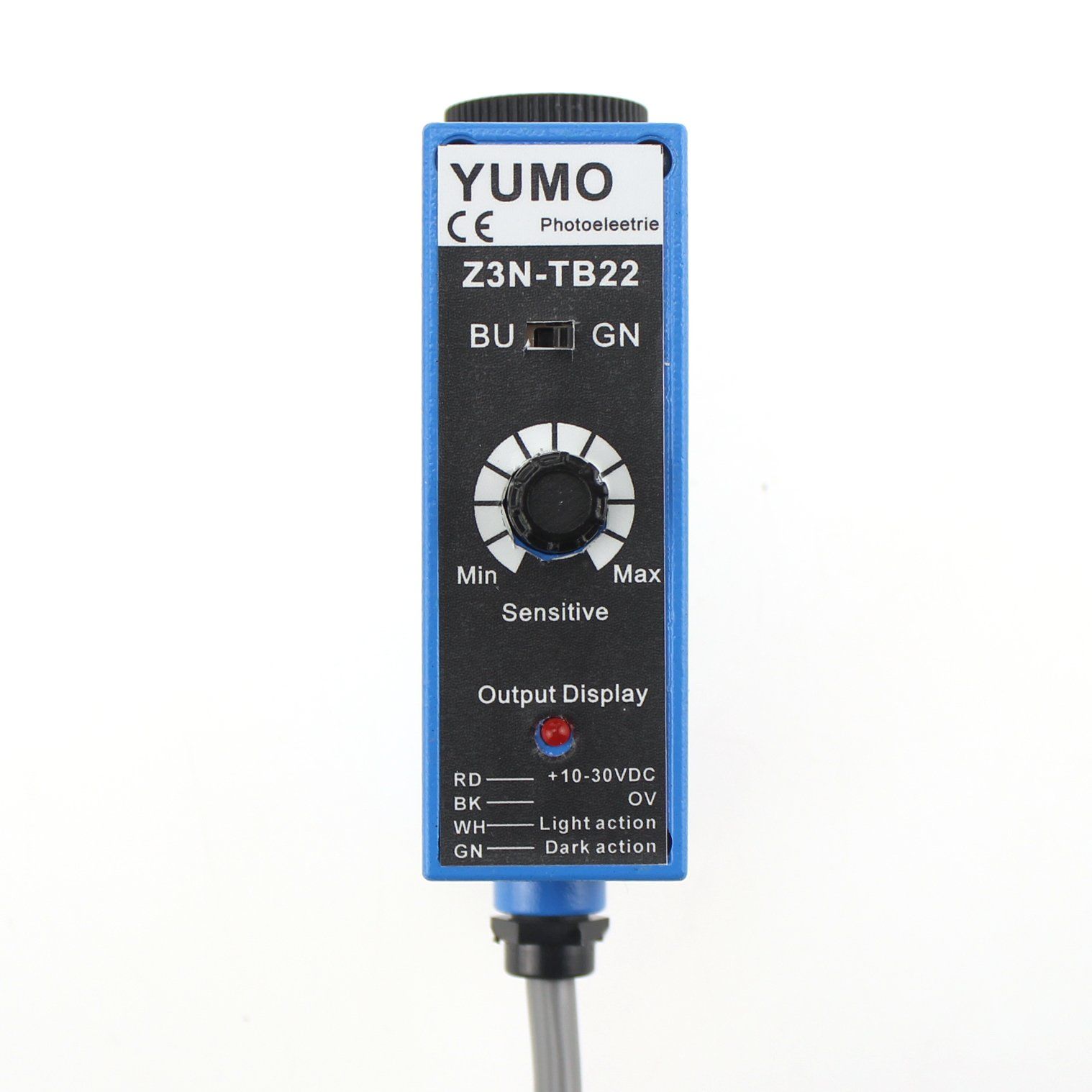

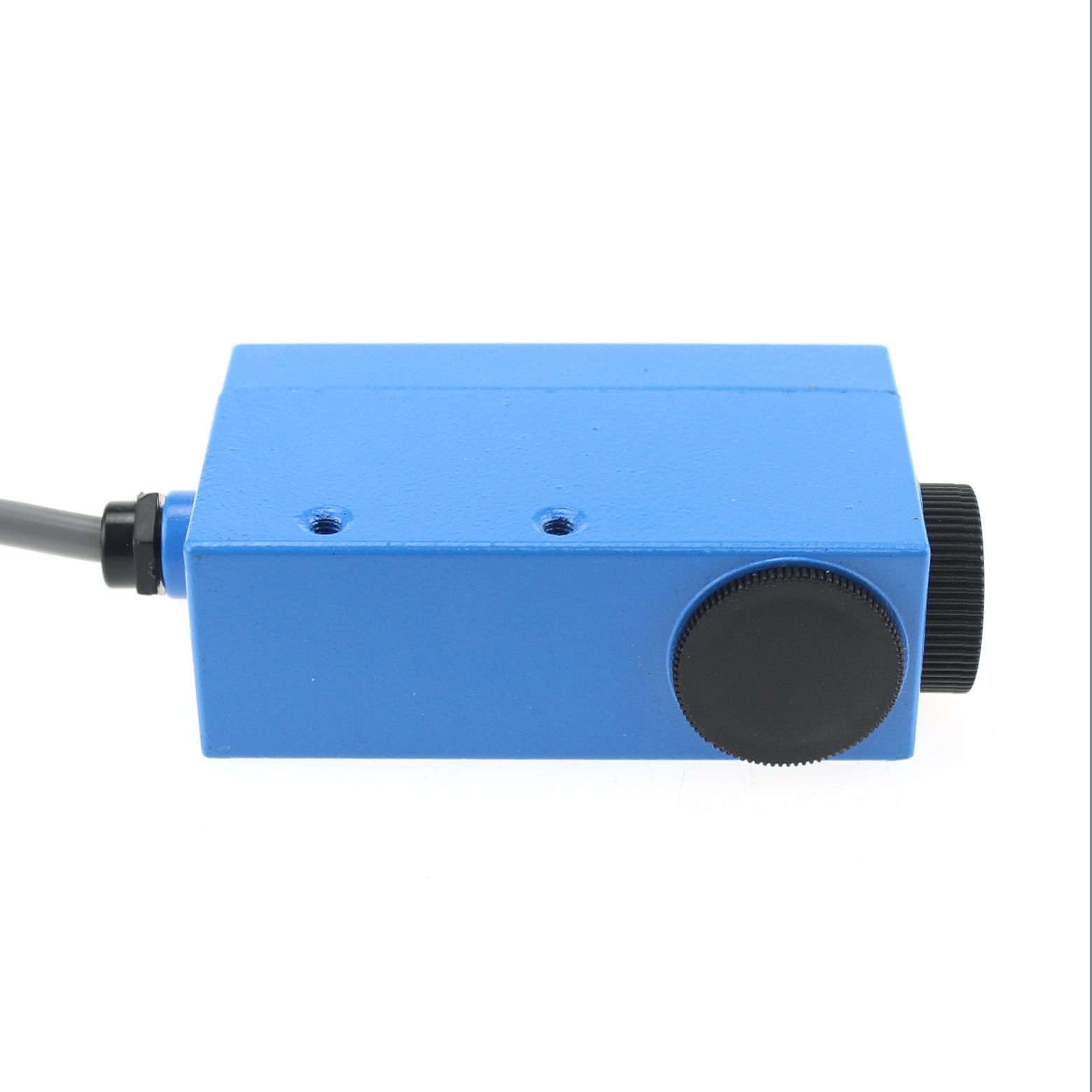

Product picture:
