0108 Channel Optical Fiber Demux Mux CWDM Multiplexer

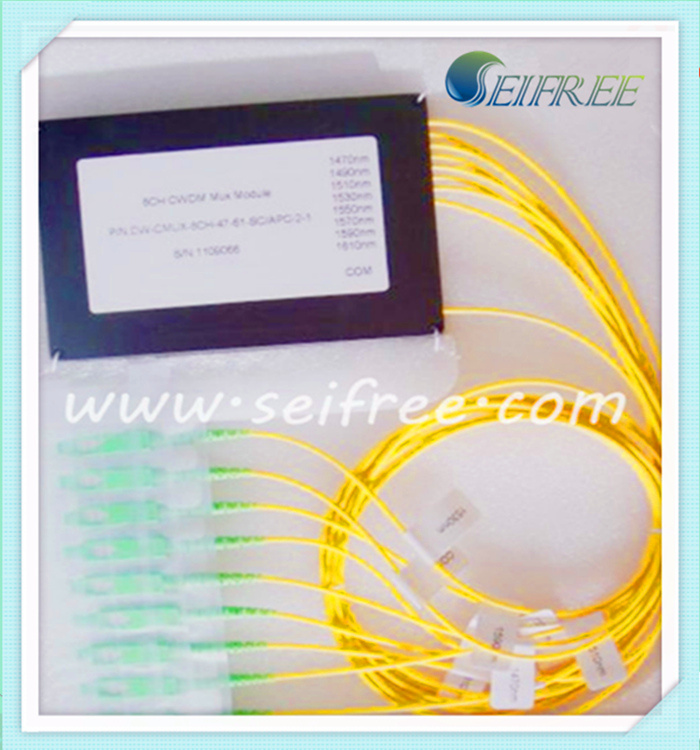

Name: 0108 Channel Optical Fiber Demux Mux CWDM Multiplexer
Brand: all-electronics-online.com
SKU: 698514872
Availability: InStock
Rating: 4.5 (110 reviews)

Price:	US $ 22.15-25.35/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SCWDM-MD-0108-470-E-2-10-B3-SA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Config:	Mux/Demux
Fiber Type:	SMF-28e
Length:	1m
Size:	1208018
Channel:	1470nm
Connector:	Sc APC
Port:	1*8
Diameter:	2mm
Channel Space:	20nm
Application:	Wdm System
Usage:	Laptop
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

Single Mode CWDM
The Single Mode CWDM Based on thin-film filters technology and epoxy-free optical patch. It has single or multi window. The devices are designed and manufactured to meet Telcordia GR-1209-CORE requirements and RoHS compliant.

Applications
Line Monitoring
Bi-Directional Systems
WDM Systems
CATV system

Features
Low Excess Loss
Wide Pass Band
High Reliability

Ordering Information
SCWDM-       -       -       -       -       -       -       -

Config.	Ports	First Channel	Fiber Type	Pigtail Dia.	Pigtail Length	Package	Connector Type
M=Mux	0102=1Com,2Out	270(1)=1270(1)nm	E=SMF-28e	09=0.9mm	05=50cm	A6	FU(A)=FC/UPC(APC)
D=Demux	0204=2Com,4Out	290(1)=1290(1)NM	B=SMF-28e XB	20=2mm	10=100cm	B2(3)	SU(A)=SC/UPC(APC)
MD=M&D			/	30=3mm		C2(3,4)
	0118=1Com,18Out	590(1)=1590(1)nm			20=200cm	D(1,2,3,4)	LU(A)=LC/UPC(APC)
	0218=2Com,18Out	610(1)=1610(1)nm		X=Customization

Package and Mounting Dimension (mm)

Stainless Steel Tube (A)

Plastic Box (B)

Aluminum alloy Box (C)

Aluminum alloy Rack (D)

Outline

Mounting

Outline

Mounting

Outline

A1=Φ3x50

A5=Φ5.5x34

B1=90x20x9.5

50x12x2Φ3.2

C1=85x18x8.4

44.5x13x2Φ3

D1=129x29x160(LGX)

A2=Φ3x54

A6=Φ5.5x38

B2=100x80x10

70x73.5x4Φ3.2

C2=90x72x8

86x68x4Φ3

D2=129x58x160(LGX)

A3=Φ3x60

A7=Φ5.5x50

B3=120x80x18

80x74.5x4Φ3.2

C3=110x95x7.5

99x84x4Φ3.5

D3=485x43.5x230(19' Rack)

A4=Φ5x70

A8=Φ5.5x64

B4=141x115x18

100x106x4Φ3.2

C4=110x95x15

99x84x4Φ3.5

D4=485x87x230(19' Rack)

Item

M/D

M&D

X(CWDM Channel)+1(1310±50/EXP)

8+1

Bare Fiber/φ0.9 Stainless

φ0.9(φ2,φ3) Plastic Box

φ0.9(φ2/φ3) Aluminum Alloy Box

LGX

19 Inches Rack

Specification

Operating Wavelength(nm)	ITU-T Grid							Parameter	Unit	Value
Channel Space(nm)	20							Fiber Type	/	SMF-28e/ SMF-28e XB
Channel Number	1	2	4	8	8+1	16	18	Directivity	dB	>40
[email protected]	>14.0							Return Loss	dB	>40
Passband Flatness	<0.50							Pigtail Dia.	mm	0.25/0.9 / 2 / 3
Max IL(In->TX@λPB)	0.8	1.4	2.0	3.0	3.4	4.8	6.0	Pigtail Length	cm	>50
Max IL(In->Express@λother)	0.6	1.8	2.4	3.4	3.8	5.4	/	Power Handing	mW	<500
Isolation(Adjacent)	>30							Operating Tem.	ºC	-20~ +70
Isolation(Non-Adjacent)	>45							Storage Tem.	ºC	-40~ +85
Insertion Loss Temperature Sensitivity (dB/ºC)	<0.005							/
Wavelength Temperature Shifting(nm/ºC)	<0.002
PDL (Max)	0.1	0.1	0.15	0.2	0.2	0.25	0.3
