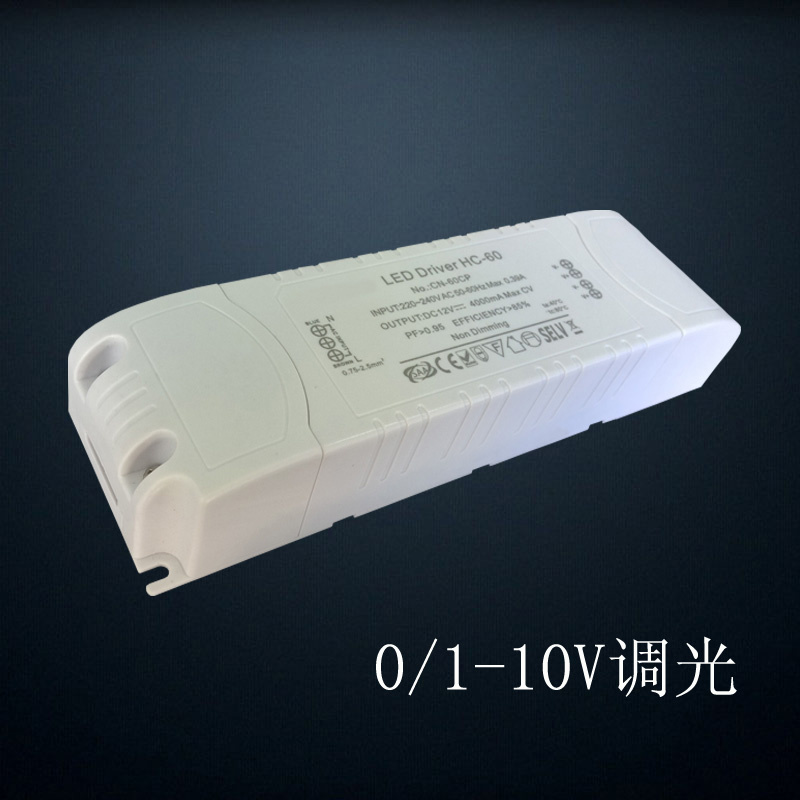

1-10V Driver Output 60W 4A Constant Voltage LED Driver

Prod Model:	0-10V-60W
Output Voltage:	12V 24V
Output Current:	4A 2.5A
Size:	170*50*31mm
Usage:	Light
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Conventional Step-down Transformer
Certification:	SAA

Product Description

Packaging Details
0-10v dimming led power supply:Neutral Package, or customer color box package upon requirements
Delivery Time
sample time:5 working days leading time:10-15 days


Specifications of 60w constant current led drivers

Model	0-10V-60
Input Voltage	100-240V
AC Frequency	50-60Hz
Output Mode	Constant Current
Output Voltage	32-65V	25-50V	19-38V	15-30V
Output Current	900 mA	1200mA	1500mA	1800mA
no-load voltage	78	60	46	36
Output Power	60W Max
Power Factor	>0.95
Efficiency	80%-86%
Dimensions	170*50*31mm
Operation Temperature	-30~45 degree
Storage Temperature	-40~70 degree
Thermal Dissipation	Nature
Relative Humidity	5~95%
Isolation Voltage	In/Out 3000VAC
Vibration	5-55hZ/2G,30Minutes
Life time	50000H,AT tc max

Specifications of 60w constant voltage led drivers

Model No.	0-10V-60
Input Voltage Range	100-240V/AC
AC Frequency	48-62Hz
Output Mode	Constant voltage
Output Current	4000ma 2500ma 1200ma
No Load   Voltage	12V  24V  48V
Output Power	60W     Max.
Power Factor	>0.95
Efficiency	>80%
Dimensions	170*50*31(mm)

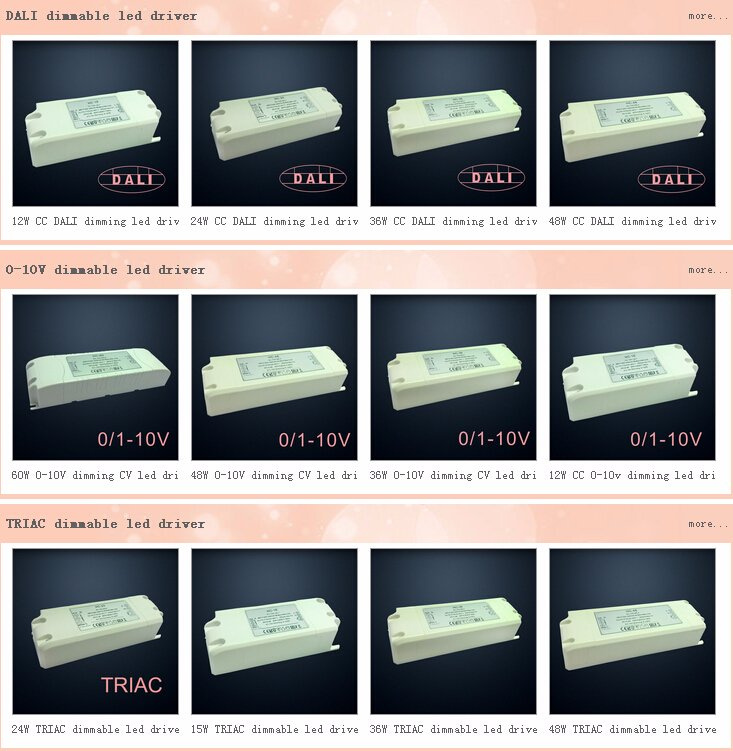

We have 12w 20w 30w 40w 60w 80w 100w 0-10v dimmable led driver.

Features

1.Advanced patent MCU dimming technology
2.Suitable for leading edge or tailing edge dimmers
3.Short cicuirt and over current and over voltage protection
4.FLCKER FREE,NOISE FREE
5.NO LIMIT REQUIREMENT FOR LOAD WATTAGE,load 1-100%
6.Conveniently connected terminals(screws)
7.ETL metal box,dimming range 1-100%
8.5 years quality Warranty



Trade Terms

1. Payment: T/T, Western Union and paypal;
2. Production lead time :500PCS: about 10 workdays, 1000PCS: about 15 workdays;
3. Sample can be delivered within 3days;
4. Shipping freight are quoted under your requests;
5. Shipping port: Shenzhen, Mainland China;
6. Discounts are offered based on order quantities;
7. MOQ: 1 pcs.

Packaging & Shipping
1. Shipping freight are quoted under your requests;
2. Shipping port: Shenzhen, Mainland China;
3. Bubble bag ,inner box,and carton etc,
  Neutral Package, or customer color box package upon requirements.


Package Contents:
1*Transformator LED Driver
Notes: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

We strive for 100% customer satisfaction! Positive Feedback is very important to us. If you have any questions, please feel free to contact us via "Ask seller a question" . We will reply your email within 24 working hours.
