Takfly Communications Co., Ltd. >> 1.25g Bidi SFP Optical Module Sc 20/40/60km SFP

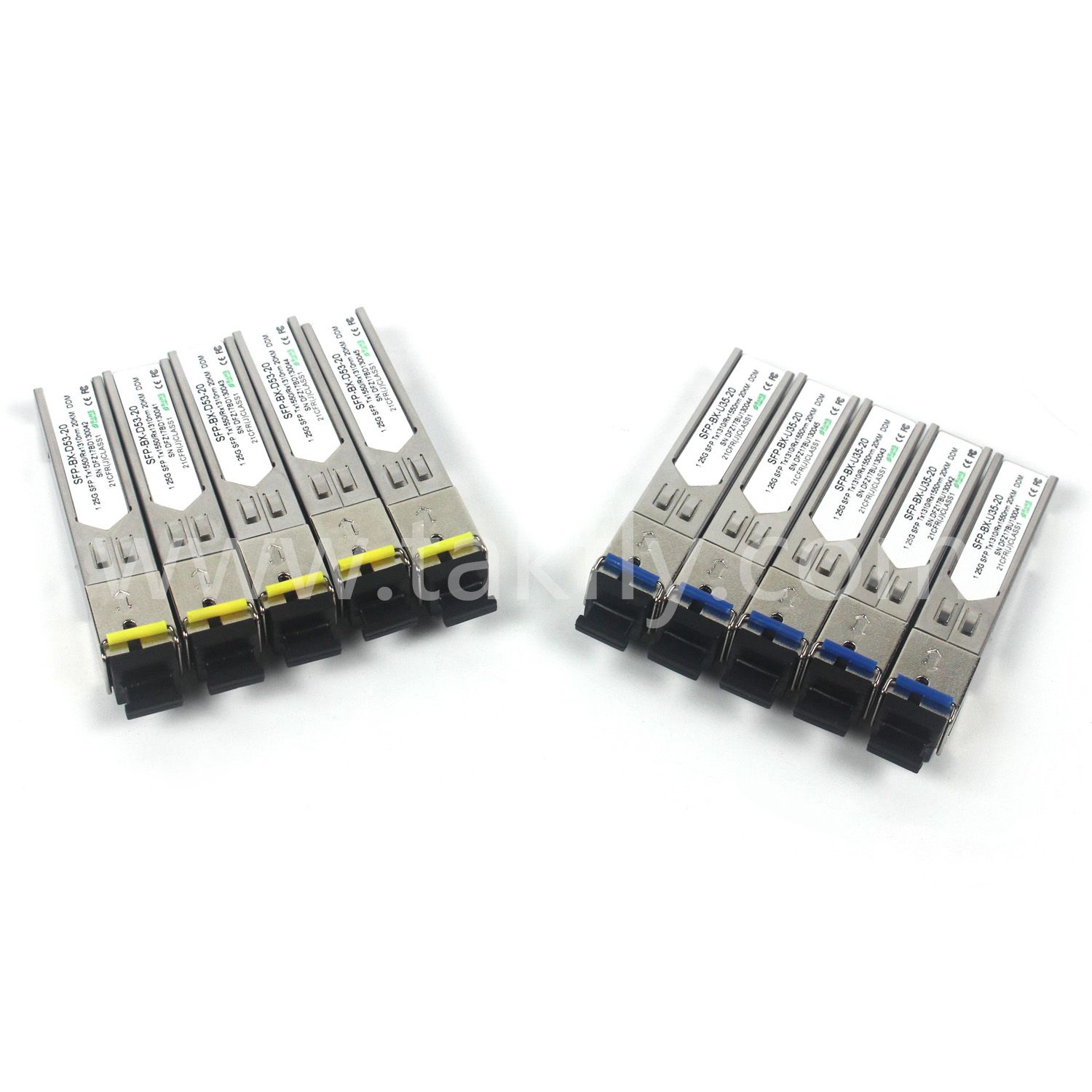

1.25g Bidi SFP Optical Module Sc 20/40/60km SFP

1.25g Bidi SFP Optical Module Sc 20/40/60km SFP
Price: US $ 5-20/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: SC sfp module
Item Name: SFP Module/Transceiver
Keywords: SFP Modules/SFP Transceiver
Interface: Sc
Working Speed: 10/100/1000m
Working Module: Sm
Fiber Type: Dual Fiber
Reach Distance: 20km
Customized: Available
Usage: Laptop
Type: Wired
Support Network: Ethernet
Information Content: Data
Certification: GS
Condition: New

Product Description

1.25g Bidi SFP Optical Module Sc 20/40/60km SFP


SFP Optical Transceivers are hot-swappable, compact media connectors that provide instant fiber connectivity for your networking gear. They are a cost effective way to connect a single network device to a wide variety of fiber cable distances and types.


1.25Gbps 20km  FR-DT SFP
Part number:DF-TK-1310-TR
Data rate : 1.25Gbps
Wavelength(Tx/Rx): 1310nm
Distance: 20km
Laser: FP
Fiber: SM
Optical Power: -9~ -3dBm
Sensitivity: ≤-24dBm






Feature
Up to 1.25Gbps bi-directional data links
Hot-pluggable SFP footprint
1310/1550 nm Fabry-Perot laser transmitter
Simplex SC connector
RoHS compliant and Lead Free
Up to 20 km on 9/125μm SMF
Metal enclosure for lower EMI
Single power supply 3.3V
Low power dissipation <500mW typical
Commercial operating temperature range: 0ºC to 70ºC


APPLICATIONS
1.25Gbps 1000Base-LX Ethernet
1.06 Gbps Fibre Channel
DF-TK-1310 Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE Std 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0. They are RoHS compliant and lead-free per Directive 2002/95/EC.


Spec
PRODUCT DETAILS
Device TypeSFP (mini-GBIC) transceiver module - RJ-45
Enclosure TypePlug-in module
Dimensions (WxDxH)1.4 cm x 7.1 cm x 1.4 cm
Cabling Type1000Base-T
Data Transfer Rate1 Gbps
Data Link ProtocolGigabit Ethernet
Max Transfer Distance120 Km
Compliant StandardsIEEE 802.3
Manufacturer Warranty1 years warranty
Designed ForCisco 5508; Catalyst 2970G-24, 3560-12, 3560-24, 3560-48, 3560E-12, 3560E-24, 3560E-48, 3560G-24, 3560G-48, 3560X-24, 3560X-48, 3750-24
GENERAL
Device TypeSFP (mini-GBIC) transceiver module
Enclosure TypePlug-in module
Width1.4 cm
Depth7.1 cm
Height1.4 cm
NETWORKING
Connectivity TechnologyWired
Cabling Type1000Base-T
Data Link ProtocolGigabit Ethernet
Data Transfer Rate1.25 Gbps
Max Transfer Distance100 m
FeaturesHot swap module replacement, auto-uplink (auto MDI/MDI-X)
Compliant StandardsIEEE 802.3
EXPANSION / CONNECTIVITY
Interfaces1 x network - Ethernet 1000Base-T - RJ-45
Compatible Slots1 x SFP (mini-GBIC)
ENVIRONMENTAL PARAMETERS
Min Operating Temperature0 °C
Max Operating Temperature70 °C

About Takfly




Any query about this sfp module transceiver,please leave me an inquiry or contact me directly.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

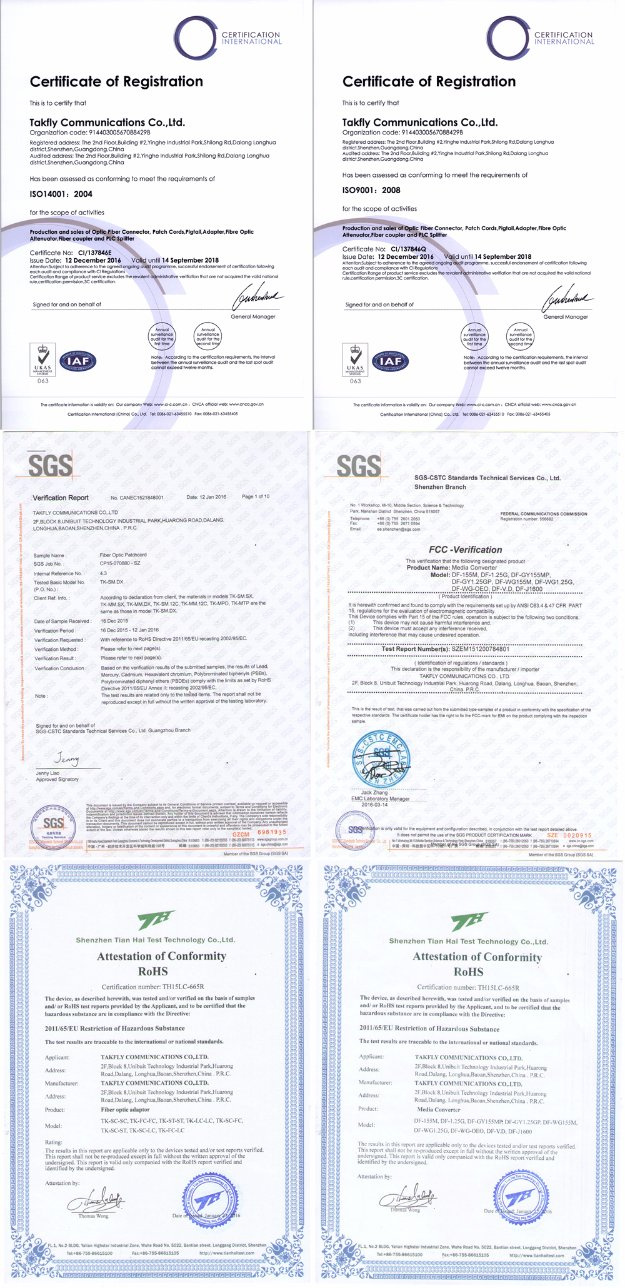

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
