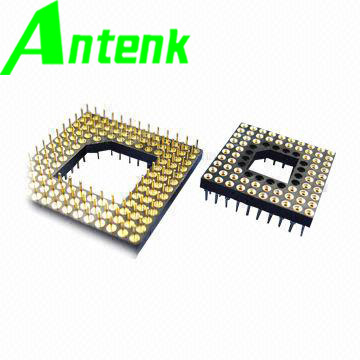

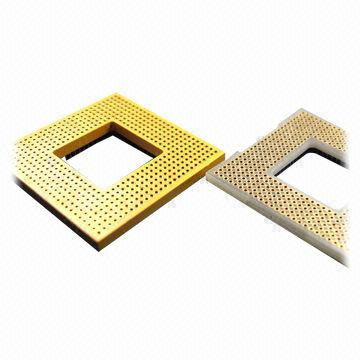

1.27/2.54mm PGA Socket Adapters, Solder Type PGA Connector

Name: 1.27/2.54mm PGA Socket Adapters, Solder Type PGA Connector
Brand: all-electronics-online.com
SKU: 721382325
Availability: InStock
Rating: 4.7 (142 reviews)

Price:	US $ 0.25/Piece
Trade Terms:	FOB,CIF,FCA
Min Order:	500/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PGA Socket Adapter 001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Type:	High Voltage Coaxial Connectors
Coupling Mechanism:	Double Bayonet Plug-in

Product Description

Specifications:
Pitch:1.27, 2.54mm
Pitch:1.27 X 1.27, micro PGA sockets, female pin L = 4.85/5.15/5.50/8.25mm, male pin L = 9.79mm
Pitch:2.54mm, female pin L = 7.40, male ping L = 10.0mm
Position:68 to 1,000 pins
Pin (outer sleeve):Brass, machined and CuZn36Pb3
Clip (contact 6 fingers):Beryllium copper and heat treated
Plating (outer sleeve):
Tin-plated:2u M (80u-inch) and 5u M (200μ-inch)
Gold-plated:2u M (80u-inch) and gold full
Plating (contact):2u M (80u-inch) and gold or tin plating
Insulator body (black):Glass filled thermoplastic polyester UL94V-0
Mechanical lifespan:100 cycles (minimum)
Rated current:1A
Contact resistance:10M (maximum)
Dielectric strength:500V RMS (minimum)
OEM and ODM orders are welcomed

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
