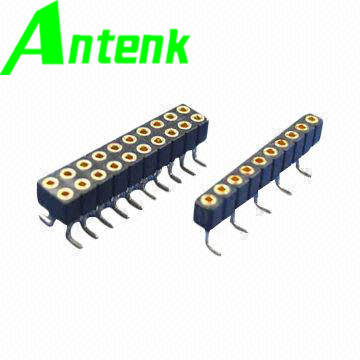

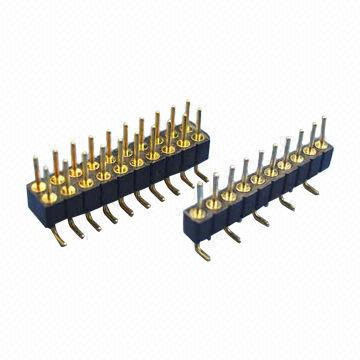

2.0mm Machined Sockets and Adapters, SIP&DIP Type

Name: 2.0mm Machined Sockets and Adapters, SIP&DIP Type
Brand: all-electronics-online.com
SKU: 721381965
Availability: InStock
Rating: 4.3 (121 reviews)

Price:	US $ 0.02/Piece
Trade Terms:	FOB,CIF,FCA
Min Order:	500/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Machined Sockets and Adapters 003
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Type:	High Voltage Coaxial Connectors
Coupling Mechanism:	Double Bayonet Plug-in

Product Description

Specifications:
Pitch:1.27/1.778/2.0/2.54mm
Plastic height:7.0/3.0/1.9/1.2mm
Straight, right angle and SMT
Position:1 X 1-1 X 40-pins and 2 X 1-2 X 40-pins
Pin length:3.94 to 25.90mm
Pin (outer sleeve):Brass, machined and CuZn36Pb3
Clip (contact 4/6 fingers):Beryllium copper and heat treated
Plating (outer sleeve):
Tin-plated:2u M (80), 5u M (200mu)
Gold-plated:2u M (80&mu), gold full
Plating (contact):2u M (80&mu), gold or tin plating
Insulator:Black glass filled polyester PPS-GF30-FR
Flammability:UL 94V-0
Mechanical life:Min 500 cycles
Current rating:3AMPS/Contact max
Contact resistance:Max 10m
Dielectric strength:Min 1,000VRMS
Outer packing:Box and cartons
OEM and ODM orders welcome
