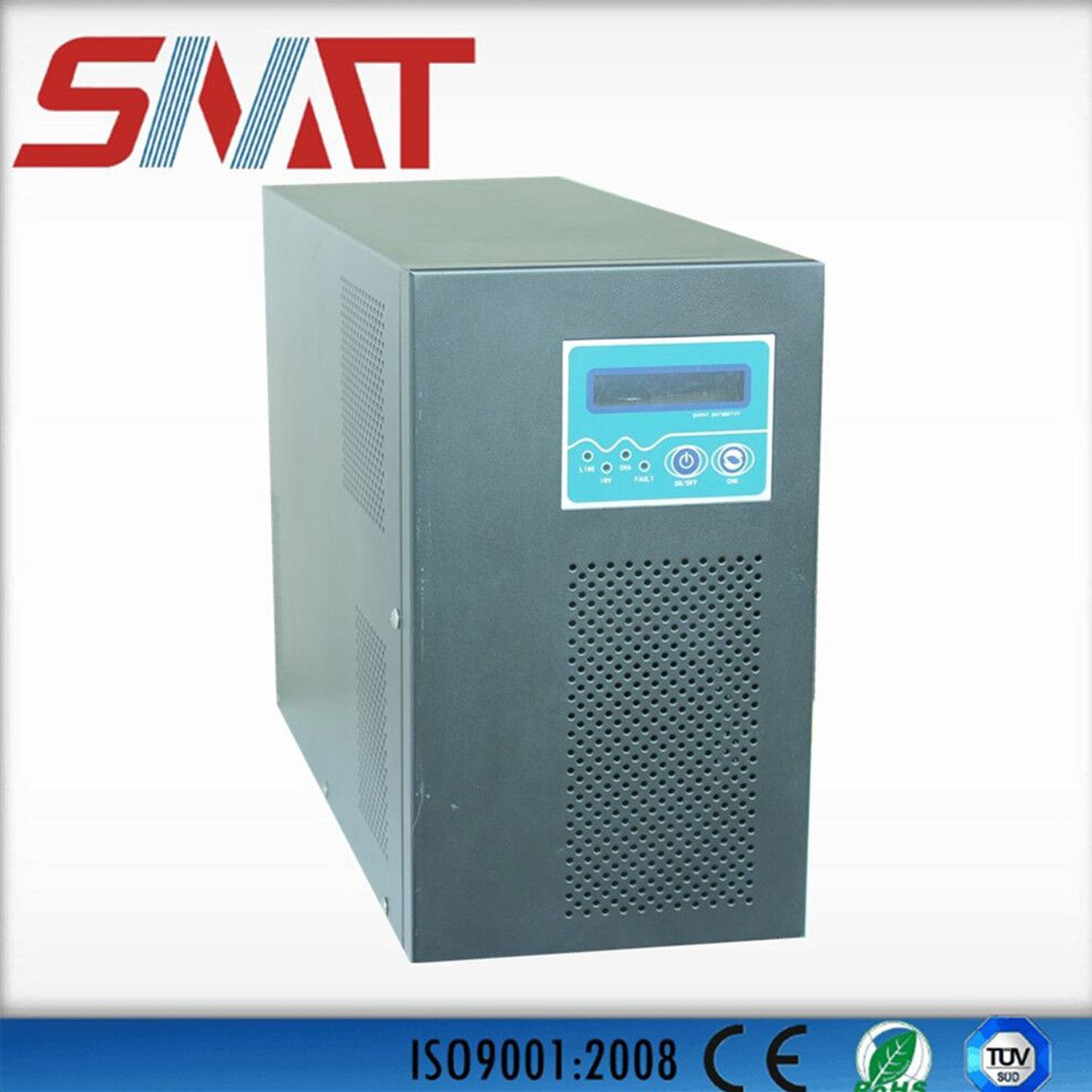

1.5kw 24/48V Pure Sine Wave Inverter with MCU Control

Name: 1.5kw 24/48V Pure Sine Wave Inverter with MCU Control
Brand: all-electronics-online.com
SKU: 710230452
Availability: InStock
Rating: 4.5 (124 reviews)

Price:	US $ 155-165/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FI-1500
Size:	446175300mm
Weight:	22.2kg

Product Description

Product overview:
The product applies to different types of loads because of its full digital design and real pure sine wave output. With power-frequency design and highly stable output voltage and frequency, it can operate continuously for a long time. Thus, it avoids the disadvantages of direct use of the mains supply, such as interruption of power supply, voltage instability, noise, and lighting attacks, and the disadvantage of short power supply time of small inverter supplies, guaranteeing continuous and reliable operation for electrical equipment. Sine wave inverter supplies are the best guarantee for the safe and reliable operation of systems. The product is now widely used in China Telecom, China Mobile, China Unicom, aerospace, railways, financial management, office automation, industrial automatic control, medical health, military scientific research, etc.
Main features:
+ Excellent performance because of an MCU intelligent control technology
+ A wide range of applicable loads because of power-frequency transformer design and pure sine wave AC output
+ Personalized digital communication via and an intelligent RS232 interface
+ A wide range, high accuracy, and full automatic voltage stabilization
+ Overall protection functions(overload protection, short circuit protection, overvoltage protection, under voltage protection and over temperature protection)
+ Simple LEDs and a LCD for visualization of operation status of the equipment
+ Use with generators because of high adaptability to power grids
+ A longer battery life because of intelligent battery management and overcharge protection

Model:FI-	1.5KW
Rated power	1500W
DC voltage	24VDC/48VDC
Input voltage	160-265VAC
Input frequency	45-65Hz
Output voltage	220VAC±5%
Output frequency	50Hz±1%
Switching time	5ms
Charge current	Max 15A
Inverter output protection	Input overvoltage/undervoltage protection, DC undervoltage protection, peak surge protection, overload protection:110-120%, 30s; >120%,100ms; >150%, 50ms; output short circuit<150μs
Noise	<45dB
Ambient temperature for operation	0-40ºC
Ambient temperature for storage	-15-+50ºC
Relative humidity for operation/strorage	0-90%(no condensation)
Altitude for operation	0-3,000m
Altitude for storage	0-15,000m
