1.8 Degree 2 Phase Stepper Motor NEMA 17 3D Printer Spare Parts 17jh2413-01 Roll Axis with Ce and ISO9001

1.8 Degree 2 Phase Stepper Motor NEMA 17 3D Printer Spare Parts 17jh2413-01 Roll Axis with Ce and ISO9001
Price: US $ 6-8/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: 17JH2413-01
Color: Black
Weight: 220g
Key Words: Stepper Motor
Step Angle: 1.8
Phase: 2phase
Export: Global
Brand Name: Jh Stepper Motor
Number Of Stator: Two-Phase
Excitation Mode: HB-Hybrid
Type: Electromechanical
Function: Motor
Brand: Jh

Product Description

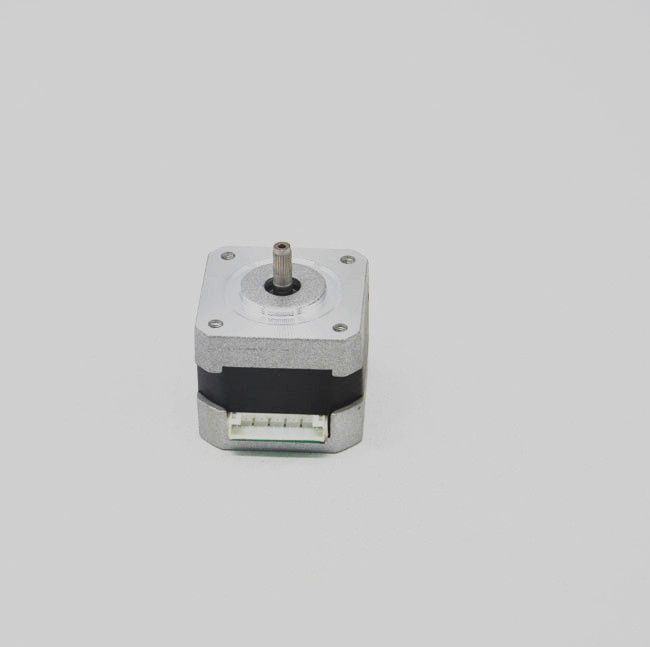

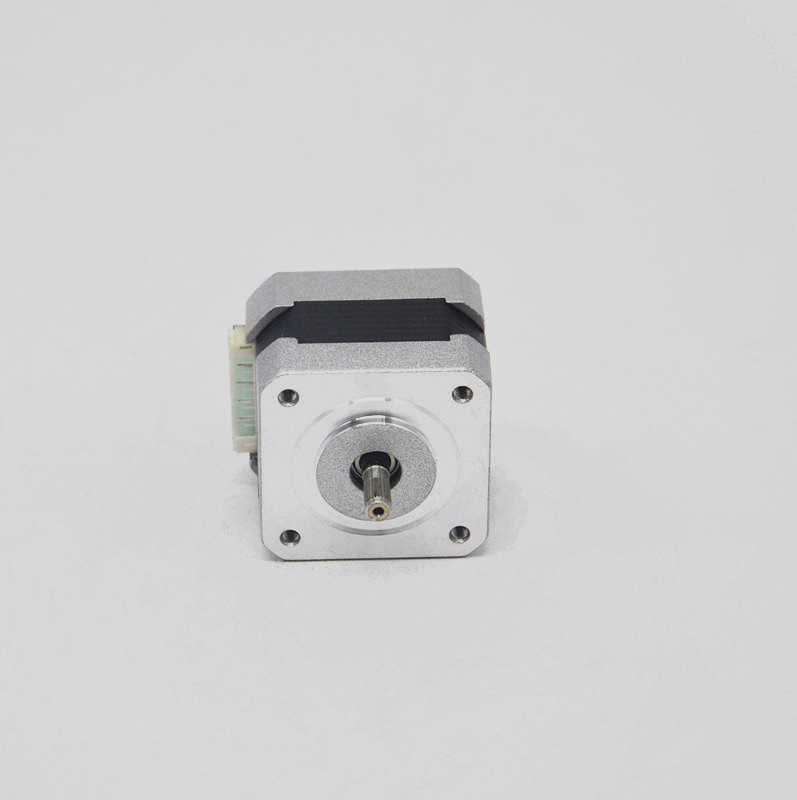

Nema 17 Stepper Motor 17JH2413-01 Single Flat with CE and ISO9001

Place of Origin: Jiangsu China (Mainland)                                             Brand Name: JH stepper motor
Model Number: 17Jh4212                                                                                Phase: 2            Type: Hybrid
Certification: CCC, CE, ISO, ROHS, UL, ISO9001                                 Step Angle(degrees): 1.8degree

Holding Torque: 2.2Kg.cm                                                                 stepper motor Current / Phase: 0.95A
Length: 34mm                                                                            Place of Origin ofstepper motor: Changzhou, China Brand Name of stepper motor: JH                   Certification of stepper motor: CE,ROHS ,ISO9001
MOQ of stepper motor: 1PCS                                                              Packaging Details: EXPORT CARTON
Payment Terms: T/T,L/C, PAYPAL, Western union                                   Supply Ability: 100000pcs/month
HS code of stepper motor: 8501109990                                                                              shaft:5MM*24MM






Description:

1.8degree Size 42mm Hybrid stepper motor. 3D Printer stepper motor

42mm size stepper motor , NEMA17 stepping motor,

Small stepping motors, 2 phase 42mm stepper motor, Stepper motor 42mm size

Hybird Stepper Motors

1) CE and RoHS approved

2) We can develop customer design version


Model No.
Step distance
Motor Length
Current

/Phase
Resistance

/Phase
Holding Torque
# of Leads
weight
Mm/step
(L)mm
A
Ω
Kg.cm
No.
g
17JH2413-01
1.8
34
0.95
2.1
170
four  star narrow  insertion
220

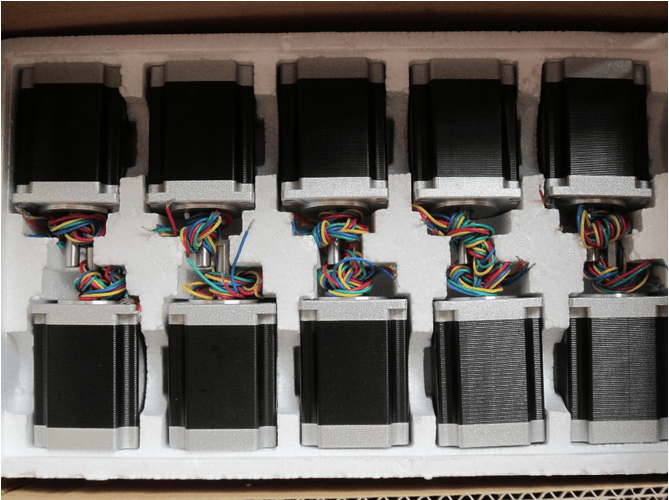

Packing





Application


FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Welcome  to  our  company

contact name :Fanny Liu














Changzhou JiangHua electric appliance Co., Ltd is located in changzhou qi shuyan, north near Shanghai-nanjing expressway, south meets the 312 national highway, the traffic is very convenient.

Our company specializing in the production of stepping motor with many years of production experience, the product in Beijing, Shanghai, zhejiang and southern region is very popular in the customer high praise. With advanced production equipment, precision testing equipment, exquisite production process.

The company pays attention to the enterprise image, the new products constantly, breed is expanding, continuous improvement technology. The company will continue to with more excellent professionalism dedicated to our machinery equipment industry.

The company continued the effective operation of ISO9001 quality management system, excellent production equipment and advanced production processes, complete test means, perfect service system, will provide our customers with excellent products and services.

Our company carries out the "business-oriented to the letter, walk the world shengwalunding paying court" as our tenet, following the mutual reciprocity and mutual benefit spirit and their clients to establish long-term friendly cooperative partnership. Today's efforts, tomorrow's success, let us cooperate, create together fine tomorrow!
