1.8 Degree NEMA 17 High Torque Stepper Motor, 42mm Hybrid Stepping Motor for Packaging Machinery

Name: 1.8 Degree NEMA 17 High Torque Stepper Motor, 42mm Hybrid Stepping Motor for Packaging Machinery
Brand: all-electronics-online.com
SKU: 835103935
Availability: InStock
Rating: 5 (36 reviews)

Price:	US $ 4.7-5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	17JH 4212
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Brand:	Jh

Product Description

Nema 17 small /micro permanent magnet stepper motor apply for 3d printer motor and robot in china manufacture

Place of Origin: Jiangsu China (Mainland) Brand Name: JH stepper motor

Model Number: 17Jh4212 Phase: 2 Type: Hybrid

Certification: CCC, CE, ISO, ROHS, UL, ISO9001 Step Angle(degrees): 1.8degree

Holding Torque: 2.2Kg.cm stepper motor Current / Phase: 0.95A

Length: 34mm Place of Origin ofstepper motor: Changzhou, China Brand Name of stepper motor: JH Certification of stepper motor: CE,ROHS ,ISO9001 MOQ of stepper motor: 1PCS Packaging Details: EXPORT CARTON

Payment Terms: T/T,L/C, PAYPAL, Western union Supply Ability: 100000pcs/month

**HS code of stepper motor: 8501109990 shaft:5MM*24MM**

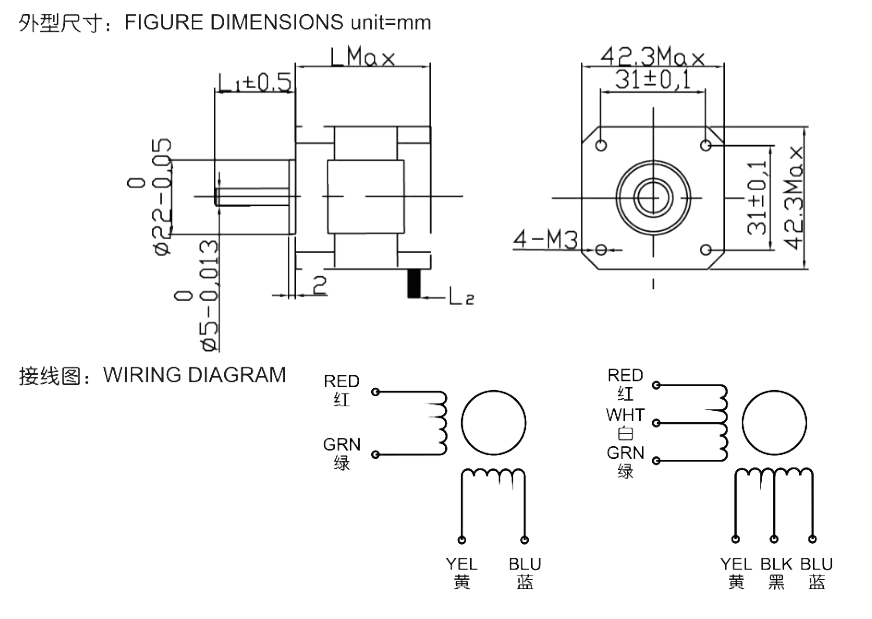

specification

Model No.	Step distance	Motor Length	Current /Phase	Resistance /Phase	nductance /Phase	Holding Torque	# of Leads	Detent Torque	weight
Model No.	Mm/step	(L)mm	A	Ω	mH	Kg.cm	No.	g.cm	g
17Jh4212	1.8	34	0.95	2.1	2.3	2.2	six star wide socket	170	220

Certifications

Packing & delivery

Export Standard Carton / Wooden Case /

Application

Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,

advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.

Cnc router stepper motor.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us as below:

Welcome to our company

contact name :Fanny Liu

Changzhou JiangHua electric appliance Co., Ltd is located in changzhou qi shuyan, north near Shanghai-nanjing expressway, south meets the 312 national highway, the traffic is very convenient.

Our company specializing in the production of stepping motor with many years of production experience, the product in Beijing, Shanghai, zhejiang and southern region is very popular in the customer high praise. With advanced production equipment, precision testing equipment, exquisite production process.

The company pays attention to the enterprise image, the new products constantly, breed is expanding, continuous improvement technology. The company will continue to with more excellent professionalism dedicated to our machinery equipment industry.

The company continued the effective operation of ISO9001 quality management system, excellent production equipment and advanced production processes, complete test means, perfect service system, will provide our customers with excellent products and services.

Our company carries out the "business-oriented to the letter, walk the world shengwalunding paying court" as our tenet, following the mutual reciprocity and mutual benefit spirit and their clients to establish long-term friendly cooperative partnership. Today's efforts, tomorrow's success, let us cooperate, create together fine tomorrow!
