1 Phase 8way 18way Metal Distribution Box 2cab

Prod Model:	2CAB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mterial:	Steel Sheet and Copper Fittings
Packing Type:	Carton
Way No.:	8, 10, 12, 14, 16, 18
Standard:	IEC60947-3
Type:	Distribution Metering Box
Structure:	Protection
Certification:	Ce and RoHS
Shell Protection Grade:	IP66
Brand:	Chana

Product Description

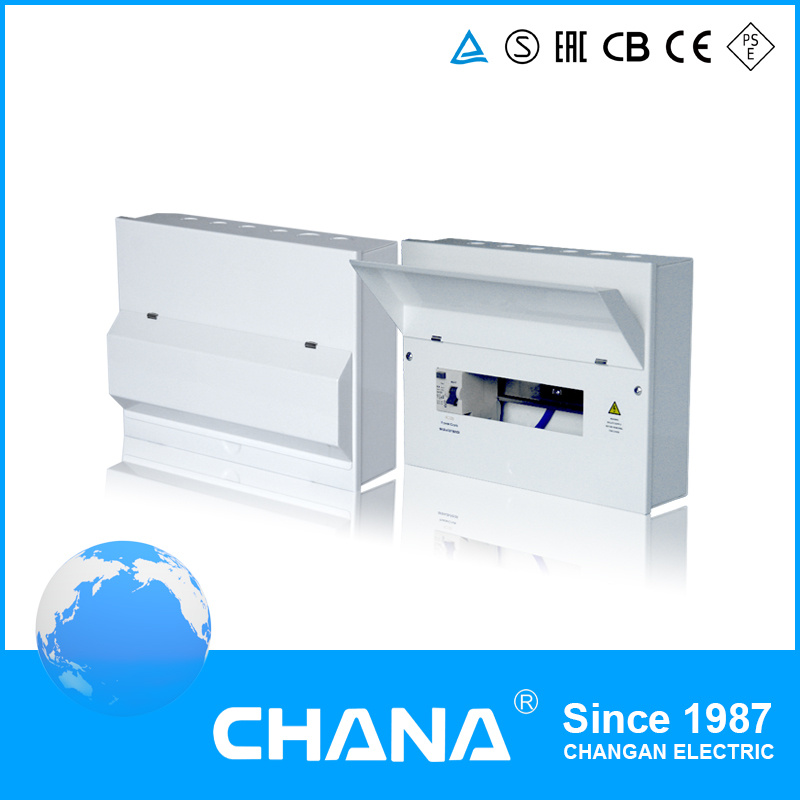

2CAB Series 1 Phase Distribution Box

Description
2CAB series 1 phase distribution box is designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial installation.
Steel sheet and copper fitting inside
Protected with epoxy polyester coating
Color: RAL7032 or RAL7035
Standard: IEC 60947-3

Specification

Model	Way No.	Dimension (mm)						Terminal configuration
		H	W	D	D1	W1	H1	N	E
2CAB8	8	240	240	102	78	186	154	9*1	10*1
2CAB10	10	240	276	102	78	214	154	11*1	12*1
2CAB12	12	240	312	102	78	250	154	13*1	14*1
2CAB14	14	240	348	102	78	286	154	9*2	16*1
2CAB16	16	240	384	102	78	323	154	9*2	18*1
2CAB18	18	240	414	102	78	352	154	11*2	20*1

Company Profile
Changan Group Co., Ltd, Established in 1987, comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 30years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,
Contactor, Relay, Switch, Solar Inverter etc..

1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Europe, South America, Mid-east and Africa Market.
