10.5kv 2000kw Dry Type Dummy Load Banks

Name: 10.5kv 2000kw Dry Type Dummy Load Banks
Brand: all-electronics-online.com
SKU: 829363985
Availability: InStock
Rating: 4.7 (139 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	AC10.5KV-2000kW
Voltage:	AC10.5kv
Frequency:	50Hz
Rated Power:	2000kw
Insulation Grade:	F Class
Protection Grade:	IP54
Fan Working Voltage:	AC380V/50Hz, 3 Phases 5 Wire
Weight:	6000kg

Product Description

10.5kV 2000kW Dry Type Dummy Load Banks

1.Product Introduction

10.5kV 2000kW Dry Type Dummy Load Banks

High voltage load bank,the optional voltage range is 6.6KV~35KV,can be directly used for large high voltage generator,

need not to be equipped with conventional step-down transformer.We can also provide regular load bank for high voltage

equipment,need to use step-down transformer together.

2. 10.5kV 2000kW Dry Type Dummy Load Banks Application

Large generator system testing in ocean engineering, drilling facilities,ship construction etc field

Factory testing for generator, static voltage characteristic test, speed characteristic test;

Marine generator overload protection test,parallel operation test,reverse power and reverse current protection test

Assist shipyard in mooring test,sea trial test

Assist with the acceptance of the vessel generator test

Eliminate the carbon deposition of generator

As the generator loading system

Periodic running test for standby generator

UPS inspection and maintenance

Ship battery charging/discharging system testing

The acceptance of new system and testing of servicing equipment

3. 10.5kV 2000kW Dry Type Dummy Load Banks Working Environment

Altitute:≤2500m

Temperature:-10°C~50°C

Humidity:≤95%RH

Working Mode:Continuous work(>6hours continuous long-term work per day)

4. 10.5kV 2000kW Dry Type Dummy Load Banks Technical Specifications

System Parameters (Single set)
Rated Voltage/ Frequency	AC10.5KV/50Hz, 3 phases 3 wire
Installer Capacity	2000kW
Step Load	200KW, 450KW, 450KW, 450KW, 450KW, 5 steps
Power Factor (PF)	1
Load Tolerance	5%
Display Precision	0.5 grade
Control Power Supply	AC380V/50Hz, 3 phases 5 wire
Insulation	F
Max Protection Grade	IP54
Working Mode	Continuous
Cooling	Forced air cooling, Horizontal inlet air, Vertical cooling
Casing Structure	Standard 20 feet container, with a ladder to top
Transportation	Hoisting, there are lifting lugs in top of casing
Dimension	6058mm×2438 mm×2591mm
Weight	About 6000kg
Working Environment Parameters
Ambient Temperature	-20ºC~+55ºC
Relative Humidity	≤95%
Altitude	≤2500 meters
Atmospheric Pressure	86~106kPa
Working Temperature	Temperature inside container: less than 35ºC,forced-air cooling

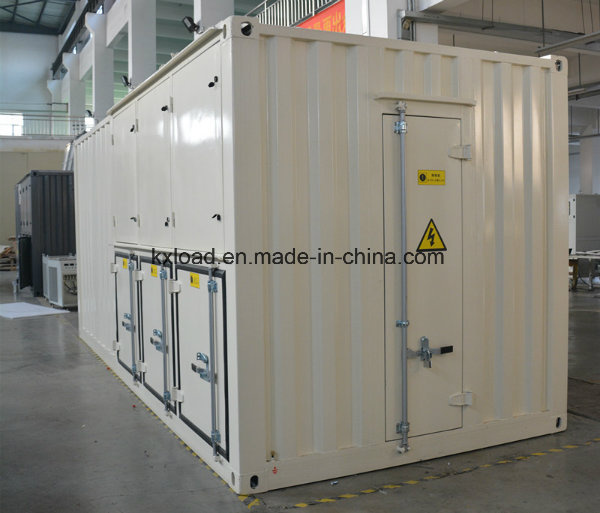

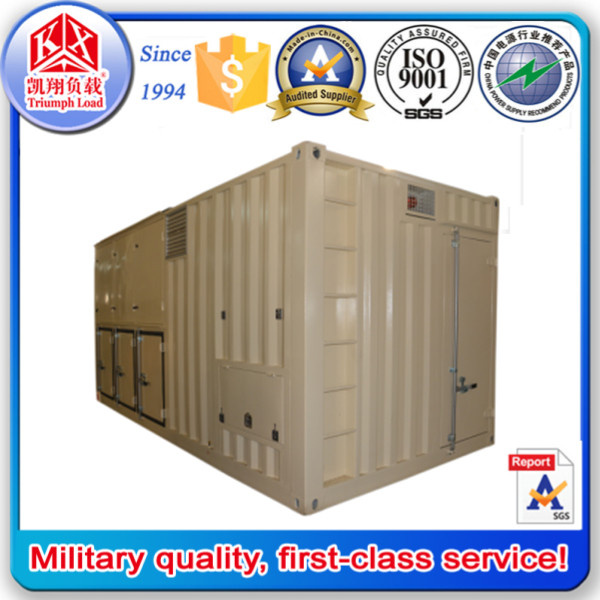

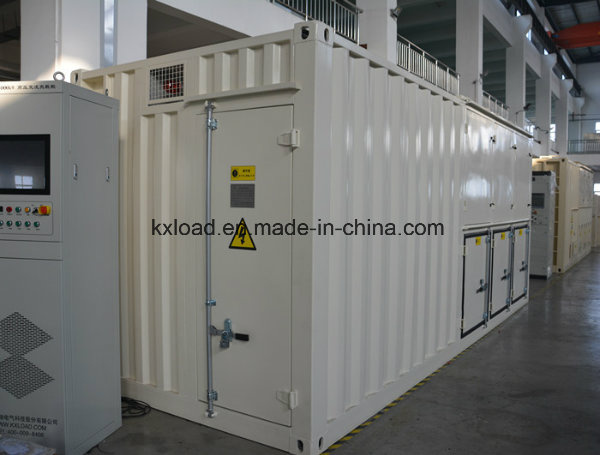

5. 10.5kV 2000kW Dry Type Dummy Load Banks Overall Appearance

5. Why choosing us
The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
The most patent technology and scientific research awards gainer in China.
Advanced detection method and strict inspection procedure build the qualified quality.
Customized production meet the individual requirement.
Prompt delivery & excellent after sales service.
Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
