AC DC Resistive Load Bank for Generator UPS Battery Testing

Name: AC DC Resistive Load Bank for Generator UPS Battery Testing
Brand: all-electronics-online.com
SKU: 702932422
Availability: InStock
Rating: 5 (111 reviews)

Price:	US $ 3000-50000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	AC/DC Load Bank
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Load Voltage Type:	AC/DC
Load Wire Connection:	1 Phase/3 Phase 3 Line/3 Phase 4 Line
Load Voltage(DC):	48V,96V,110V,220V,400V etc
Discharging Current:	50A,100A,150A,200A,300A,600A etc
Load Voltage(AC Low Voltage):	200V,380V,400V,440V,690V,900V etc
Load Voltage(AC High Voltage):	1.2kv,3.3kv,6.6kv,10.5kv,13kv,35kv,80kv
Frequency:	50Hz,60Hz,400Hz,1000Hz,2000Hz Ect
Power Factor:	Adjustble
Cooling:	Forced Air Cooling
Control Mode:	Manual or Software

Product Description

Compact and Lightweight design that is ideal for moving from job site to job site or within your facility.

Introduction

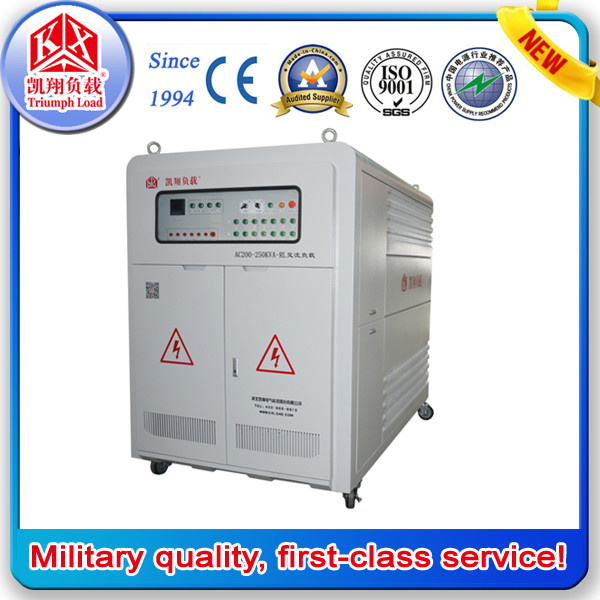

Resistive load bank is a device which can simulate the real-life resistive loads and provides a rigorous test regime for power supplies from 1kW to 60MW.The "load" of a resistive load bank is created by the conversion of electrical energy to heat by power resistors. It mainly used to test and maintenance of Engine Generators, Storage Battery Systems, UPS Systems, Inverters, Ground Power Units, Auxiliary Power Units, Aircraft Power Generators, Wind Generators, Hydro Generators etc.

Resistive load bank are available in stationary type for permanent installation or portable type with lifting rings, castors. Larger load banks, typically above 1250KW, are based on an ISO container construction. Special finishes including custom paint colors and stainless steel casings can be supplied.

Technical Parameters of AC Resistive Load Bank(Load Bank for Generator Testing)

Model	Installed Capacity	Power Factor	Load Voltage	Dimension *WDH(mm)*	Weight(kg)
AC400-20k	21kw	1	3 phase 400V 50HZ/60HZ	480485680	30
AC400-100k	110kw			700900900	80
AC400-200k	210kw			120015001500	200
AC400-500k	510kw			146019801800	750
AC400-1000k	1010kw			160024002100	1500
AC400-2000k	2010kw			605824382591	5000
AC400-3000k	3010kw				7000
AC400-4400k	4410kw				8000

The parameters is only for reference, pls contact supplier for exact information

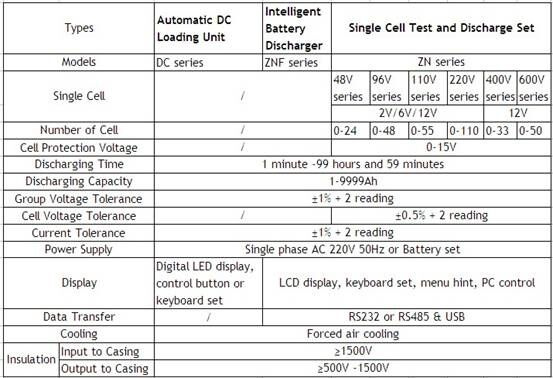

Technical Parameters of DC Resistive Load Bank(Battery Discharger)

Pictures of Kaixiang Company

What we can do

1. Professional technical team with more than 20 years design experience.

2. Customized technical solutions meet customer's individual requirements.

3. Skilled workman insure the reliable assembly technology.

4. Strict inspection procedures throughout the whole production flow.

5. Prompt delivery & custom clearance make sure the customers receive the goods on time.

6. Perfect after sales service create good user experience.

7. Reliable quality & competitive price help customers to maximize profits.

8. Timely feedback save valued time for the customer.

9. Humanized management system build homelike work atmosphere.

10. Continuous devote to public welfare undertakings strive for harmonious society.

Who we are

Hebei Kaixiang Electrical Technology Co., Ltd is a leading manufacturer in emergency power supply test & maintenance industry. Specialized in the design, R&D, manufacture of the high capacity AC & DC load bank, it owns the largest intelligent power supply testing equipment R & D centre in China. We offer one-stop solutions to generator set & battery & UPS power manufacturers. Our products are widely used in data centre, shipbuilding, offshore platform, state grid, nuclear power, hospital, communication, railway, war industry etc filed. We are strategy partner of many famous company, such as Cummins, Caterpillar, Kohler, Jiangnan Shipyard, CSSC, CSIC, State grid, China mobile, Tecent, Baidu, Sinopec, CETC etc. Some of our products have been exported to Singapore, Japan, United Kingdom, Saudi Arabia, Australia, South Korea, Thailand, Angola etc. Through years of development, "Triumph Load" already the first brand in power supply detection industry in China.

What we can do

1. Professional technical team with more than 20 years design experience.

2. Customized technical solutions meet customer's individual requirements.

3. Skilled workman insure the reliable assembly technology.

4. Strict inspection procedures throughout the whole production flow.

5. Prompt delivery make sure the customers receive the goods on time.

6. Perfect after sales service create good user experience.

7. Reliable quality & competitive price maximize profits for customers.

8. Timely feedback save valued time for the customer.

9. Humanized management system build homelike work atmosphere.

10. Certified with CCS and ISO9001: 2008 Quality Certificate.
