10.5kV Vehicular Load Bank 2300KW Genset Testing

1. Product Introduction

10.5kV Vehicular Load Bank 2300KW Genset Testing

High voltage load bank,the optional voltage range is 6.6KV~35KV,can be directly used for large high voltage generator,

need not to be equipped with conventional step-down transformer. We can also provide regular load bank for high voltage

equipment,need to use step-down transformer together.

2. 10.5kV Vehicular Load Bank 2300KW Genset Testing Application

Large generator system testing in ocean engineering, drilling facilities,ship construction etc field

Factory testing for generator, static voltage characteristic test, speed characteristic test;

Marine generator overload protection test,parallel operation test,reverse power and reverse current protection test

Assist shipyard in mooring test,sea trial test

Assist with the acceptance of the vessel generator test

Eliminate the carbon deposition of generator

As the generator loading system

Periodic running test for standby generator

UPS inspection and maintenance

Ship battery charging/discharging system testing

The acceptance of new system and testing of servicing equipment

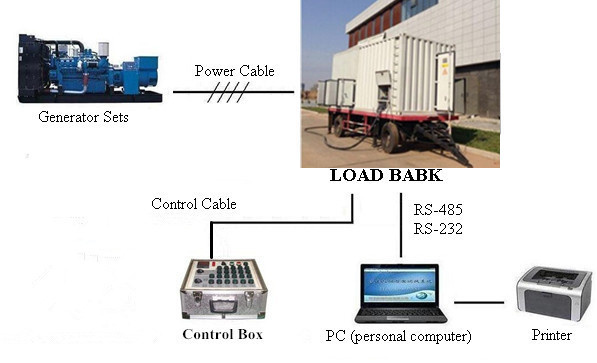

3. 10.5kV Vehicular Load Bank 2300KW Genset Testing System



4. 10.5kV Vehicular Load Bank 2300KW Genset Testing Working Environment

Altitute:≤2500m

Temperature:-10°C~50°C

Humidity:≤95%RH

Working Mode:Continuous work(>6hours continuous long-term work per day)

5. 10.5kV Vehicular Load Bank 2300KW Genset Testing Technical Specifications

Technical Parameter

Testing Function

(1) Stable-state Test: load power in rated range, measure generator steady-state 3 phase voltage, current, active power, reactive power, apparent power, power factor, frequency, and running time.

(2) One-key load/unload: no mattery using software control or manual control, can set loading power first, then press master load switch, this avoid the load fluctuation.

(3) Setting Test: can catch the max and min setting value of voltage and frequency, and calculate the relative setting up and down range of voltage and frequency and adjustment rate within 100 seconds setting time.

(4) Fluctuation Test: catch the max and min fluctuating value of voltage and frequency, and calculate steady-state frequency band, steady-state voltage deviation, voltage modulation, fluctuation rate and frequency in 60 seconds fluctuation time.

(5) Transient Test (Instant Load Test): sample interval is 40μs,system catch the transient max and min value and recovery time of voltage, current, and frequency, and calculate instant load transient voltage deviation and instant load transient frequency deviation.

(6) Transient Test (Instant Unload Test): sample interval is 40μs,system catch the transient max and min value and recovery time of voltage, current and frequency,  and calculate instant unload transient voltage deviation and instant unload transient frequency deviation.

(7) Harmonic Analysis: It can analysis 2~50 harmonic content and total harmonic content in voltage and current at same time.

(8) Record Wave Analysis: 5 patterns for recording voltage real-time waveform, and the record time is 4~ 280 seconds and accurately sampling at 128 points in a wave cycle at most.

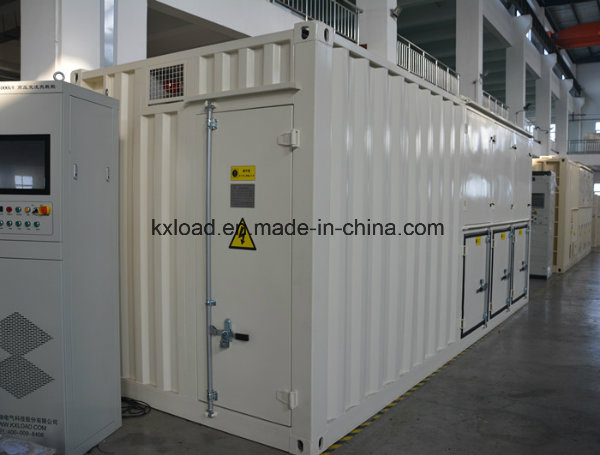

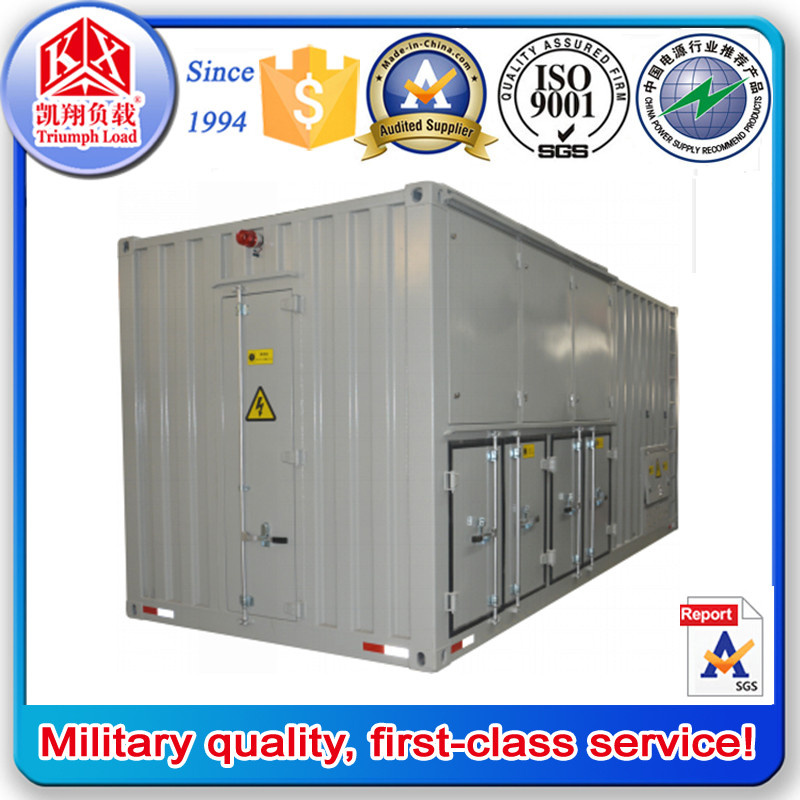

6. 10.5kV Vehicular Load Bank 2300KW Genset Testing Overall Appearance
