1000ft Bulk 4 Pair 23AWG Copper FTP CAT6 Cable

Name: 1000ft Bulk 4 Pair 23AWG Copper FTP CAT6 Cable
Brand: all-electronics-online.com
SKU: 732994875
Availability: InStock
Rating: 5 (69 reviews)

Price:	US $ 27/Box
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Box
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FTP cat6 ethernet cable (D175)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	FTP CAT6 LAN Cable
Conductor:	Cu/CCA/CCAM/Ccag
Rated Voltage:	300V
Temperature:	-40~+70 Centidegree
Impedance:	100+/-15 Ohm at 1~100MHz
Insulation:	HDPE
Print Legend:	Cm or Cmr
Jacket:	PVC,Lsoh,Lszh
Gauge:	23AWG,24AWG,26AWG, 28AWG
Color:	Blue,Red,Yellow Ect.
Application:	Submarine Cable
Conductor Material:	Copper
Cover Material:	PVC
Type:	Cat 6
Certification:	UL
Model:	FTP CAT6 Cable
Brand:	Fulsan

Product Description

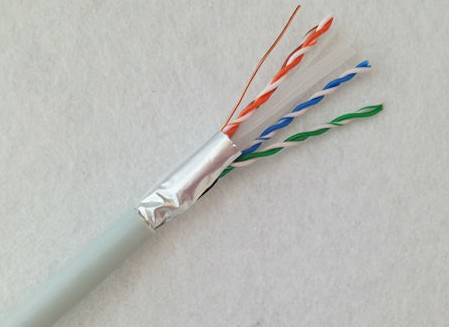

1000ft Bulk 4 Pair 23AWG Copper FTP CAT6 Cable

FTP CAT6 LAN CABLE
1)23AWG Network Cable
2)Comply with UL and 11801, ISO/IEC, TIA/EIA 568A/568B
3)4prs BC
FTP CAT6 LAN CABLE
4-Pair 23AWG CAT6 FTP Network Cable
Application
10Base-T4 100Base-TX 100Base-VG-ANYLAN 155MbpsATM 622 MbpsATM 1000Base-T 10GBase-T
Standard: According to ISO / IEC 11801, EN50173 TIA / EIA 568-B.

Frequency: 1250MHz (common standard)
General Characteristic:
Characteristic Impedance: 100± 10
Nominal Velocity of Propagation: 68%
Maximum Mutual Capacitance: 5.6 nF/100m
Maximum Capacitance Unbal ance: 330pF/100m
Maximum DC Resistance: 7.5O/ 100m
Maximum Resistance Unbalance: 3%
Maximum Propagation Delay Skew: 30ns/100m ( 1-125MHz )
Maximum Propagation Delay: 536 ns/100m @ 100MHz
Minimum Bending radius: 10× Cable outer diameter
Volta ge Rating: 60Vrms
Maximum Pulling load: 80N
Working Temperature (-20) (+60)
Storage Temperature: (-5) (+50)
Flame Retardancy: IEC 332-1( FRPVC &LSOH jacket )
IEC 332-1 & IEC 332-3C (FR LSOH jacket).

Usage: Network cabling
Certificate: UL, CE, CCC
Export to: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe

Model	CAT6 FTP Cable
Conductor Size	23AWG

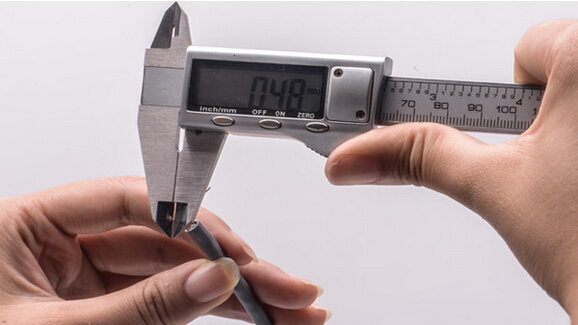

Conductor Size	0.48mm/0.49mm/0.5mm/0.51mm/0.57mm etc.
Conductor Material	CCA/CCU/BC
Nuber Of Conductor	4P
Shield	UTP/FTP
Flammability Grade	CMP,CMX,CM,CMG,MPG,CMR,MPR
Insulation Material	PE,HDPE,LSZH PE
Insulation Thickness	0.91mm
Jacket Material	PVC, ROHS PVC, LSZH PVC

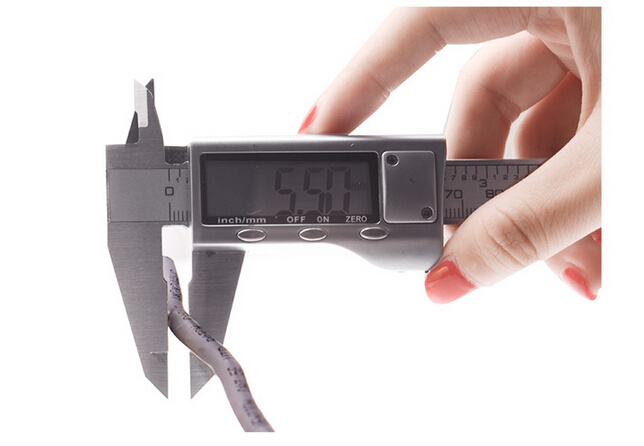

Outer Jacket Thickness	5.2mm
DC Resistance(Max.)	9.5Ω/100m
DC Resistance Imbalance	2.50%
Working Capacitance(Max.)	5.4nF/100m
Insulation Resistance	10000 MΩ.km
Transmission Velocity	65%
Operating Temperation	-40 °C - +75 °C
PVC Jacket Color	As client's request.
Marking On Jacket	On your request (Print your brand)
