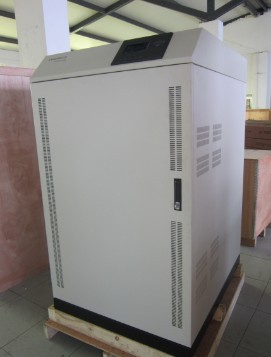

100kw Three Phase Home UPS Inverter

Name: 100kw Three Phase Home UPS Inverter
Brand: all-electronics-online.com
SKU: 698861755
Availability: InStock
Rating: 4.5 (100 reviews)

Price:	US $ 15640-26543/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	T100KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	TF100k
Capacity:	100kw
DC Voltage:	384V
Input Voltage:	380-410vac
Input Frequency:	45-65Hz
Output Voltage:	380-410vac
Output Wave Form:	Pure Sine Wave
Thd:	Less Than 3%
Low-Voltage Protection:	322V
Over Voltage Protection:	480V
Voltage:	380V
Generating Methods:	Solar Power Generation
Phase:	Three Phase

Product Description

100KW online UPS/100KW solar UPS/100KW home UPS inverter

Our competitive advantage:
1. Inveter use copper transformer, 87-90% efficiency;
2. LCD/LED display;
3. 18months warranty, during the warranty, we send free PCB to maintance.

Feature:
Capacity: 1KW--100KW
(1) super wide input voltage: 285V-475V
(2) completely controlled by CPU, LCD automatic page turning display
(3) protection against output short-circuit; Against overload, and when you throw off its load, it will turn on the unit automatically.
(4)working for single phase and three phase.
110V/220V single phase; 240V/380V/415V/440V option.
(5) with charger built-in, its charging current is 10A----156A.
(6) different DC voltage: 24V, 48V, 96V, 384V for optional
(7) make it with 3 PCS PCB box, it is more stable design.
(8) this kinds inverter can take pump or lift, and other industrial use

Model		T1K	T3K	T5K	T10K	T15K	T20K		T30K	T60K	T100K
Power		1KW	3KW	5KW	10KW	15KW	20KW		30KW	60KW	100KW
Power Factor		0.8
Input	Phase	3 phase 4 wire and ground
	Voltage Range	380V± 20%(3 phase), phase voltage 220V
	Frequency Ranger	45 - 65Hz
	Rectifier	3 phase 6 pulses, 12 pulses is optional
Output	Phase	3 phase 4 wire and ground
	Wave form	Pure sine wave
	Crest Factor	3: 01
	Rated voltage	380/400/415V optional
	Phase voltage setting	200 - 244VAC,
	Transient response	+/-5%, 10ms
	Frequency	50 / 60 Hz + / - 0.05%
	Total-harmonic distortion	< 3% linear load, < 5%( nonlinear load)
	Short circuit current	Short current for 0.1s (200% current)
	Overload capacity	Overload 125% for 10 ms, 125%-150% for 1min. automatically resume when load become normal
Battery	Battery	Maintenance free lead-acid cell
	DC Voltage	48v or 96V(1-15KW)						384V
	Max Charge Current	6-30A adjustable
Bypass	Type	Static state + manual maintenance bypass
	Input Phase	3 phase 4 wire and ground
	Input voltage range	15% - 25% (the front control panel selectable)
	Transfer time	Inverter / bypass transfer switch time(Overload): 0ms inverter / bypass transfer switch time (fault inverter) 1ms
Efficiency	Whole unit	> 85%
	Inverter	91	91	92	92	93	93		95	95	95
Remote signaling		Dry contact (battery low, battery discharging, bypass/ fault); output 12Vdc/80mA, Optional parts
Communication interface		RS232 ( SNMP, modem optional )
Running temperature		0-40 degree Celsius
Relative Humidity		Less than 95% (without condensing)
Noise at 1 M		less than 60 dB
Degree of protection		IP20
Applicable Standards		EN50091-1-EMC EN50091-2liv. A
Product size(mm)		560230570		590470730		9006001380			12009001820
product weight(Kg)		30	40	54	104	125	190		380	690	800
Package size(mm)		640300730		690570850		11358101430			145011101880
Package weight(Kg)		32	50	60	123	145	215		420	750	860
