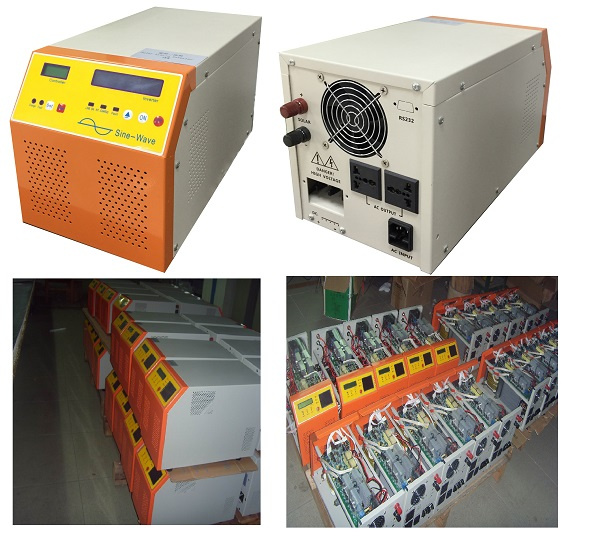

300W to 10kw Solar Pure Sine Wave Inverter MPPT Tpye
| Price: |
US $ 100-300/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
SC |
| Model: |
Sc |
| Product Name: |
Solar Hybrid Inverter |
| Charge Tpye: |
MPPT |
| Power Efficiency: |
90% |
| Product Quality: |
MID / High Grade |
| Phase: |
Single Phase |
| Type: |
Standby |
| Protection: |
Short Circuit |
| Classification: |
Energy |
| Brand: |
Tanfon |
Product Description
Feature:1.Combine with solar power controller and inverter hybrid function.2.Completely controlled by CPU.3.Inverter use copper transformer, pure sine wave output.4..LCD displays, clearly to know the status.5.have bypass function and AC charger (UPS function)6.Perfect protection. Protect against anti-charge at night, battery over charger/over discharge, output short-circuit, against overload, against over-voltage, over-current protection ,etc. 7.Easy operation,only need connect the panels and batteries directly to the Hybrid solar inverter.300W to 10KW solar pure sine wave inverter / for home power / with solar panel battery controller hybrid invertors etc
| Model | SC300W | SC500W | SC700W | SC1000W |
| Rated power(W) | 300W | 500W | 700W | 1000W |
| Rated DC voltage(V) | 12/24V | 24/48V |
Line input | Input voltage(V) | 145-280V,90-127V |
| Charge current(A) | 5-15A |
| Inverter output | Output voltage(V) | 220VAC±5% &5V,12V DC |
| Output frequency | 50Hz/60Hz±1% |
| Wave form | Pure Sine Wave, THD<4%(Full Load) |
| Solar input | Maximum voltage(V) | 21V or 42V or 84v |
| Rated power(Wp) | 300WP | 500WP | 700WP | 1000WP |
| Solar Controller | Charge current(A) | 30Amp | 40A 20A | 30A 20A | 40A 20A |
| MPPT range(V) | 12v(10-17) or 24v(20-34) |
| Charging efficiency | 90%-95%, Peak on 97% |
Other
| Over charge protective
voltage of battery(V) | 12V(14.3),24V(28.6),48V(57.2) |
| Over charge recover-voltage of battery(V) | 12V(13.7),24V(27.4),48V(54.8) |
Voltage drop between solar
module and battery(V) | ≤0.3V |
Voltage drop between loads
and battery(V) | ≤0.15V |
| Start speed of cooling fan | Have |
| Environment Humidity | 0-90% Maximum,non-condensable |
| Protective Functions | Protection against anti-charge at night;
Battery over charge;over discharge protection; Joint-reversed of solar modules |
| Control method | MPPT |
| Size :D*W*H(mm) | 390*200*220mm / 470*280*300mm |
| N.W&G.W(KG) | 7/8 | 9/10 | 10/11 | 14/15 |
| Model | SC1500W | SC2000W | SC3000W | SC5000W |
| Rated power(W) | 1500W | 2000W | 3000W | 5000W |
| Rated DC voltage(V) | 24Vor48V | 48V or 96V |
Line input | Input voltage(V) | 145-280V, 90-127V |
| Charge current(A) | 7-25A |
| Inverter output | Output voltage(V) | 220VAC±5% &5V,12V DC |
| Output frequency | 50Hz/60Hz±1% |
| Wave form | Pure Sine Wave, THD<4%(Full Load) |
| Solar input | Maximum voltage(V) | 42V or 88V or 176V |
| Rated power(Wp) | 1500Wp | 2000Wp | 3000Wp | 5000Wp |
| Solar Controller | Charge current(A) | 50/30 | 40/30 | 60/40 | 80/60 |
| MPPT range(V) | 24v(20-34)48v(40-68),96v(80-136) |
| Charging efficiency | 90%-95%, Peak on 97% |
Other
| Over charge protective voltage of battery(V) | 24V(28.6),48V(57.2),96V(114) |
| Over charge recover-voltage of battery(V) | 24V(27.4),48V(54.8),96V(109.6) |
Voltage drop between solar
module and battery(V) | ≤0.5V |
Voltage drop between loads
and battery(V) | ≤0.25V |
| Start speed of cooling fan | Have |
| Environment Humidity | 0-90% Maximum,non-condensable |
| Protective Functions | Protection against anti-charge at night;Battery over charge/over discharge protection; Joint-reversed of solar modules |
| Control method | MPPT |
| Size :D*W*H(mm) | 465*220*480MM |
| N.W&G.W(kg) | 26/32 | 32/38 | 40/49 | 44/52 |
