| Prod Model: |
LED RGB controller LT-3600RF |
| Product Name: |
LED RGB Controller Lt-3600RF |
| Product Size: |
L211*W40*H30(mm) |
| Input Voltage: |
DC12-DC24V |
| Max. Load Current: |
6A * 3CH |
| Remote Control Distance: |
100m |
| Remote Output Power: |
8MW |
| Radio Frequency: |
433.92MHz |
| Grey Scale Levels: |
4096*4096*4096 |
| Max Output Power: |
216W/432W(12V/24V) |
| Weight(G.W): |
240g |
| Application: |
RF Remote |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Material: |
Plastic |
| Battery Type: |
Button Battery |
| Voltage: |
DC12V-24V |
Product Description

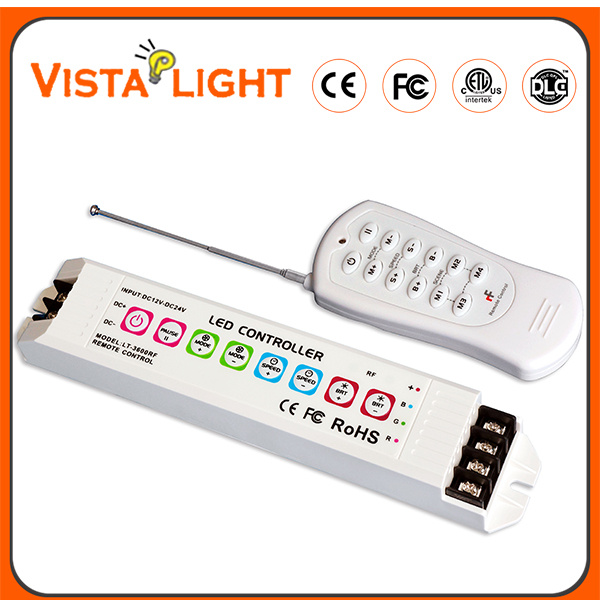

100m Remote control distance RGB LED Controller

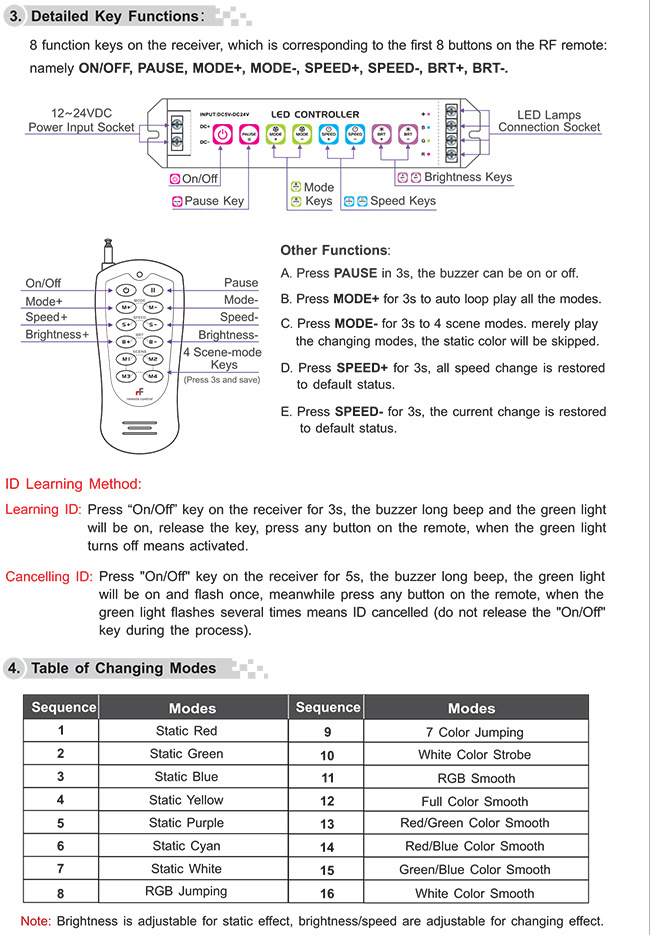

LT-3600RF is a multi-functional RGB LED controller, use the advanced PWM (Pulse-Width Modulation) control technique, built-in 16 kinds of changing mode. Smooth changing effect without flicker; PC engineering plastic shell, exquisite appearance. The receiver has 8 keys,which are used for namely ON/OFF, PAUSE, MODE+/-, SPEED+/-, BRT+/-, compatible with RF remote (100m control distance). 12~24VDC wide voltage input, 3CH output (common anode),widely used for all kinds of LEDs with current-limiting resistor, like RGB LED modules, LED strips, SMD and so on. Technical Specs: | LED RGB Controller LT-3600RF |
| Input voltage | DC12V~DC24V |
| Max current load | 6Ax3CH |
| Max output power | 216W/432W(12V/24V) |
| Scale levels | 4096×4096×4096 |
| Remote control distance | 100m |
| Radio Frequency | 433.92MHZ |
| Remote output power | 8mW |
| working temperature | -30°C~55°C |

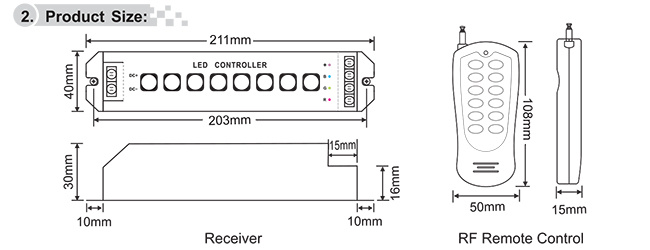

| Dimension | L211×W40×H30(mm) |
| Package Size | L313×W50×H32(mm) |
| Weight (G.W) | 240g |
Product Details
The Charging Methods for Remote Control1. When charging, please connect USB cable to the mobile charger or computer with the USB interface.
2. The downside white light of 3 in l white LED indicator flickers while charging, and the upside white indicator light is on, means the charging is finished. The remote control can be chargeable even at the OFF state, on which the indicator light is black.
3. No memory effect in the lithium battery of remote control. Follow the standard charging procedure, no need for overcharge for the first 3 times .
4. Indicator light flickers(the right side white indicator light is on) meaning low battery and need to be charged charging in low battery will affect life of battery.
5. The remote should be full charged and stored under low cold drying while a long time without being operated And please full recharge every 3 months.Product Attention1. The product shall be installed and serviced by a qualified person.
2. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure it is mounted in a water proof.
3. Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
4. Please check if the output voltage of any LED power supplies used comply with the working voltage of the product.
5. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the.
6. Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights.
7. If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself.
Product Warranty Agreement
1. We provide lifelong technical assistance with this product:
(1) A 5-year warranty is given from the date of purchase. The warranty is for free repair or replacement and covers manufacturing faults only.
(2) For faults beyond the 5-year warranty we reserve the right to charge for time and parts.
2. Warranty exclusions below:
(1) Any man-made damages caused from improper operation, or connecting to excess voltage and overloading.
(2) The product appears to have excessive physical damage.
(3) Damage due to natural disasters and force majeure.
(4) Warranty label, fragile label and unique barcode label have been damaged
(5) The product has been replaced by a brand new product.
3. Repair or replacement as provided under this warranty is the exclusive remedy to the customer. Ltech shall not be liable for any incidental or consequential damages for breach of any stipulation in this warranty.
4. Any amendment or adjustment to this warranty must be approved in writing by Ltech only.
Our company
We are a professional manufacturer of various kinds of LED lighting products in Shenzhen China. Our current products lines range include: LED Flexible strip light, LED COB Down lights, LED moudle LED Panel lights and DIY products by customer etc. We could provide the most reliable light solution to client s' application. Our products are getting CE, RoHS, ETL DLC approval these days and all the light source chips are of brand in Epistar, Samsung, Edison, Nichia, Citizen, CREE and Luxeon etc.

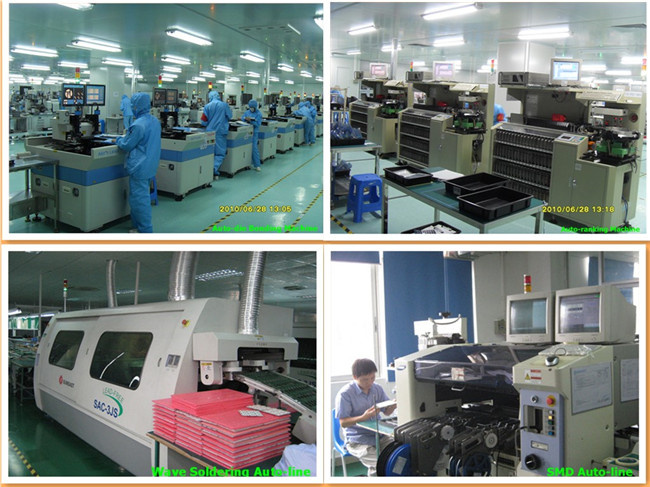

Equipped with automatic SMT production lines testing room aging room dispensing room and all comprehensive processing technology in this industry. We got professional team who are in rich experience of processing technology engineering testing and other related fields. The production system is according to the standard of ISO9001: 20000. All the products will be sent to aging room for life testing and then must pass the strict tests of the Quality Control Dept. Before shipping. Our products are Environmentally-friendly Energy-saving High efficient and with long-lifespan. Our products have been successfully used in widely: Such as Famous hotels Big Chain stores, museum and various business centers and so on.
We are adhering to the principle of" Honesty Cooperation aspects and Win-Win" and we are doing our utmost to satisfy our clients 'personalization demand.

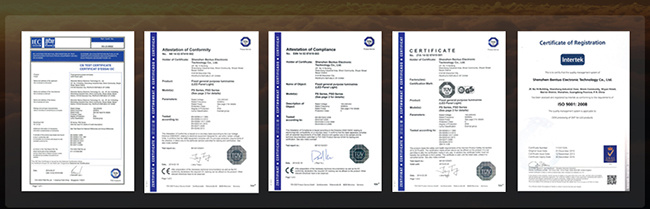

Certification FAQ1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Usually below 100pcs is 3 days quick delivery.
3. Q: How long is the warranty period ?
A: Non-artificial damage, one years warranty
4. Q: Do you have the products in stock?
A: Yes ,of course
5. Q: Freight Cost?
A: The shipping cost depends on different weight;
We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
A: Quality is priority. Every product will be fully assembled and carefully tested before packing and shipping.
