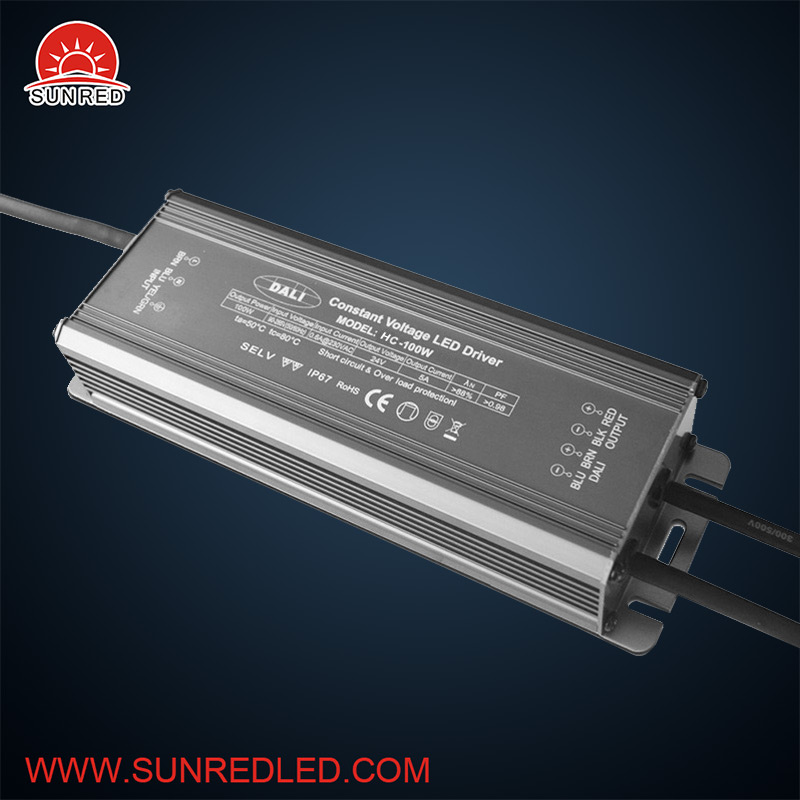

100W Dimming Waterproof LED Driver with Ce RoHS

Name: 100W Dimming Waterproof LED Driver with Ce RoHS
Brand: all-electronics-online.com
SKU: 832025605
Availability: InStock
Rating: 5 (91 reviews)

Price:	US $ 10-12/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Triac-100
Package:	White Box
Dimming Range:	5%-100%
Output Power:	100W
Warranty:	5years
Efficiency:	86%
Usage:	Light
Output Type:	Single
Circuit Structure:	Electronic Step-down Transformer
Driving Method:	Cc or CV
Power Supply Mode:	Cc or CV
Brand:	Runled

Product Description

100W Dimming Waterproof LED Driver with Ce RoHS
Triac-100,designed specifically for Constant voltage led strips, led linear lights applications, to operate general Linear Lighting Fixtures. Constant voltage 12V Flicker free 0-10V/PWM/RX dimming LED Driver 100W 8000mA,

Model and operating parameters

Constant Current
Model	Dimming Principle	Input Voltage (V/AC)	Output Power (W)	Output Current (mA)±5%	Output Voltage (V/DC)	No Load (Vmax)	PF	Efficiency	Notes
Triac-cc-100	triac dimmable leading edge dimmble /trailing dege dimmble/	100-240	100	1300	38-75	80	>0.95	80-86%
				1800	28-55	60
				2300	22-43	48
				2800	18-35	40

Constant voltage

Triac-cv-100	triac dimmable leading edge dimmble /trailing dege dimmble/	100-240	100	7000	12V±5%	12V±5%	>0.95	80-86%
				4200	24V±5%	24V±5%
				2100	48V±5%	48V±5%

We can make 6W to 300w led driver. We have 5 kinds of led drivers or led power supply:

1. NON dimmable led driver

2. TRIAC dimmable led driver,

3. 0-10v dimmable led driver,

4. PWM dimmable led driver

5. and DALI dimmable led drivers.

Constant current and constant voltage both ok.

If you are interested in our products pls feel free to contact me at

SUNRED LED Co., Limited!

We are LED driver manufacturer and LED car lighting trader located in Shenzhen, China

Which established in 2017.

Our main products are

0-10V/PWM dimmable drivers.

TRIAC dimmable LED driver,

DALI dimmable LED driver

IP67 Waterproof LED power supply

Low voltage LED transformer

LED car lighting

We have many good partners and suppliers, all of our products are with certificates,

CE EMC LVD TUV for Europ and SAA for Australia, For America market we have ETL UL certificates.

Also we can offer you good price, acceptable lead time and excellent after sale service.

Sunred LED, this young and flexible company will keep the innovation and honest in heart. To built a long good and mutual business relationship with you. Always fighting to prop the hope of green and lighten the future of the world.
