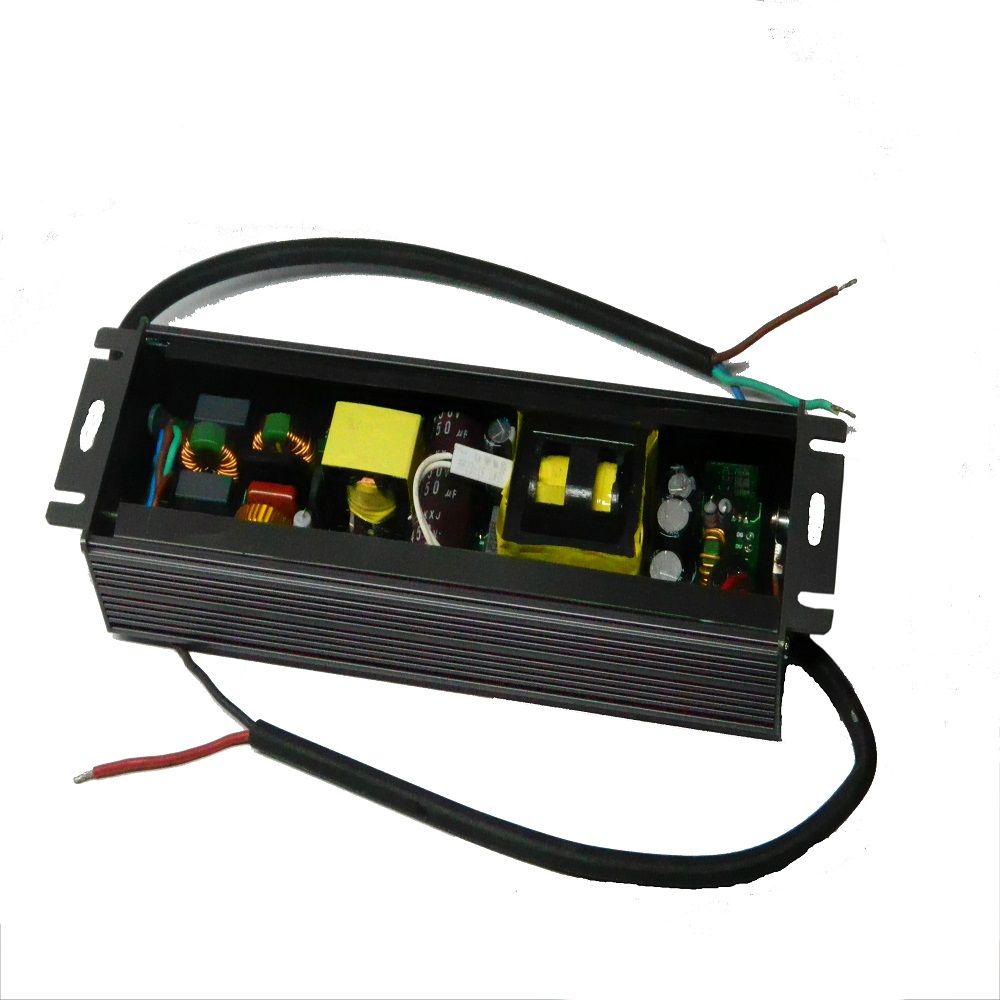

Dali Dimmable Driver 60W Waterproof LED Driver IP67

Prod Model:	DALI-WP-60
Output Voltage:	12V 24V
Output Current:	5A 2.5A
Size:	180*50*41mm
Usage:	Light
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Conventional Step-down Transformer
Certification:	SAA

Product Description

Dali dimmable driver 60W waterproof led driver IP67.CC 60w IP67 waterproof led driver,CV 60w IP67 waterproof led driver.

This is our newest special design metal junction boxed led driver for North America.we can make it from 1-100W constant voltage and constant current,can use for led strip led liner light led panel downlight as other led lighting fixture

We have ETL ,UL for the safety with 5years warranty

Specifications of 60w waterproof led drivers

Model	DALI-WP-60
Input Voltage	100-240V
AC Frequency	50-60Hz
Output Mode	Constant Current
Output Voltage	32-65V	25-50V	19-38V	15-30V
Output Current	900 mA	1200mA	1500mA	1800mA
no-load voltage	78	60	46	36
Output Power	60W Max
Power Factor	>0.95
Efficiency	80%-86%

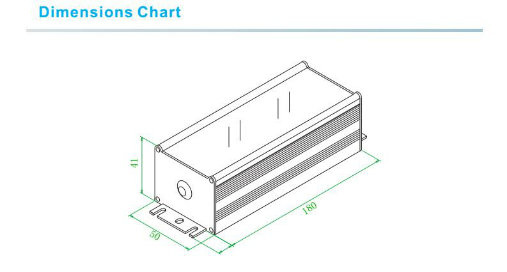

Dimensions	180*50*41 mm
Operation Temperature	-30~45 degree
Storage Temperature	-40~70 degree
Thermal Dissipation	Nature
Relative Humidity	5~95%
Isolation Voltage	In/Out 3000VAC
Vibration	5-55hZ/2G,30Minutes
Life time	50000H,AT tc max

We have 12w 20w 30w 40w 60w 80w 100w waterproof led driver.

Features

1.Advanced patent MCU dimming technology
2.Suitable for leading edge or tailing edge dimmers
3.Short cicuirt and over current and over voltage protection
4.FLCKER FREE,NOISE FREE
5.NO LIMIT REQUIREMENT FOR LOAD WATTAGE,load 1-100%
6.Conveniently connected terminals(screws)
7.ETL metal box,dimming range 1-100%
8.5 years quality Warranty



Trade Terms

1. Payment: T/T, Western Union and paypal;
2. Production lead time :500PCS: about 10 workdays, 1000PCS: about 15 workdays;
3. Sample can be delivered within 3days;
4. Shipping freight are quoted under your requests;
5. Shipping port: Shenzhen, Mainland China;
6. Discounts are offered based on order quantities;
7. MOQ: 1 pcs.

Packaging & Shipping
1. Shipping freight are quoted under your requests;
2. Shipping port: Shenzhen, Mainland China;
3. Bubble bag ,inner box,and carton etc,
  Neutral Package, or customer color box package upon requirements.


Package Contents:
1*Transformator LED Driver
