10A Micro Switch with RoHS UL (NV-16W / NV-21W)

Name: 10A Micro Switch with RoHS UL (NV-16W / NV-21W)
Brand: all-electronics-online.com
SKU: 726203875
Availability: InStock
Rating: 5 (106 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	110/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	NV-16W / NV-21W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	China (Mainland)
Brand Name:	NCR
Max. Voltage:	250VAC
Contact Form:	Spdt/ Spst-Nc/ Spst-No
Contact:	Silver Alloy
Certificate:	Enec, CQC, UL, RoHS
Rating:	16A / 21A
Pressing Type:	Push-Button
Protection:	Waterproof
Size:	Normal Size
Environment:	﹤250℃
Breaking Capacity:	General Type
Breaking Form:	Single Type
Brand:	NCR

Product Description

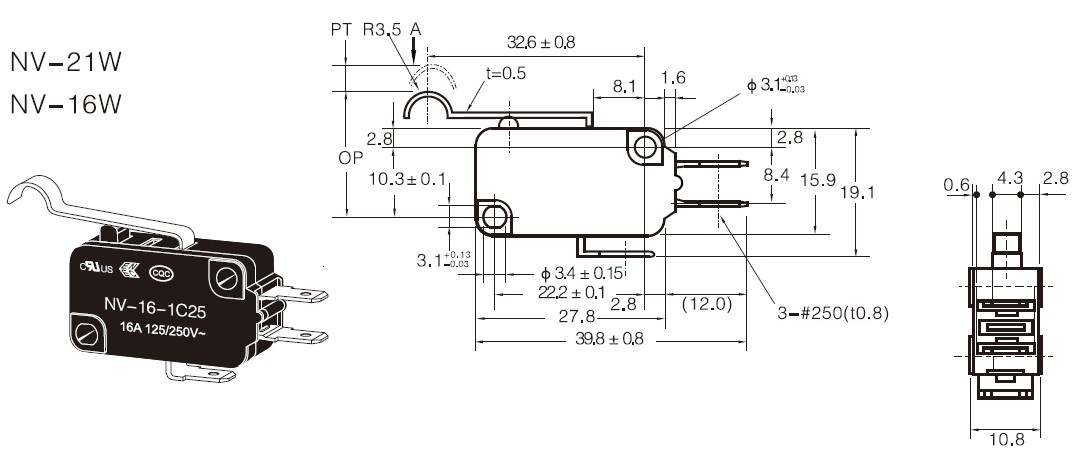

10A Micro switch with RoHS UL (NV-16W / NV-21W)

Industry standard design with switching currents of 16A or 21A.

Widely used for applications where long life expectancy and high reliability is required.

Choose from a variety of levers, terminals and operating forces.

Heat resistant versions of are available.

RoHS Compliant.

NCR Industrial:

A) P. C. B Relays for household appliance industry

B) Latching Relays/Shunts/C. T. For Energy meter industry

C) Eletricity Measuring Meters

With professional manufacturing and reliable design concept, NCR is supplying superior Latching Relay, Shunt and Current Transformer to worldwide meter producers.

With decades of manufacturing experience, we are now enjoying a high reputation in the metering field worldwide. Our product range include Latching Relay and Shunt/Current Transformer used for 60-200A single & three phase energy meter. We have over 10000sqm production facilities, several automatic and semi-automatic production lines. With strong R&D capability, we are offering our clients one-step customized solutions and service.

Based on ISO9000 quality standard, we have set up strict IQC, IPQC and FQC system in our manufacturing, to ensure quality meeting IEC62055-31 standard and customer's requirements.

We'll always keep the spirit "offering the best products and outstanding service", to go along with all our clients together. By continuous steps, NCR is efforting to offer better products and more professional solutions to our users.

"Nice, Content, Reliable. It's NCR.
