10kw Three Phase Inverter/Three Phase off Grid Inverter

Name: 10kw Three Phase Inverter/Three Phase off Grid Inverter
Brand: all-electronics-online.com
SKU: 667271905
Availability: InStock
Rating: 4.5 (25 reviews)

Price:	Negotiable/Piece
Trade Terms:	CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	T
Markets:	North America,Africa
Model:	10kw
Weight:	104kg
Materials:	Copper Transformer
Display:	LCD Display
Output Range:	380-415V
Battery Input Voltage:	96V
Warranty:	18 Months
Delivery Time:	7 Days
Effciency:	87%
Output Phase:	3 Phase 4 Wire and Ground

Product Description

10kw Three Phase Inverter/Three Phase off Grid Inverter

Foshan Tanfon Energy Technology Co., LTD is a professional manufacturer of solar/wind systems inverter (on grid and off grid), solar hybrid control inverter, home UPS inverter (single phase and three phase), controller, battery ect.

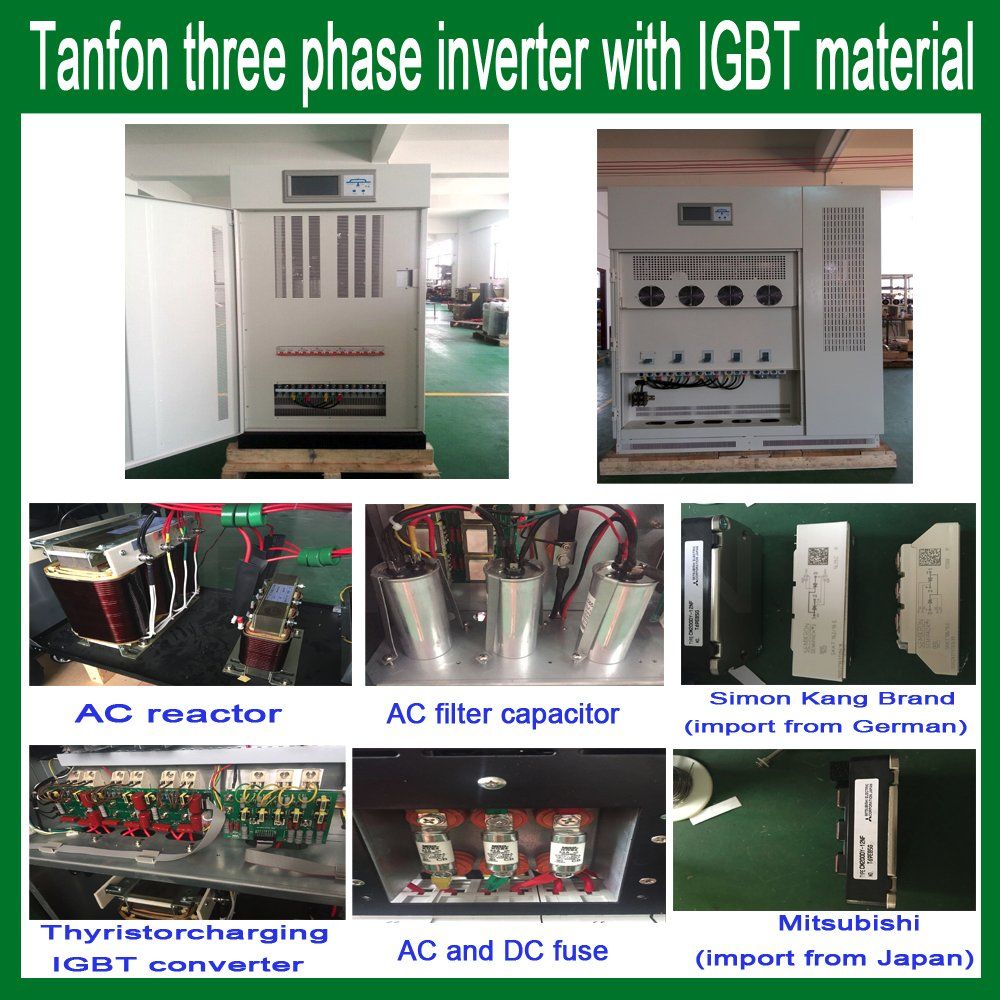

Tanfon three phase inverter with IGBT material functions:

1. With AC reactor (Protect against city power current shock)

2. Double protection. (Two fuses, including the city power security and battery power security)

3. Thyristorcharging. (The thyristor charging current is larger than charging board one.The thyristor charging current could reach to 40-50a while the charging board is only 10a-15a)

4. IGBT converter. (High 95% transfer efficiency and strong anti-loading shock capacity)

5. AC filter capacitor.( Have stabilizing voltage function and pure sine wave output)

6. Under normal working condition when taking the loads, the machine can run as usual even when cut out the battery power.(Strong capacity for anti-shock, stable function)

7. The Chinese/English language operation interface for choice.

8. Touching display

9. IGBT brand: Mitsubishi (import from Japan)

Thyristor charging brand: Simon Kang Brand(import from German)

10. 1KW-10kw(MOS ,48V,96V,120v),10KW-250KW(IGBT,192V,240V,384V)

Three phase inverter ( 3 phase solar inverter ) as below

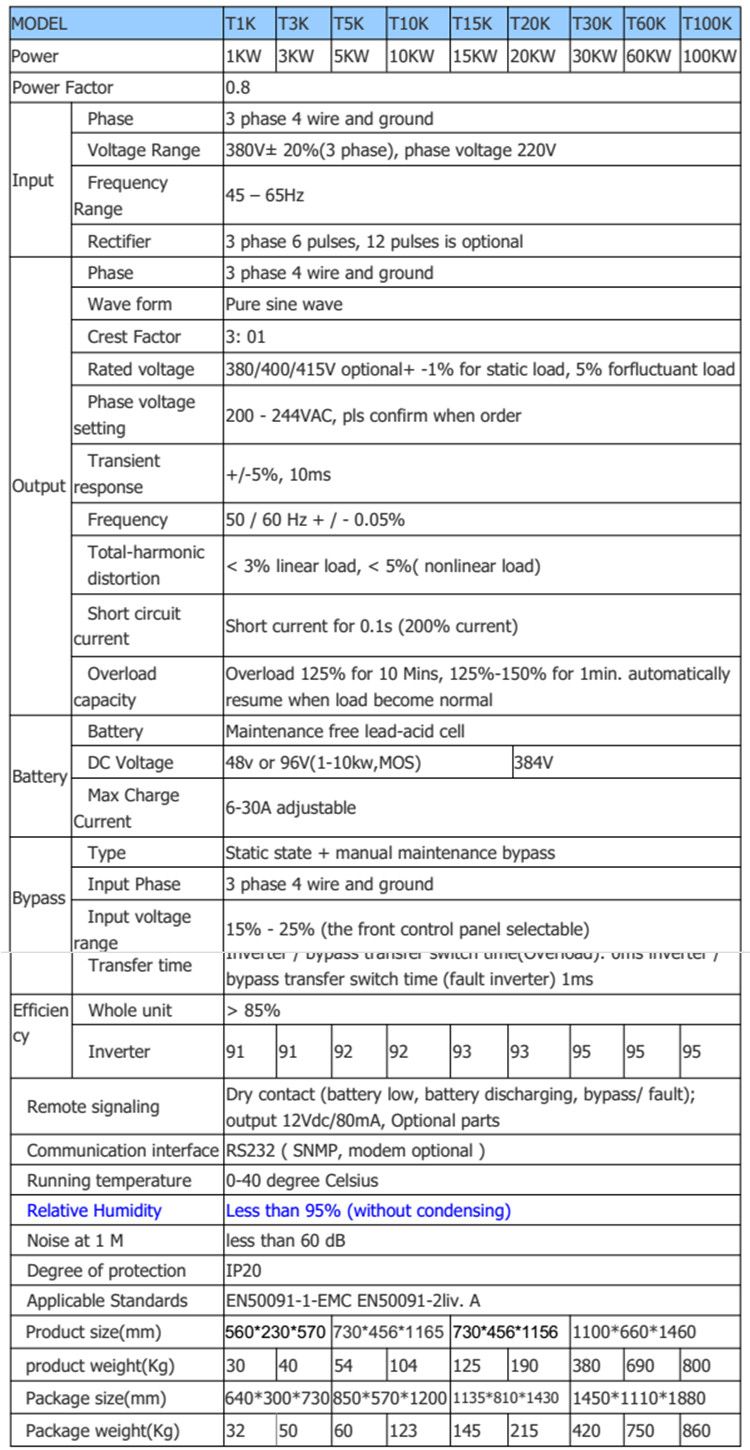

1KW - 100KW Three phase solar inverter specification
