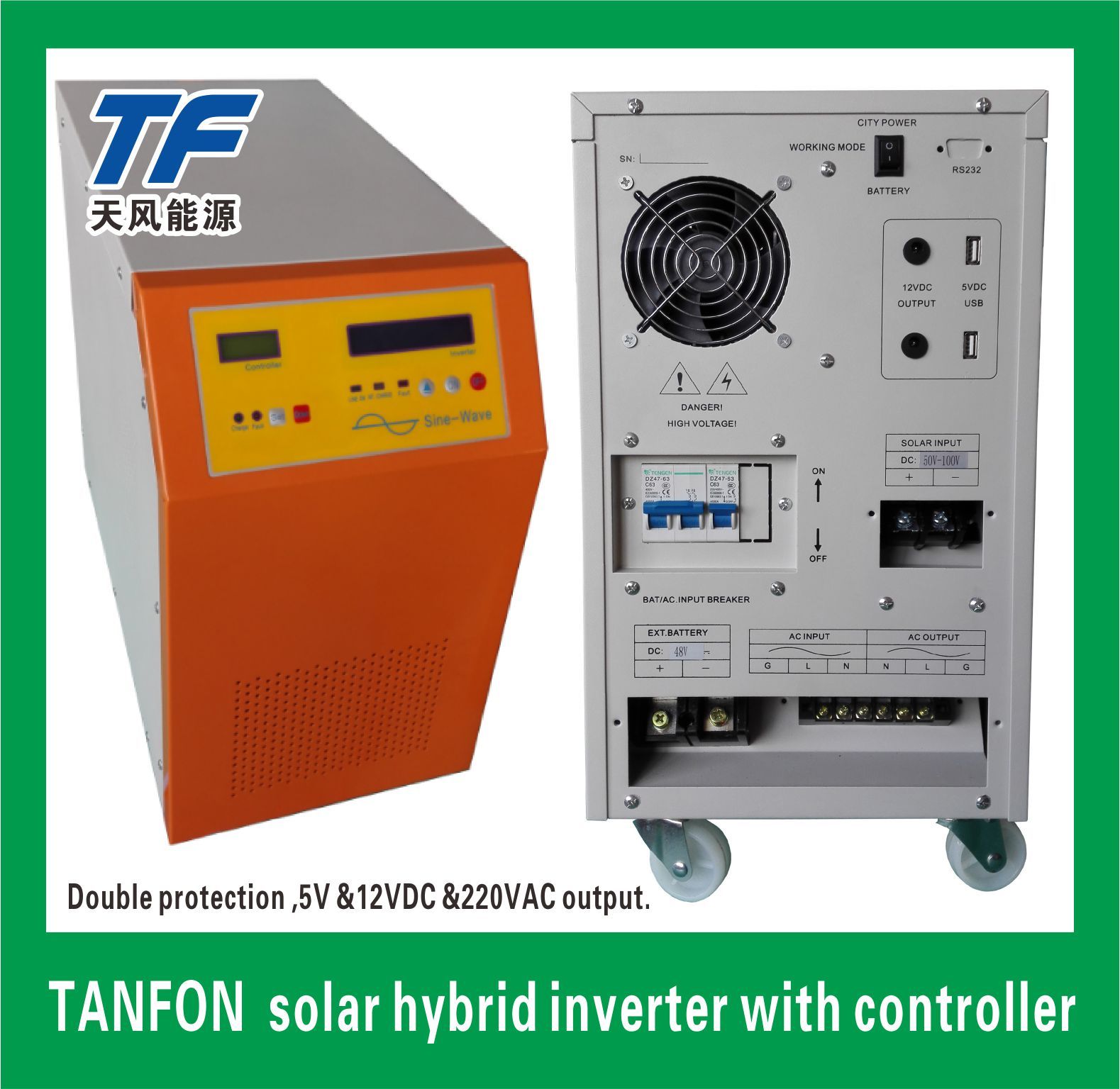

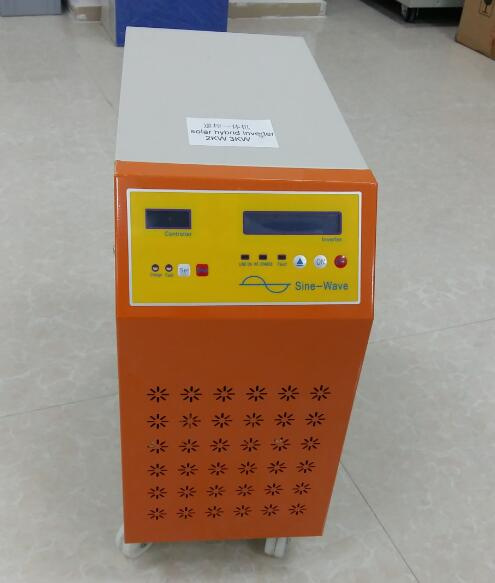

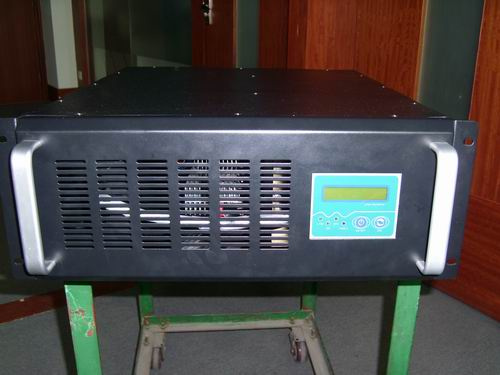

DC to AC Inverter/ DC to AC Power Inverter

Name: DC to AC Inverter/ DC to AC Power Inverter
Brand: all-electronics-online.com
SKU: 696662675
Availability: InStock
Rating: 4.7 (55 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	DC to AC Inverter 300W-30kw
Working Way:	Home System, Solar System, Wind System
Product Materials:	Copper Transformer and LCD Display
Delivery Time:	Nomal Voltage Order for 1-3 Days;
Input Voltage:	12V, 24V, 48V, 96V, 120V Optional
Output Voltage:	110V/120V/220V/230V/240voptional
Warranty:	18 Months Warranty for Normal Voltage
Service:	During The Warranty, Ship The Free Parts
Promise:	Best Quality and After Sales Service

Product Description

Our DC to AC inverter competitive advantage:
1)Used copper transfromer;
2)LCD display
3)Bypass function and with AC charger;
4)18 months warranty;
5)Ship the free parts for service.
We promise our best quality and after sales service. Make TANFON as your most valuable cooperator in China.

FACTORY INTRODUCE
Foshan Tanfon Energy Technology Co., Ltd is a professional manufacturer of solar/wind systems inverter(on grid and off grid ), home UPS inverter(single phase
And three phase), controller, battery ect.
Good quality, best price and better technical support and service, make Tanfon energy technology Co., Ltd as your most valuable cooperator in China.

Pure sine wave home inverter/solar, wind system off grid inverter Feature:

1) super wide input voltage: 160V---280VAC
2) completely controlled by CPU.
3) protect against output short-circuit/overload. When you throw off its load, it will turn on automatically.
4) optional for charge build-in, charge current is 10A----30A.
5) different DC voltage: 12V, 24V, 36V, 48V, 96V, 110V, 192V, 240V for optional.
6) inverter can operate with 120% of nominal load during 1 minute; 150% of nominal load during 10 second.
7) it can drive inductive loads, such as lightings, TV sets, fans, refrigerators and air-conditioner
8) it's humanized design, when the AC comes, it will start the unit automatically; And when it overload, it will also close the unit automatically, when you cancel the load, then it will return to work automatically.
9) ATM inverter, RS232 software, SNMP card for optional.
10) inverter have bypass output function, charger function for optional; Work way: Electricity priority function or battery priority function for optional.

Model	TF300W	TF500W	TF700W
Capacity(W)	300W	500W	700
DC voltage(V)	12/24	12/24	12/24
Input voltage(V)	160-265VAC
Input frequency	45-65HZ
Output voltage	Four steps AVR, 110V/120V/220V/230V for optional
Output wave form	Pure sine wave
THD	≤ 3%
Low-voltage protection(V)	9.8/19	9.8/19	9.8/19
Over voltage protection(V)	15/30	15/30	15/30
Recharge current	5-10A	5-10A	5-10A
Unit size(mm)	348122188	348122188	370122188
Transfer efficiency	87%--90%
Protections	Protection against short-circuit, over load, high-voltage, reverse polarity protection and low-voltage protection
Over load	120% of the rate capacity
Short circuit	300% of the rate capacity

Model	TF1K	TF2K
Capacity(W)	1000	2000
DC voltage(V)	24/48	24/48
Input voltage(V)	160-265VAC
Input frequency	45-65HZ
Output voltage	Four steps AVR, 110V/120V/220V/230V for optional
Output wave form	Pure sine wave
THD	≤ 3%
Low-voltage protection(V)	19/39	19/39
Over voltage protection(V)	30/60	30/60
Recharge current	10-15A	10-15A
Unit size(mm)	495455295	453175255
Transfer efficiency	87%--90%
Protections	Protection against short-circuit, over load, high-voltage, reverse polarity protection and low-voltage protection
Over load	120% of the rate capacity
Short circuit	300% of the rate capacity

Who we are?

Foshan Tanfon Energy Technology Co., Ltd is a professional manufacturer of green energy products with great commitment, contribution heart and responsibility.

What we do?

We are specialized in the R&D, manufacture and sale of the high quality environmental solar system, wind energy turbine, solar street light, solar pump and pure sine wave inverter, etc.

Now we are having the main series products as below:

1. Solar inverter

2. Solar controller(PWM and MPPT)

3. Portable solar system

4. Solar power system

5. Solar on grid system

6. Solar refrigerator system

7. Wind power system

8. Wind &solar hybrid system

9. Solar street light system

10. Solar air conditioner system

With these items as our weapons, we can fully supply the solutions for our clients' different needs.

We adhere to "quality first, users first" purpose, devoting ourselves everyday into setting up a suitable system for all of our clients.

How we do?

For the production, we have the professional production lines(Automatic series welding machine, EL test machine, Automatic frame machine, Special debug machine). Each step of production is under strict quality control. Our products are qualified with CE, RoHS, ISO certification.

For the service, we promise the quality. All products have the certain warranty and the new part would be shipped freely on time for service during the warranty. Also our company has started opening the factories in some countries, so it is very convenient to service you well at local.

Importantly, with a professional installation team, we have been to many countries(like Egypt, Bangladesh, Chad, Nigeria, Ghana, Doha, Pakistan) for installation service as well as win good feedback from the customers.

Specializing in installing projects from design, detailing, fabrication to erection, having continue cooperation with engineers, exclusive agents and the foreign business partners, we are now sincerely hoping to join hands with you to create a better future together at the principle of win-win cooperation.

Our Vision:

Tanfon create a solar kingdom for you

Our Mission:

Sincere, All-win, Unite, Aggressive.

Our Core Value:

100% Commitment 100% Contribution

100% Possibility 100% Time
