10kw Three Phase Inverter

Name: 10kw Three Phase Inverter
Brand: all-electronics-online.com
SKU: 696649875
Availability: InStock
Rating: 4.7 (31 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Three Phase Inverter1000W-100kw
Working Way:	Home System, Solar System, Wind System
Product Materials:	Copper Transformer and LCD Display
Delivery Time:	Nomal Voltage Order for 1-3 Days;
Input Voltage:	48V, 96V, 120V. 384V Optional
Output Voltage:	220V/380V/415V Optional
Certification:	CE
Warranty:	18 Months Warranty for Normal Voltage
Service:	During The Warranty, Ship The Free Parts
Promise:	Best Quality and After Sales Service

Product Description

FACTORY INTRODUCE
Foshan Tanfon Energy Technology Co., Ltd is a professional manufacturer of solar/wind systems inverter(on grid and off grid ), home UPS inverter(single phase
And three phase), controller, battery ect.
Good quality, best price and better technical support and service, make Tanfon energy technology Co., Ltd as your most valuable cooperator in China.

Three phase Inverter Feature:

Capacity: 1KW--100KW
1) super wide input voltage: 285V-475V
2) completely controlled by CPU, LCD automatic page turning display
3) protection against output short-circuit; Against overload, and when you throw off its load, it will turn on the unit automatically.
4)working for single phase and three phase.
110V/220V single phase; 240V/380V/415V/440V option.
5) with charger built-in, its charging current is 10A----156A.
6) different DC voltage: 24V, 48V, 96V, 384V for optional
7) make it with 3 PCS PCB, it is more stable design.
8)this kinds inverter can take pump or lift, and other industrial use

MODEL		T1K	T3K	T5K	T10K	T15K	T20K		T30K	T60K	T100K
Power		1KW	3KW	5KW	10KW	15KW	20KW		30KW	60KW	100KW
Power Factor		0.8
Input	Phase	3 phase 4 wire and ground
	Voltage Range	380V± 20%(3 phase), phase voltage 220V
	Frequency Range	45 – 65Hz
	Rectifier	3 phase 6 pulses, 12 pulses is optional
Output	Phase	3 phase 4 wire and ground
	Wave form	Pure sine wave
	Crest Factor	3: 01
	Rated voltage	380/400/415V optional + -1% for static load, 5% for fluctuant load
	Phase voltage setting	200 - 244VAC, pls confirm when order
	Transient response	+/-5%, 10ms
	Frequency	50 / 60 Hz + / - 0.05%
	Total-harmonic distortion	< 3% linear load, < 5%( nonlinear load)
	Short circuit current	Short current for 0.1s (200% current)
	Overload capacity	Overload 125% for 10 Ms, 125%-150% for 1min. automatically resume when load become normal
Battery	Battery	Maintenance free lead-acid cell
	DC Voltage	48v or 96V(1-15KW)						384V
	Max Charge Current	6-30A adjustable
Bypass	Type	Static state + manual maintenance bypass
	Input Phase	3 phase 4 wire and ground
	Input voltage range	15% - 25% (the front control panel selectable)
	Transfer time	Inverter / bypass transfer switch time(Overload): 0ms inverter / bypass transfer switch time (fault inverter) 1ms
Efficiency	Whole unit	> 85%
	Inverter	91	91	92	92	93	93		95	95	95
Remote signaling		Dry contact (battery low, battery discharging, bypass/ fault); output 12Vdc/80mA, Optional parts
Communication interface		RS232 ( SNMP, modem optional )
Running temperature		0-40 degree Celsius
Relative Humidity		Less than 95% (without condensing)
Noise at 1 M		less than 60 dB
Degree of protection		IP20
Applicable Standards		EN50091-1-EMC EN50091-2liv. A
Product size(mm)		560230570		590470730		9006001380			12009001820
product weight(Kg)		30	40	54	104	125	190		380	690	800
Package size(mm)		640300730		690570850		11358101430			145011101880
Package weight(Kg)		32	50	60	123	145	215		420	750	860

Who we are?

Foshan Tanfon Energy Technology Co., Ltd is a professional manufacturer of green energy products with great commitment, contribution heart and responsibility.

What we do?

We are specialized in the R&D, manufacture and sale of the high quality environmental solar system, wind energy turbine, solar street light, solar pump and pure sine wave inverter, etc.

Now we are having the main series products as below:

1. Solar inverter

2. Solar controller(PWM and MPPT)

3. Portable solar system

4. Solar power system

5. Solar on grid system

6. Solar refrigerator system

7. Wind power system

8. Wind &solar hybrid system

9. Solar street light system

10. Solar air conditioner system

With these items as our weapons, we can fully supply the solutions for our clients' different needs.

We adhere to "quality first, users first" purpose, devoting ourselves everyday into setting up a suitable system for all of our clients.

How we do?

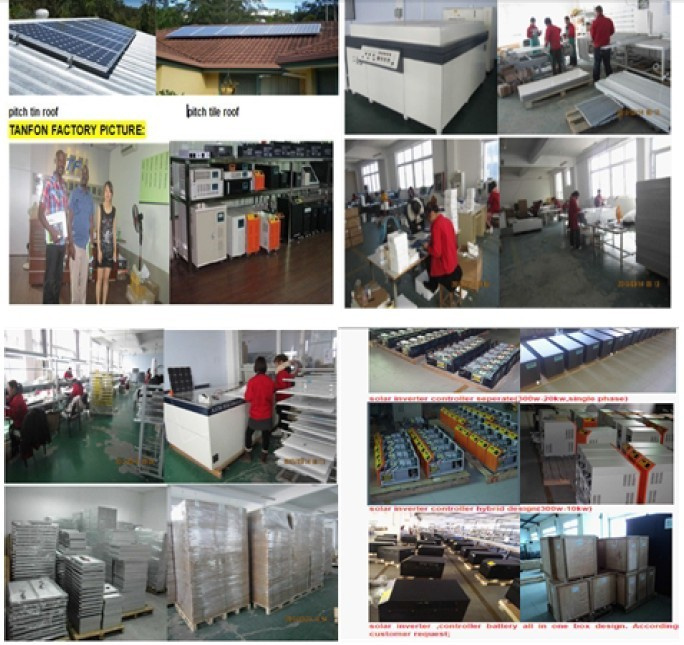

For the production, we have the professional production lines(Automatic series welding machine, EL test machine, Automatic frame machine, Special debug machine). Each step of production is under strict quality control. Our products are qualified with CE, RoHS, ISO certification.

For the service, we promise the quality. All products have the certain warranty and the new part would be shipped freely on time for service during the warranty. Also our company has started opening the factories in some countries, so it is very convenient to service you well at local.

Importantly, with a professional installation team, we have been to many countries(like Egypt, Bangladesh, Chad, Nigeria, Ghana, Doha, Pakistan) for installation service as well as win good feedback from the customers.

Specializing in installing projects from design, detailing, fabrication to erection, having continue cooperation with engineers, exclusive agents and the foreign business partners, we are now sincerely hoping to join hands with you to create a better future together at the principle of win-win cooperation.

Our Vision:

Tanfon create a solar kingdom for you

Our Mission:

Sincere, All-win, Unite, Aggressive.

Our Core Value:

100% Commitment 100% Contribution

100% Possibility 100% Time
