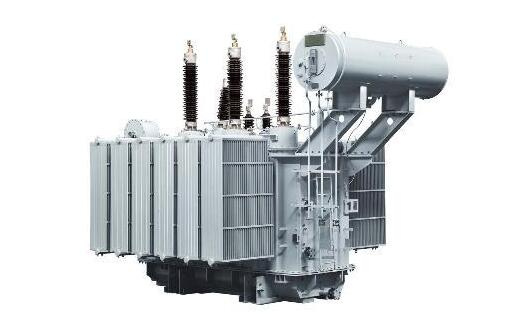

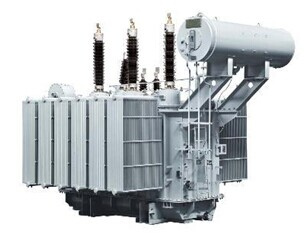

110kv Power Transformer

Name: 110kv Power Transformer
Brand: all-electronics-online.com
SKU: 732836205
Availability: InStock
Rating: 4.9 (128 reviews)

Price:	US $ 5000/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	110kv
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Series 1:	Sf11 3-Phase 2-Windling with on Load Tap Changer
Series 2:	S11 3-Phase 2-Winding with on Load Tap Changer
Series 3:	Sfz11 3-Phase 2-Winding with on Load Tap Changer
Series 4:	Sz11 3-Phase 2-Winding with on Loa
Application:	Power
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Multi-winding Transformer

Product Description

110KV power transformer

Technical parameters and features:

1.Low loss: No-load losses is about 40% lower than that required in current national standard GB6451-1999; Load losses is about 15% lower than that required in current national standard GB6451-1999

2.Low Noise level: < 60dB, about 20dB lower than that in the national standard

3.Low particle discharge: The full range process of 110kV product is dust-free operation; Metal parts and insulation parts inside the transformer are all rounded; The partial discharge is controlled to be lower than 100pc

4.High Short-circuit capacity: The independently designed and manufactured SZ10-40000/110 transformer of the Company has passed the Short-circuit test of the National Transformer Quality Test & Inspection Center (CTQC)

5.Beautiful appearance: Oil tank bending corrugated structure, shot blasting de-dusting, powder EFI paint, wide fin radiator, never fade in color

6.No leakage: All seal with limit position and upper & lower tank edges are sealed along two channels; Sealing gasket is imported. We solemnly commit no leakage of oil.

SF11 series 110KV 3-phase 2-winding power transformer with on load tap changer.technical parameter1

Model	Rated capacity (KVA)	Rated voltage(KV)		Vector group	No-load losses (KW)	Load losses (KW)	No-load current	Short-circuit impedance ( %)
Model	Rated capacity (KVA)	HV	LV	Vector group	No-load losses (KW)	Load losses (KW)	No-load current	Short-circuit impedance ( %)
SF11-6300/110	6300	110±2×2.5% 121±2×2.5%	6.3 6.6 10.5 11 20	YNd11	6.5	34	0.3	10.5
SF11-8000/110	8000				7.5	42	0.3
SF11-10000/110	10000				9	50	0.3
SF11-12500/110	12500				10.5	59	0.3
SF11-16000/110	16000				13	73	0.3
SF11-20000/110	20000				16	88	0.25
SF11-25000/110	25000				18	104	0.25
SF11-31500/110	31500				20	123	0.25	10.5(12)
SF11-40000/110	40000				24	148	0.25	10.5(14)
SF11-50000/110	50000				28	180	0.2	10.5(4,17)
SF11-63000/110	63000				35	220	0.2
SF11-75000/110	75000		13.8 15.75 18 20		40	260	0.2
SF11-90000/110	90000				45	285	0.15	10.5(17)
SF11-12000/110	120000				65	365	0.15
SF11-15000/110	150000				75	420	0.15
SF11-18000/110	180000				85	490	0.15
