| Prod Model: |
110BYGH450A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 110mm Diameter: |
120mm Length |
| Type: |
Electromechanical |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Operate Mode: |
The Three Single Phase |
| Brand: |
Jh |
| Speed: |
800 |
| Function: |
Motor |
Product Description
Basic Inform
Model NO:110BYGH450A
type:Electromechnical
Number of statro: two-phase
Excitation Mode:HB-Hybrid
Export Markets:Global
..............................................................................................................................................
Product Features

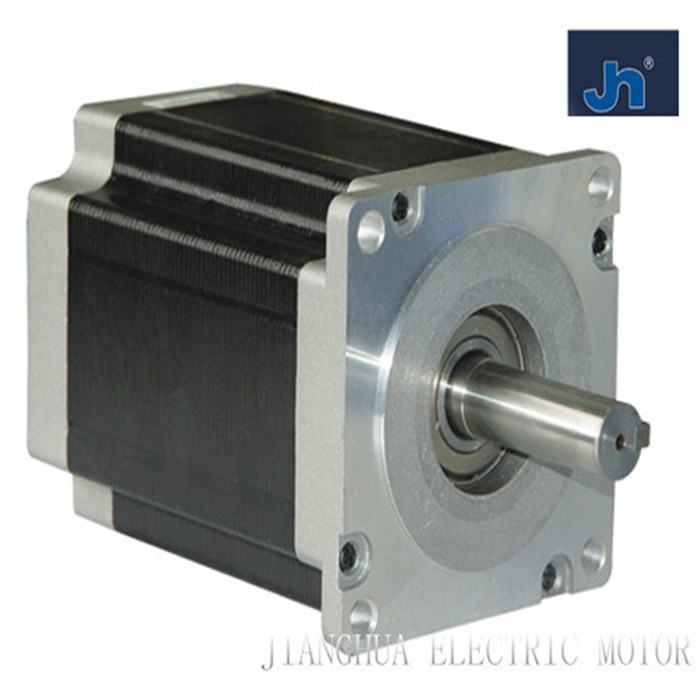

This massive bipolar stepper with single shaft has a 1.8° step angle and over 200
kg·cm of torque at high speeds.
...............................................................................................................................................................................................
Product Description
This NEMA-42 motor generates 220 kg-cm of holding torque at 6 Amps . It comes with the
single shaft.1.8 degree Size 110mm Hybrid stepper motor. 3D Printer stepper motor ,86mm size stepper motor, NEMA42stepping motor, Small stepping motors, 2 phase 86mm stepper motor, Stepper motor 110mm size
...............................................................................................................................................
Product Specifications
Motor Properties
Motor Type Bipolar Stepper
Manufacturer Part Number:110BYGH450A
Step Angle 1.8°
Step Accuracy ± 5 %
Holding Torque 220kg.cm
Rated Torque 150kg.cm
Maximum Speed 800RPM
...............................................................................................................................................
Electrical Properties
Recommended Voltage 30 V DC
Coil Resistance 900 mΩ
Rated Current (Series Wiring)6 A
Rated Current (Parallel Wiring)8 A
Phase Inductance 10 mH
..............................................................................................................................................
Physical Properties
Shaft Diameter 19 mm
motor length: 120mm
Mounting Plate Size NEMA - 42
Weight 8.5kg
Number of Leads 4 or 6
Wire Length 600mm
...............................................................................................................................................
Applications:
Use for robots stepper motor, electronic automatic equipment stepping motor, medical instrument stepping motor, advertisementing instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor. CNC router stepper motor.
