| Prod Model: |
Cosmos Star Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase&Waveform: |
Single Pahse&Pure Sine Wave |
| Frequency Range: |
48-54Hz/58-64Hz |
| Transfer Time: |
10ms |
| Max Ouput Current: |
15A |
| Application: |
Upsen |
Product Description

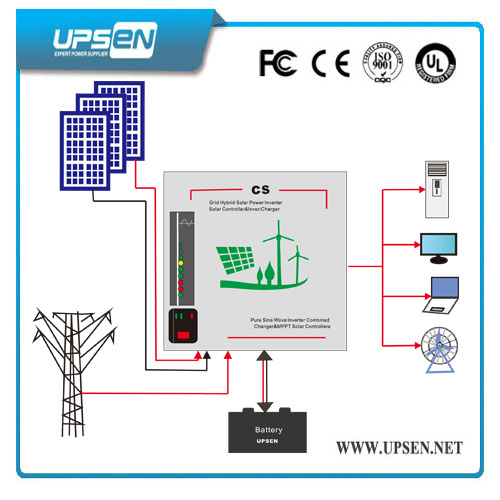

110VAC/120VAC 5000W 6000W Off-Grid Solar Inverters with Remote Control
Solar Inverter Controller All in one Cosmos Star Series 1000W-6000W (1ph in/1ph out)
Key Features:
1: Professional off grid solar system solution, which is a combination of big power inverter and solar controller
2: Working modes switches automatically- AC Grid bypass mode, inverter mode, AC Charging mode, solar charging mode
3: High converting efficiency higher than 97%
4: AC Grid priority & battery priority working mode as selectable
5: MPPT solar charger(optional)
6: Four stages smart charging, charging current adjusted automatically
7: DIP switch optional: Selectable charging voltage for various battery type
8: Remote control & RS232 communication port
9: Professional solution for offogrid solar system
10: AC grid mode: AC Bypass supplies load when AC is normal, battery invert AC supplies load when AC is off
11: Capable of connecting additional DC load for wider applications
12: LCD&LED Screen for option
13:It adopts dynamic VI MPPT and optimized pure sine wave PWM control, with fast response and good stability
14. Easy to install & easy to operate & easy to solve
Technical Specification
| Mode NO. | CS600 | CS1000 | CS2000 | CS3000 | CS4000 | CS5000 | CS6000 |
Rated Power |
600W |
1000W |
2000W |
3000W |
4000W |
5000W |
6000W |
AC INPUT |
Phase&Waveform |
Single pahse&Pure Sine Wave |
Voltage |
110VAC/120VAC/220VAC/230VAC/240VAC |
Fequency |
50HZ/60HZ(Auto adjust) |
Voltage range |
95-127VAC/194-253VAC |
Frequency range |
48-54HZ/58-64HZ |
AC Output |
Waveform |
Pure Sine wave and single phase |
Voltage |
110VAC/120VAC/220VAC/230VAC/240VAC |
Frequency |
50HZ/60HZ |
Peak Power |
1800W |
3000W |
6000W |
9000W |
12000W |
15000W |
18000W |
Battery |
|
Battery DC |
12/24VDC |
12/24VDC |
12/24/48VDC |
24/48VDC |
MAX charging cunrrent |
&n, bsp; 20A-75A |
Battery type |
&n, bsp; GEL,AGM,Sealed lead acid |
MPPT Controller |
|
PV Input |
15-30VDC For 12VDC/30-55VDC For 24VDC |
MAX charging cunrrent |
20/30/40/50/60AMP |
MAX Ouput current |
15A |
for DC laod |
Transfer efficiency |
|
MPPT efficiency |
more than 95% |
Line Mode |
more than 95% |
Battery Mode |
more than 85% |
Power Saver |
Available when load is less than 50A |
Transfer time |
10ms |
Indicator |
|
7-LED Indicators |
Left to right:1.Line Mode(Green),2.Inverter Mode(Green),Charging Mode(Yellow),4.Full Charged(Green), |
5.Over Temp(Red),6.Over Load(Red),7.Saving Mode(Green) |
2-LED Indicators on MPPT |
Power/CHG Mode |
Dimension |
486*400*181mm |
486*432*181mm |
Weight |
22KG |
26KG |
28KG |
33KG |
45KG |
52KG |
56KG
|
