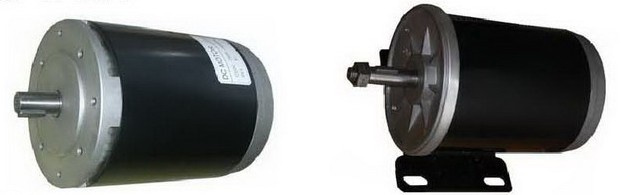

114zyt 12VDC 1.1n. M 322W DC Motor

Name: 114zyt 12VDC 1.1n. M 322W DC Motor
Brand: all-electronics-online.com
SKU: 613099674
Availability: InStock
Rating: 4.8 (117 reviews)

Price:	US $ 31.76-40/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	114ZYT145-1232
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	114zyt145-1232
Voltage:	12VDC
Current:	35A
Rated Torque:	1.1n.M
Rated Speed:	2800rpm
Power:	322W
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Type:	Zyt
Certification:	SGS
Brand:	Sunrise Motor

Product Description

PMDC MOOR 114ZYT
Model: 114ZYT114-1232
Voltage: 12VDC
Rated speed: 2800rpm
No-load speed:3300rpm
Rated torque: 1.1N.m
Rated current: 35A
Power: 322W
Length: 145mm

Special motors can be customized per your requirements.
Encoder and gear box can be fixed.

Model	Voltage (V DC)	No Load		Rated Load			Length (mm)
Model	Voltage (V DC)	Current (A)	Speed (r/min)	Torque (N. m)	Current (A)	Speed (r/min)	Length (mm)
114ZYT145-1232	12	2.8	3300	1.1	35	2800	145
114ZYT155-4840	48	1.8	4000	1.7	16	3500	155
114ZYT165-4845	48	1.8	4500	2.6	28	4000	165
114ZYT170-1218	12	3	1800	2.0	32	1500	170
114ZYTF155-4818	48	1.2	1800	3.4	15	1500	155
114ZYTF165-4845	48	1.8	4500	2.6	29	4000	165

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
