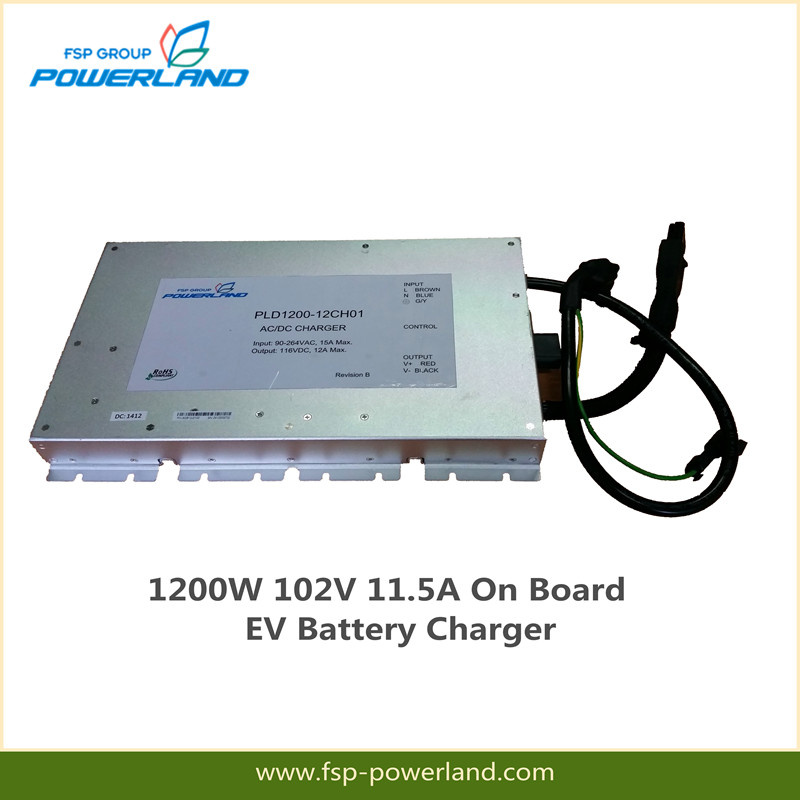

1200W 102V 11.5A on Board EV Battery Charger

Name: 1200W 102V 11.5A on Board EV Battery Charger
Brand: all-electronics-online.com
SKU: 799897995
Availability: InStock
Rating: 5 (76 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD1200-EVCC01-116
Output Power:	1200W
Color:	Black
Warranty:	5 Years
Output Voltage:	102VDC
ODM:	Accepted
Type:	Lithium Ion Battery Charger
Charging Type:	Electric Charger
Principle:	PWM

Product Description

1200W 102V 11.5A On Board EV Battery Charger

Features
Three times life
Fully enclosed design with IP67
Low temperature start up:-25ºC
High temperature full load operation:80ºC(Case)
Universal AC Input/Full Rang:90~264Vac
Efficiency up to 92.5%
All-around protections:OVP,OCP,SCP,OTP.UVLO
Redundant operation
For high performance E-motors
RoHS Compliant
5 Year Warranty

Specifications

Models	PLD1200-12CH01
AC Input
Input Voltage	90~264Vac
Input Frequency	47~63Hz
Input Current(Max)	14.0A
Power Factor(Min)	0.98
DC Output
Output Current	11.5A
Output Voltage	70~116V
Output Power	1334W
Efficiency(typ)	94%
Operating
Operating Case Temperature	-23~85ºC
Storage Temperature	-40~85ºC
Cooling	Free Air Cooling
Waterproof	IP64/67
Communication Bus	CAN
Reliability
Protections	Over Voltage,Over Temperature,Short Circuit,Open Circuit
MTBF	200,000 hours at full load,25ºC ambient temperature
Life time	500,000 hours at full load,50ºC ambient temperature
Mechanical
Dimensions	375x248x44mm
Safety & EMI
Input/Output Insulation	3000Vac
Surge Immunity	2kV DM,4kV CM
Safety Standard	EN60950-1,UL60950-1,GB4943-1
EMI	EN55022 Class A
Immunity	EN61000-3-4,3;EN61000-4-2,3,4,5,6,8,11

*Unless otherwise noted,spec is based on 230Vac input,full load,and 25ºC ambient temperature
**Based on 115Vac input,full load,and 25ºC ambient temperature
